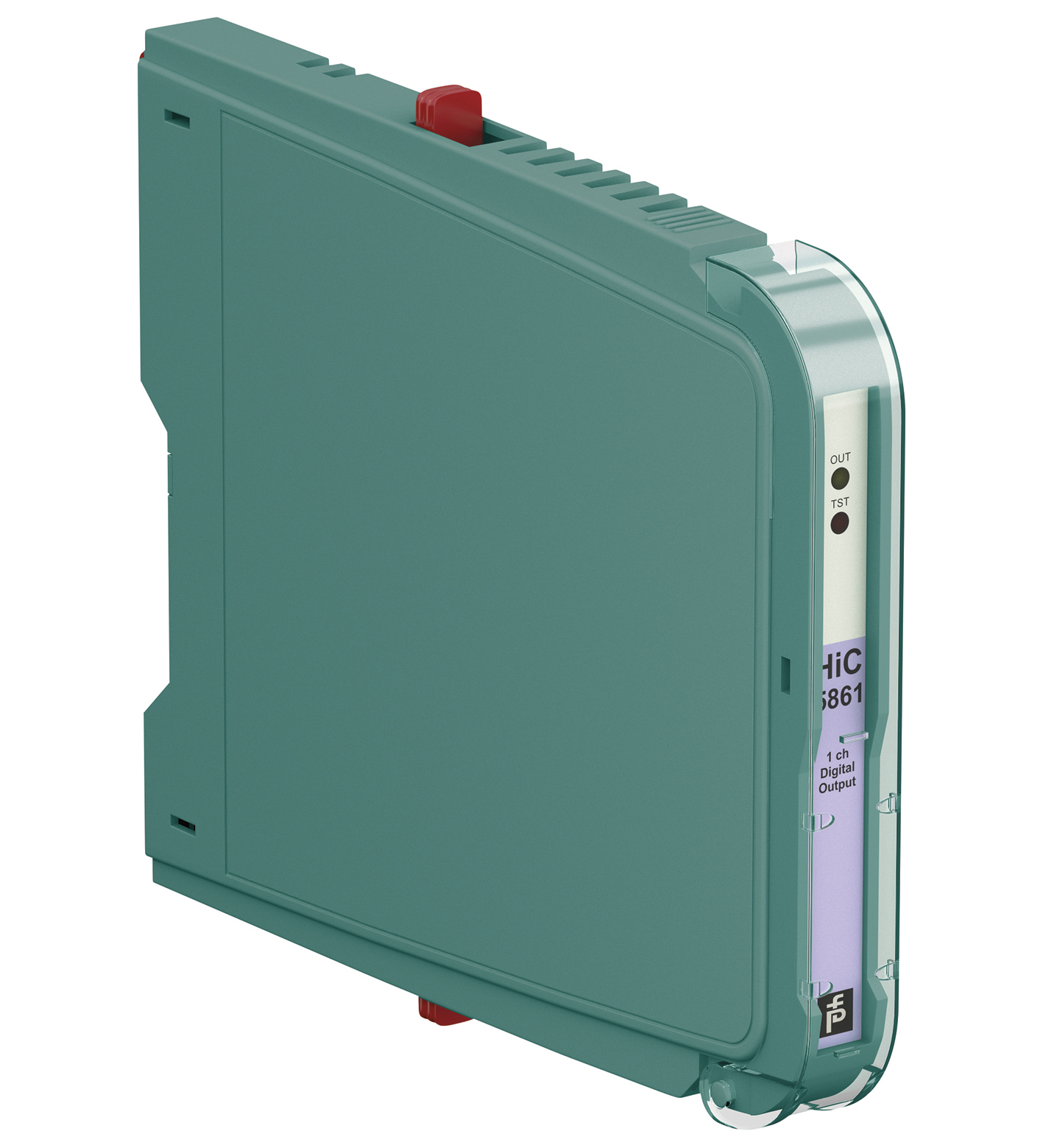

HiC5861
Relay Module. 1-channel signal conditioner, 24 V DC supply (loop powered), Logic input 19 V DC ... 27.6 V DC, Relay contact output for de-energized to safe function, Test pulse immunity, Up to SIL 3 a...
Relay Module. 1-channel signal conditioner, 24 V DC supply (loop powered), Logic input 19 V DC ... 27.6 V DC, Relay contact output for de-energized to safe function, Test pulse immunity, Up to SIL 3 acc. to IEC/EN 61508, Up to PL e acc. to EN/ISO 13849, Housing width: 12.5 mm, Number of channels: 1-channel, DTS function (de-energized to safe), Safety Integrity Level (SIL): SIL 3, Rated voltage: 19 ... 30 V DC loop powered, Type: 1 x logic input, Type [2]: 1 x test input, Type [3]: field device supply. Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Connection: loop powered. Rated voltage: 19 ... 30 V DC loop powered. Power dissipation: < 1.3 W. Power consumption: < 1.3 W. Connection side: control side. Connection: Input SL1: 8a(+), 7a(-) ; test input SL1: 3a(-), 3b(+), 4a(+), 4b(+). Pulse/Pause ratio: 150 ms / 150 ms. Test pulse length: max. 4 ms from DO card. Test input: see functional safety manual. Signal level: 0-signal: -5 ... 5 V 1-signal: 19 ... 27.6 V. Rated voltage: 19 ... 27.6 V loop powered. Rated current: 0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card). Connection side: field side. Connection: SL2: 5a, 5b. Contact loading: 30 V DC/1 A resistive load. Minimum switch current: 10 mA / 24 V DC. Energized/De-energized delay: 150 ms / 150 ms. Mechanical life: 2 x 107 switching cycles. Fuse rating: 1.5 A. Switching frequency: < 3 Hz. Input/Output: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 253 Veff. Output/Output: reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 253 Veff. Display elements: LEDs. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Machinery Directive: . Directive 2006/42/ECEN 62061:2005 , EN/ISO 13849-1:2008: . Directive 2006/42/EC: EN 62061:2005 , EN/ISO 13849-1:2008. Electromagnetic compatibility: NE 21:2012 , EN 61326-3-1:2008 , EN 61326-3-2:2008. Degree of protection: IEC 60529:2013. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) Observe the temperature range limited by derating, see section derating.. Degree of protection: IP20. Mass: approx. 100 g. Dimensions: 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D). Height106 mmWidth12.5 mmDepth128 mm: . Height: 106 mm. Width: 12.5 mm. Depth: 128 mm. Mounting: on termination board. Coding: no pin trimmed For further information see system description.. Certificate: PF 17 CERT 4192 X. Marking II 3G Ex nC ec IIC T4 Gc: . Marking: II 3G Ex nC ec IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-15:2010. UL approval: E106378. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
