Pepperl Fuchs

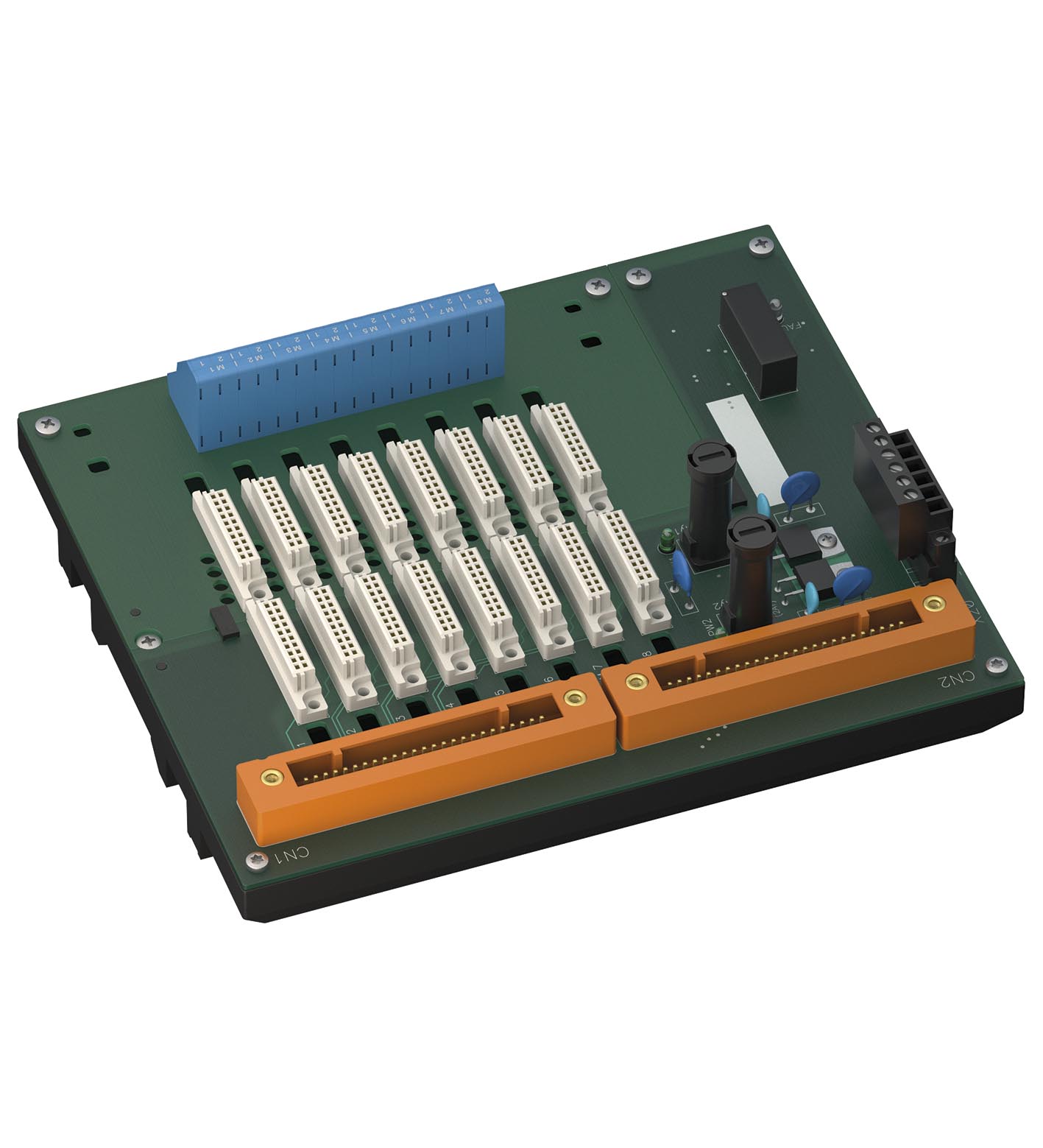

HiCTB08-YRS-RRB-AK-CC-DO08

Termination Board. System board for Yokogawa ProSafe-RS, For 8-channel DO card SDV531, For 8 modules, Recommended module: HiC2871 (DO), 24 V DC supply, Hazardous area: spring terminals, blue, Non-hazardous area: Yokogawa system connector, 50-pin, Number of modules: 8, Signal type: Digital Output, Manufacturer: Yokogawa, Control system type: ProSafe-RS. Connection: X20: terminals 3, 5(+); 4, 6(-). Nominal voltage: 24 V DC , in consideration of rated voltage of used isolators. Voltage drop: 0.9 V , voltage drop across the series diode on the termination board must be considered. Ripple: ≤ 10 %. Fusing: 2 A , in each case for 8 modules. Power dissipation: ≤ 500 mW , without modules. Reverse polarity protection: yes. Supply: Redundancy available. The supply for the isolators is decoupled, monitored and fused.. Connection: X20: terminals 1, 2. Output type: volt-free contact. Switch behaviour: no fault: relay contact closed power supply fault: relay contact open. Contact loading: 30 V DC , 1 A. Display elements: LEDs PWR ON (Termination Board power supply)- LED power supply I, green LED- LED power supply II, green LED LED FAULT (fault indication), red LED- LED flashes: power supply fault. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017For further information see system description.. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP20. Connection: . Field sideexplosion hazardous area: spring terminals , blueControl sidenon-explosion hazardous area: Yokogawa system connector, 50-pinSupplypluggable screw terminals , blackFault outputpluggable screw terminals , black: . Field side: explosion hazardous area: spring terminals , blue. Control side: non-explosion hazardous area: Yokogawa system connector, 50-pin. Supply: pluggable screw terminals , black. Fault output: pluggable screw terminals , black. Core cross section: spring terminals: rigid: 0.2 ... 2.5 mm2 flexible: 0.25 ... 1.5 mm2. Material: housing: polycarbonate. Mass: approx. 485 g. Dimensions: 205 x 175 x 153 mm (8.1 x 6.9 x 6.02 inch) (W x H x D) , depth including module assembly. Height175 mmWidth205 mmDepth153 mm: . Height: 175 mm. Width: 205 mm. Depth: 153 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. EU-type examination certificate: CESI 06 ATEX 022. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Non-hazardous area: . Maximum safe voltage250 V (Attention! Um is no rated voltage.): . Maximum safe voltage: 250 V (Attention! Um is no rated voltage.). Galvanic isolation: . Field circuit/control circuitsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Field circuit/control circuit: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 50303:2000. IECEx approval: . IECEx certificateIECEx CES 06.0003IECEx marking[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I: . IECEx certificate: IECEx CES 06.0003. IECEx marking: [Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
