HiD-ADP-HiC-DO

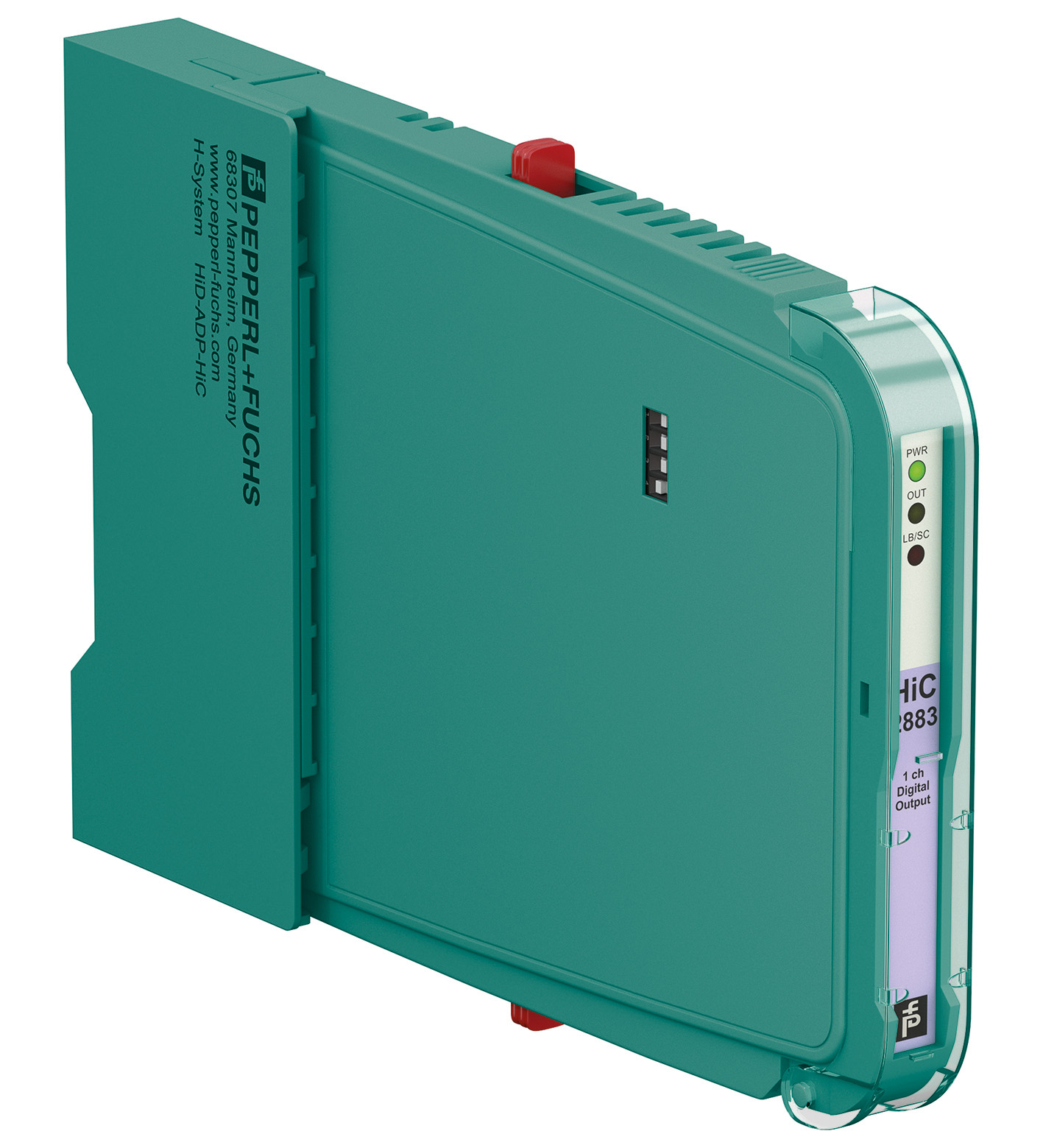

Adapter Set for HiD Termination Board. Set consisting of isolated barrier HiC2883 and adapter HiD-ADP-HiC, 1-channel isolated barrier, 24 V DC supply (bus or loop powered), Output 45 mA at 12 V DC, Li...

Adapter Set for HiD Termination Board. Set consisting of isolated barrier HiC2883 and adapter HiD-ADP-HiC, 1-channel isolated barrier, 24 V DC supply (bus or loop powered), Output 45 mA at 12 V DC, Line fault transparency (LFT), Test pulse immunity, For HiD Termination Board mounting, Up to SIL 3 acc. to IEC/EN 61508, Signal type: Digital Output, Safety Integrity Level (SIL): SIL 3. Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Rated voltage: 19 ... 30 V bus powered via Termination Board 19 ... 30 V loop powered via input , reverse polarity protected. Input current: 75 mA at 24 V, 270 Ω load. Power dissipation: 1.3 W at 24 V, 270 Ω load. Connection side: control side. Signal level: loop powered 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC bus powered 1-signal: 15 ... 30 V DC (current limited to 5 mA)0-signal: 0 ... 5 V DC. Rated current: 0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card). Inrush current: < 200 mA , 10 ms loop powered. Connection side: field side. Output type: open collector transistor (internal fault bus). Display elements: LEDs. Control elements: DIP switch. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUsee datasheet of isolated barrier: . Directive 2014/30/EU: see datasheet of isolated barrier. Electromagnetic compatibility: see datasheet of isolated barrier. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Mass: approx. 160 g. Dimensions: 18 x 106 x 168 mm (0.7 x 4.2 x 6.6 inch) (W x H x D). Mounting: on termination board. EU-type examination certificate: see datasheet of isolated barrier. FM approval: see datasheet of isolated barrier. UL approval: see datasheet of isolated barrier. IECEx approval: . IECEx certificatesee datasheet of isolated barrier: . IECEx certificate: see datasheet of isolated barrier. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
