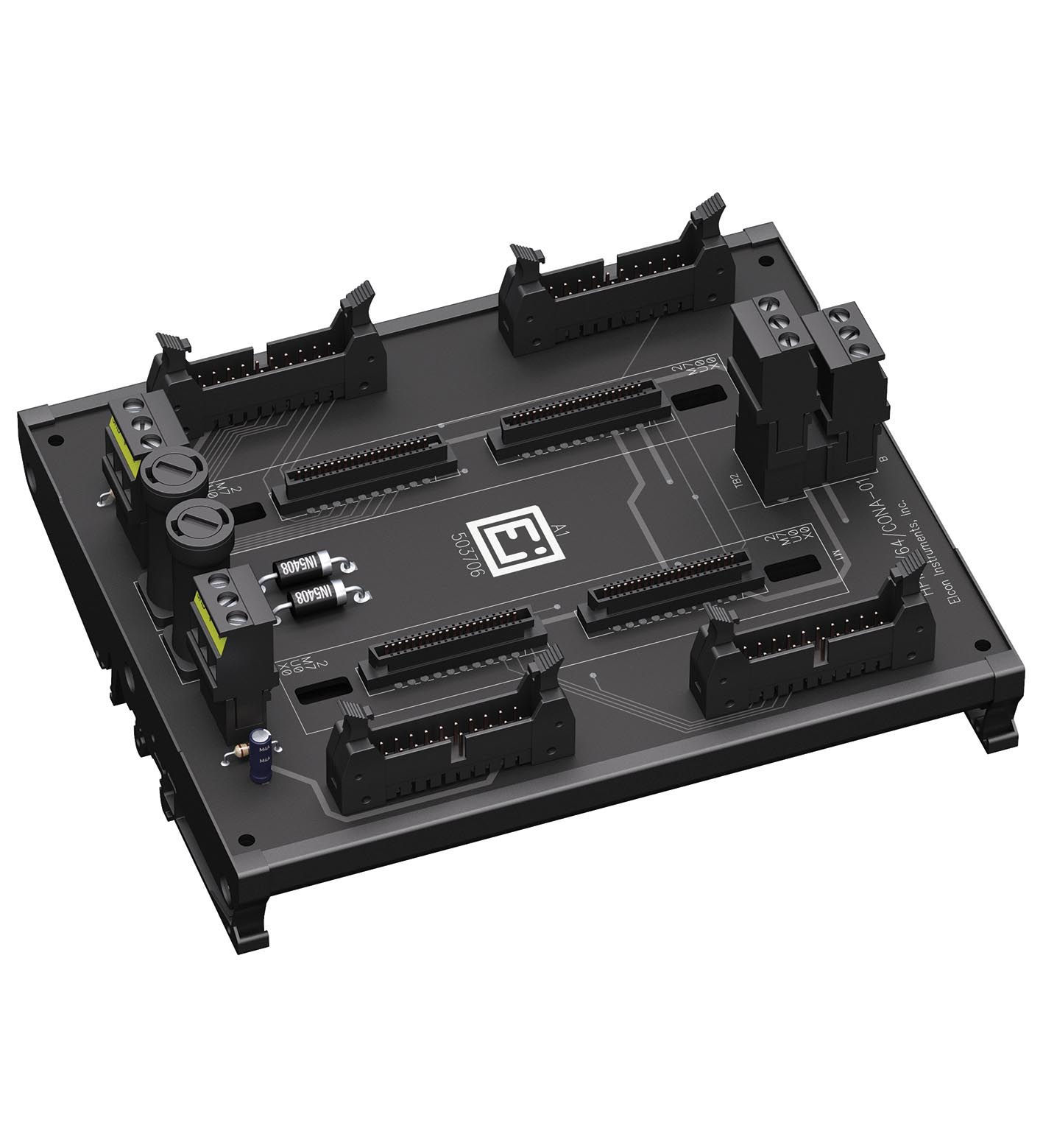

HiSHPMM/64/CONA-01

HART Termination Board. 64-channel, 24 V DC supply, Connection of two Multiplexers to HART enabled Honeywell TDC 3000 FTA's , Redundant power supply connections, Dual RS 485 connections, HART loop con...

HART Termination Board. 64-channel, 24 V DC supply, Connection of two Multiplexers to HART enabled Honeywell TDC 3000 FTA's , Redundant power supply connections, Dual RS 485 connections, HART loop connection via four 20-pin flat ribbon connectors, Compact design, Number of channels: 64 unbalanced signal loops. Rated voltage: 24 V DC. Fusing: 2 A , 5 x 20 mm (0.2 x 0.8 inch). Power dissipation: 0.7 W , with Multiplexer. Reverse polarity protection: yes. HART signal channels: . Number of channels64 unbalanced signal loops: . Number of channels: 64 unbalanced signal loops. Supply: yes. HART signal channels: 30 V DC. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). Relative humidity: 5 ... 90 %, non-condensing. Core cross section: 2.5 mm2 (16 AWG). Connection: HART loop interface: connectors depending on versionRS-485 interface: removable screw terminalspower: removable screw terminals. Mass: approx. 500 g. Dimensions: 152 x 121 x 142 mm (6 x 4.75 x 5.6 inch) (W x H x D) , depth including module assembly with HiDMux2700. Height121 mmWidth152 mmDepth142 mm: . Height: 121 mm. Width: 152 mm. Depth: 142 mm. Mounting: DIN rail mounting. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
