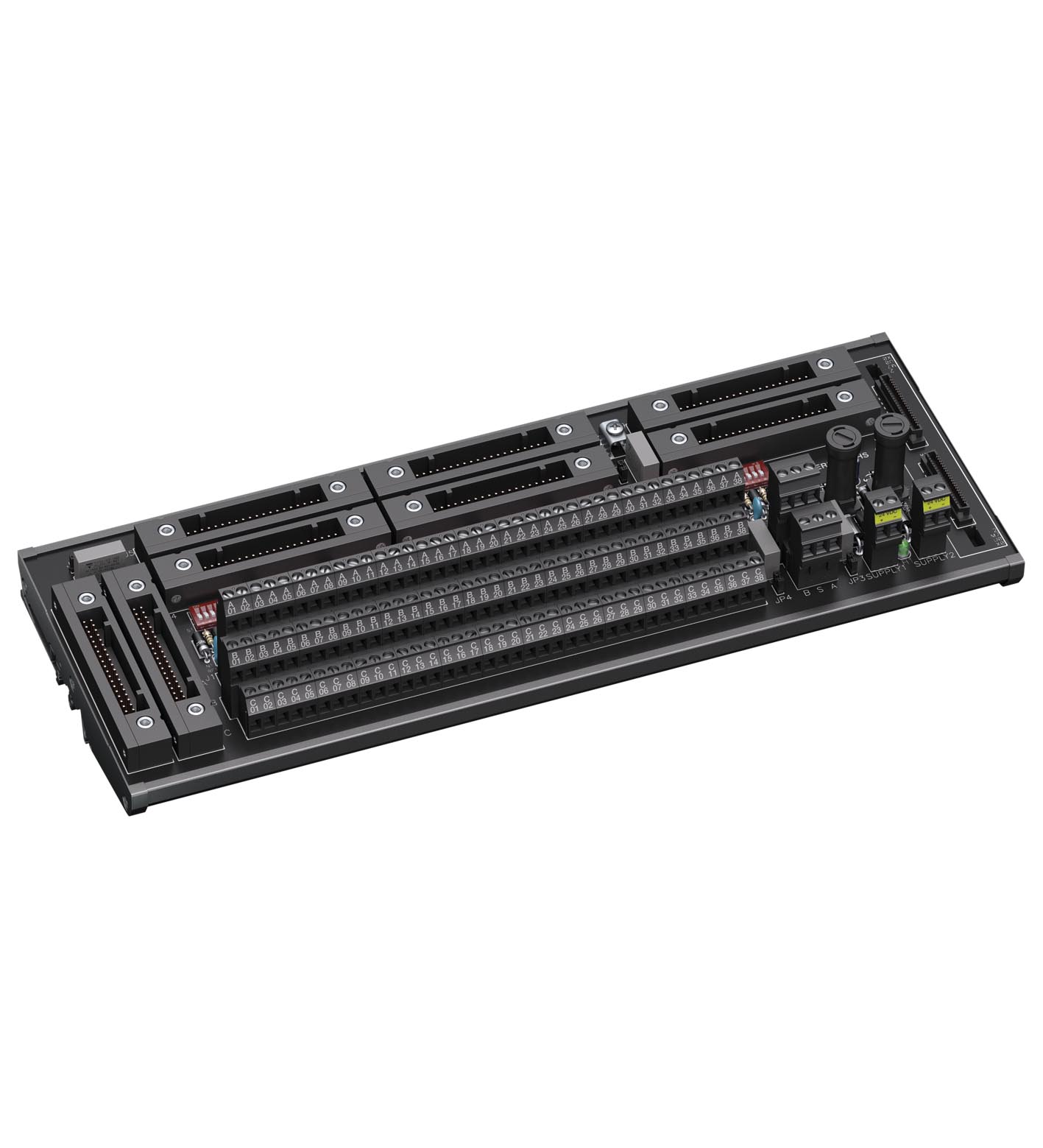

HiSHPTB/32/YOK-AI-R-02

HART Termination Board. Yokogawa Centum 3000 CS AAI135 replacement FTA, 32 channels of I/O, 2- or 3-wire or self powered transmitters, Short-circuit protected, Plug-n-play wiring capabilities, Number...

HART Termination Board. Yokogawa Centum 3000 CS AAI135 replacement FTA, 32 channels of I/O, 2- or 3-wire or self powered transmitters, Short-circuit protected, Plug-n-play wiring capabilities, Number of channels: 32 unbalanced signal loops. Rated voltage: 20 ... 30 V DC. Fusing: 3.15 A , 5 x 20 mm (0.2 x 0.8 inch). Power dissipation: 0.7 W , with Multiplexer. Reverse polarity protection: no. HART signal channels: . Number of channels32 unbalanced signal loops: . Number of channels: 32 unbalanced signal loops. Supply: no. HART signal channels: 30 V DC. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Relative humidity: 5 ... 90 %, non-condensing. Core cross section: 2.5 mm2 (16 AWG). Connection: field side: screw terminalscontrol side: KS connector (proprietary)RS 485 interface: removable screw terminalspower: removable screw terminals. Mass: approx. 500 g. Dimensions: 330 x 107 x 208 mm (12.9 x 4.2 x 8.2 inch) (W x H x D) , depth including module assembly with HiDMux2700. Height107 mmWidth330 mmDepth208 mm: . Height: 107 mm. Width: 330 mm. Depth: 208 mm. Mounting: DIN rail mounting. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
