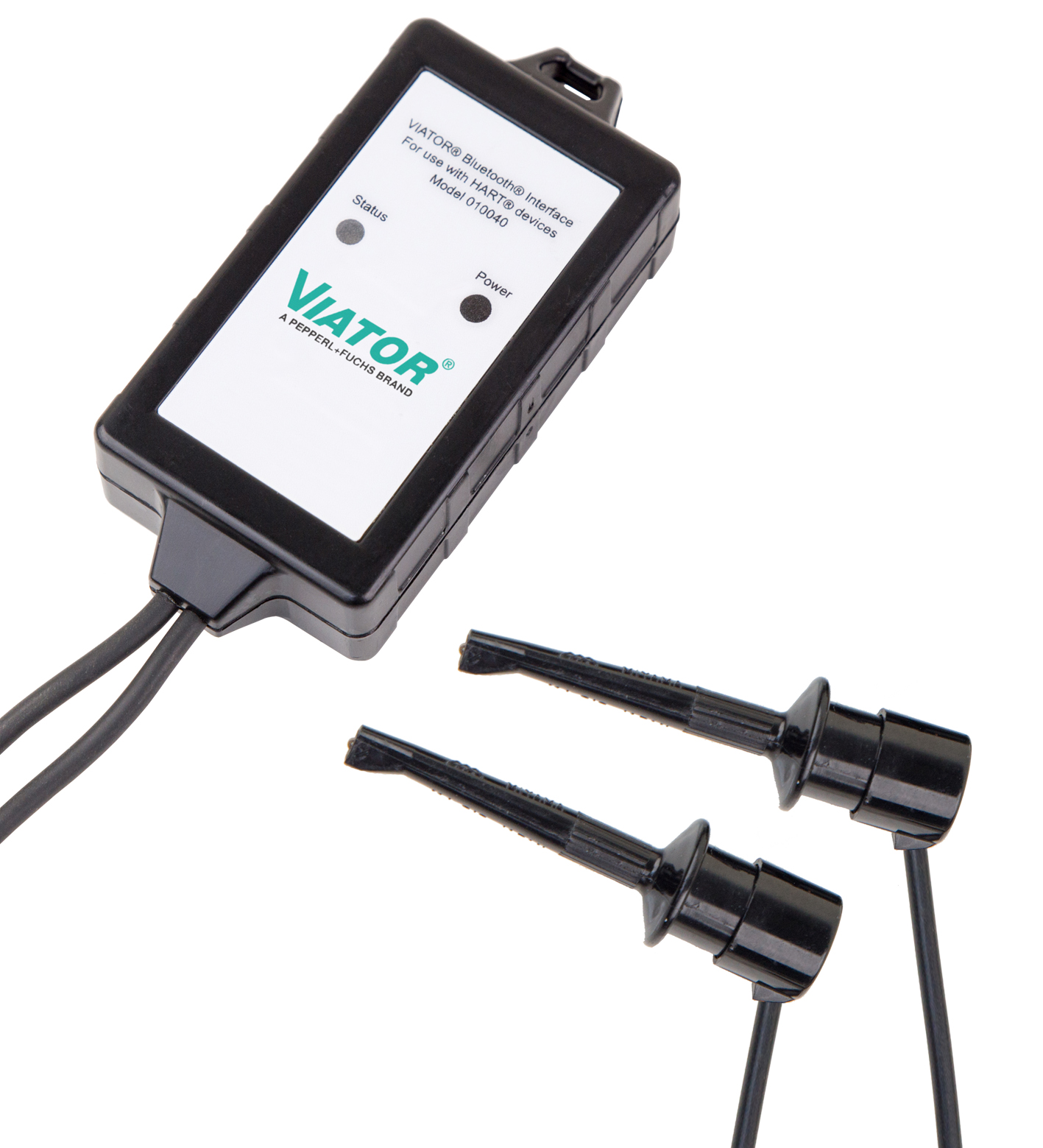

HM-MT-BT-GP-010040
Viator Bluetooth HART Interface. Interface for wireless communication between PC host and HART field devices, Interface for wireless communication between PC host and any HART field device, Registered...
Viator Bluetooth HART Interface. Interface for wireless communication between PC host and HART field devices, Interface for wireless communication between PC host and any HART field device, Registered with HART Communication Foundation, Powerful, high-speed Bluetooth with 100 m open-air range, Adaptive frequency hopping to reduce radio-frequency interference, HARTCommDTM software supports use with FDT Frame applications, Compatible with 32- and 64-bit Windows® 7, 8, XP, 10, or Vista. Battery type: 3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03. Operating duration: approx. 20 h (continuous operation). Physical: Bluetooth v2.0, Class 1, EDR. Transmitter frequency: 2402 ... 2480 MHz (Bluetooth). Transmitter radiated power: 18 dBm. Detection range: 100 m in air. Antenna: integrated omnidirectional. Signal: HART-compliant trapezoidal wave at 1200/2200 Hz. Radio and telecommunication terminal equipment: . Directive 2014/53/EUEN 300 328 V2.1.1 , EN 301 489-17 V3.1.1: . Directive 2014/53/EU: EN 300 328 V2.1.1 , EN 301 489-17 V3.1.1. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Hardware requirements: any PC, PDA, laptop, or other computer with Bluetooth capability. Operating system: Windows® , Windows Mobile® or any OS that supports Bluetooth COM port. FCC approval: FCC Part 15 B , FCC ID: T9J-RN41-3. IC approval: ICES-003 , IC ID: 6514A-RN413. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: 0 ... 95 % non-condensing. Degree of protection: IP20. Connection: HART I/O Interface cable , 0.5 mm² (20 AWG) fine-strand , termination test clips. Material: Polycarbonate. Dimensions: 88 mm x 42 mm x 19 mm. Height19 mmWidth42 mmLength88 mm: . Height: 19 mm. Width: 42 mm. Length: 88 mm. Cable length: 0.5 m. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
