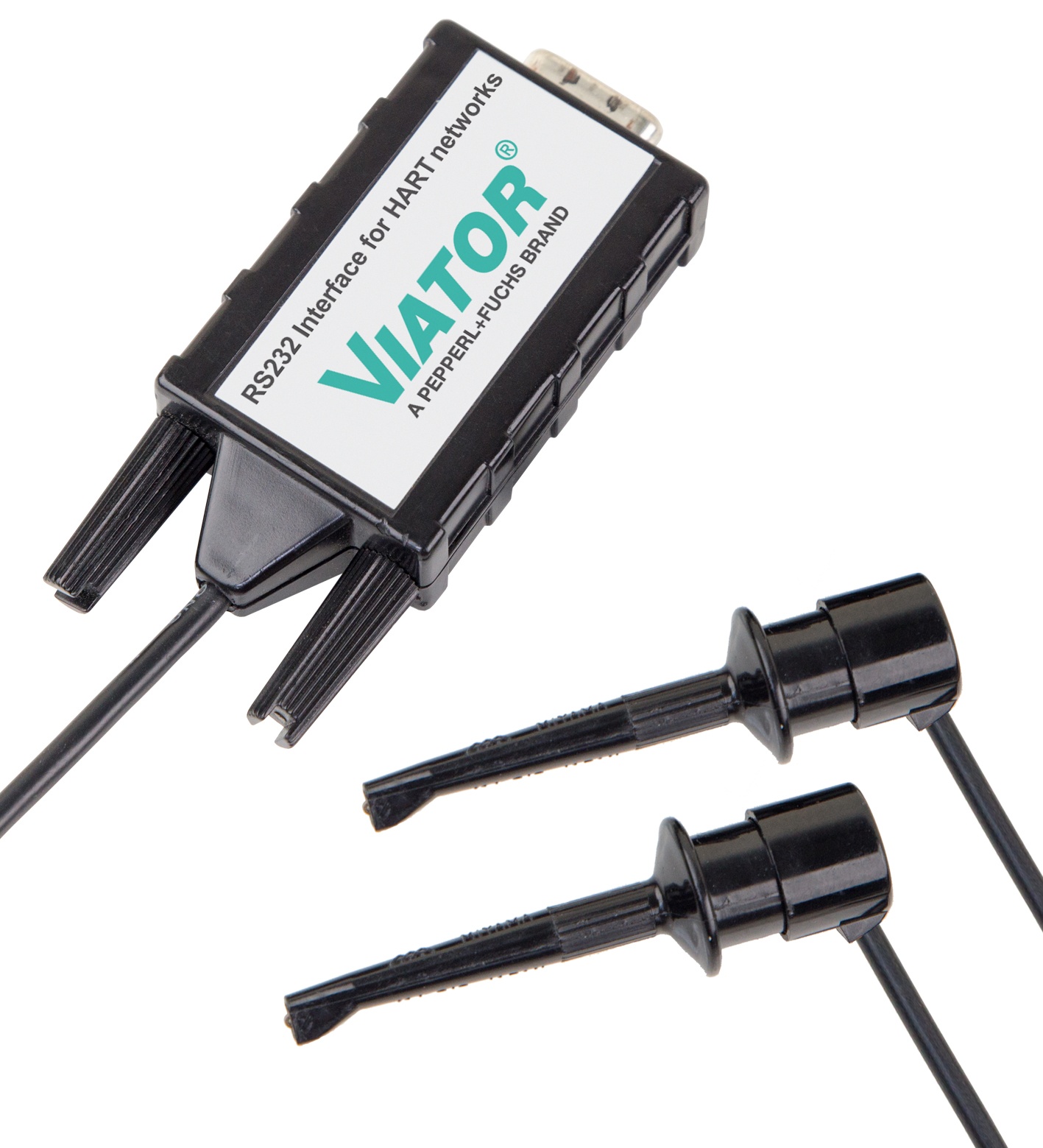

HM-PF-RS232-010001

Viator RS-232 HART Interface. Interface for communication with HART field devices, HART compliant for communication with any HART field device and error-free slave testing, Easy installation, Draws po...

Viator RS-232 HART Interface. Interface for communication with HART field devices, HART compliant for communication with any HART field device and error-free slave testing, Easy installation, Draws power from RS-232 port, needs no external supply to power modem, Compact, rugged polycarbonate housing for industrial-grade reliability, Polarity insensitive test clips, Transformer isolation allows you to connect the interface across the load resistor or the field device, Compatible with 32- and 64-bit Windows® XP, Vista, 7 and 10. Input current: 4 mA. Power supply: 4 ... 12 V powered by DTR and RS-232 inputs No external power required. Interface type: RS-232 port. Signal: 0.5 ± 0.1 Vpp trapezoidal wave at 1200/2200 Hz. Output/interface: 1500 V DC. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 62368-1:2014-08: . Directive 2014/30/EU: EN 61326-1:2013 EN 62368-1:2014-08. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating system: Operating system that supports serial COM port. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: 0 ... 95 % non-condensing. Degree of protection: IP20. Connection: DB-9 connector , 2-pin polarity-insensitive test clips. Material: Polycarbonate. Dimensions: 49 mm x 33 mm x 15 mm. Height15 mmWidth33 mmLength49 mm: . Height: 15 mm. Width: 33 mm. Length: 49 mm. Cable length: 1.8 m 2-strand wire terminating in 2 test clips. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
