Pepperl Fuchs

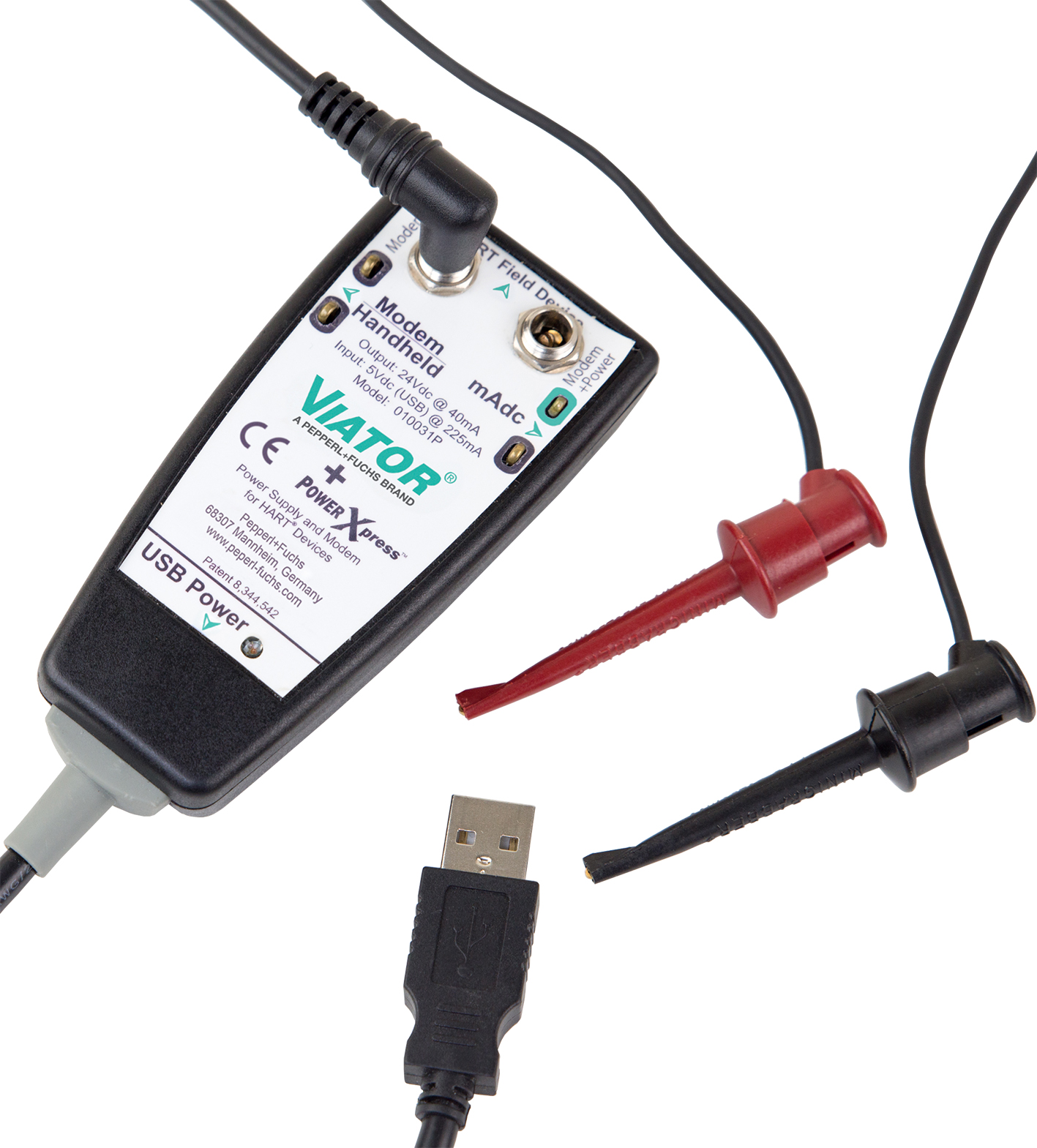

HM-PF-USB-PWRX-010031P

Viator USB HART Interface with PowerXpress. Interface for commissioning, calibrating, and acquiring data from HART field devices, Quickly power and communicate with HART field devices, Powers all 2-wire HART devices, independent of supplier, Draws power from USB port, needs no external supply to power modem, Compact, rugged polycarbonate housing for industrial-grade reliability, Integrated connector cable terminates in 2 test clips and 1 USB connector cable, Selectable powered-modem or modem-only mode, Compatible with Windows® 7, 10 and 11. Input current: 30 mA at 5 V for modem only , 255 mA at 5 V with device power and modem. Power supply: Powered by USB port , No external power required. Interface type: USB 2.0 port or higher. Signal: 0.5 ± 0.1 Vpp trapezoidal wave at 1200/2200 Hz, 24 VDC at 40 mA to device. Output/interface: 500 V DC. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 62368-1:2014-08: . Directive 2014/30/EU: EN 61326-1:2013 EN 62368-1:2014-08. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating system: Windows® 7, 10 and 11 with 32 and 64 bits. Operating temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Relative humidity: 0 ... 95 % non-condensing. Degree of protection: IP20. Connection: USB (type A) Connector , red and black test clips. Material: Polycarbonate. Dimensions: 96 mm x 47 mm x 24 mm. Height24 mmWidth47 mmLength96 mm: . Height: 24 mm. Width: 47 mm. Length: 96 mm. Cable length: 1.8 m 2-strand wire terminating in 2 test clips , 15.2 cm cable terminating in 1 USB type A connector. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
