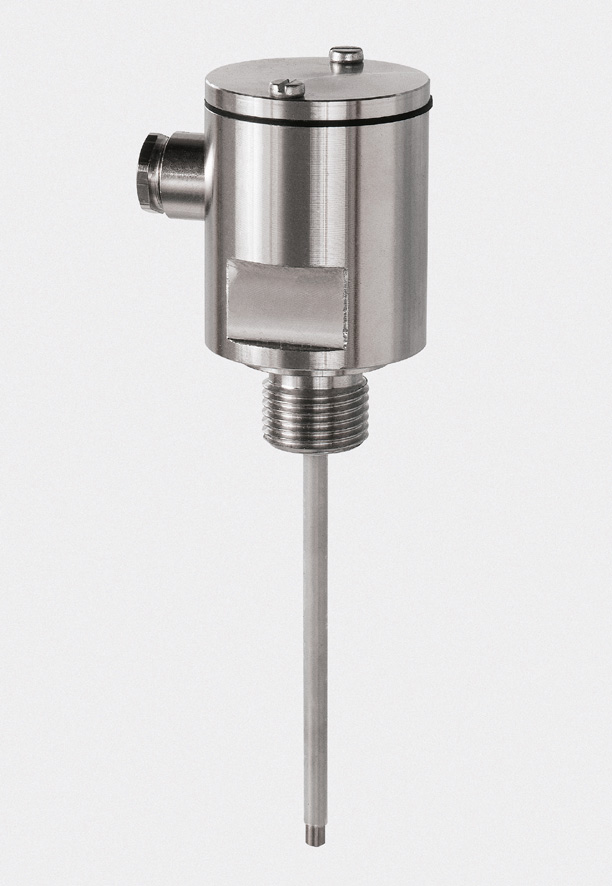

HR-6**1**

1-Rod Electrode. Sensor for conductive limit value detection, Electrodes Ø6 mm (0.24 inch) for length more than 1.5 m (5 foot), 1-rod electrode with electrode socket or terminal box, Different rod and...

1-Rod Electrode. Sensor for conductive limit value detection, Electrodes Ø6 mm (0.24 inch) for length more than 1.5 m (5 foot), 1-rod electrode with electrode socket or terminal box, Different rod and thread materials. Type: sensor for conductive limit value detection. Equipment architecture: A measuring system consists of a rod electrode HR-6**1** with electrode relay KFA6-ER 1.6,KFD2-ER 1.6, KFD2-ER-Ex1.W.LB or KFA6-ER-Ex1.W.LB.. Series: HR-6**1**. Measured variable: measuring voltage directly from the electrode relay. Output signal: electrode relay creates switch signal corresponding to the selected responsiveness.. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006: . Directive 2014/30/EU: EN 61326-1:2006 , EN 61326-2-3:2006. Degree of protection: IEC 60529:2001. Process conditions: . Process temperatureprocess connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K)Process pressure (static pressure)process connection 6: ≤ 30 barprocess connection 7: ≤ 16 barprocess connection 8: ≤ 6 bar: . Process temperature: process connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K). Process pressure (static pressure): process connection 6: ≤ 30 barprocess connection 7: ≤ 16 barprocess connection 8: ≤ 6 bar. Degree of protection: IP65 with terminal boxIP52 with plug connector. Connection: terminals in plug connector or in terminal boxplug connector: terminal, max. 1 mm2terminal box: terminal, max. 2.5 mm2. Material: housing: stainless steel 1.4571/316Ti, PP or PTFEprocess connection: stainless steel 1.4571/316Ti, PP or PTFEelectrode rod: stainless steel 1.4571/316Ti, Hastelloy C, titanium or tantalum. Dimensions: housing: max. Ø43 mm (1.7 inch), height max. 55 mm (2.2 inch)rod: length L max. 3000 mm (10 foot). Process connection: thread G1/2 to ISO 228. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
