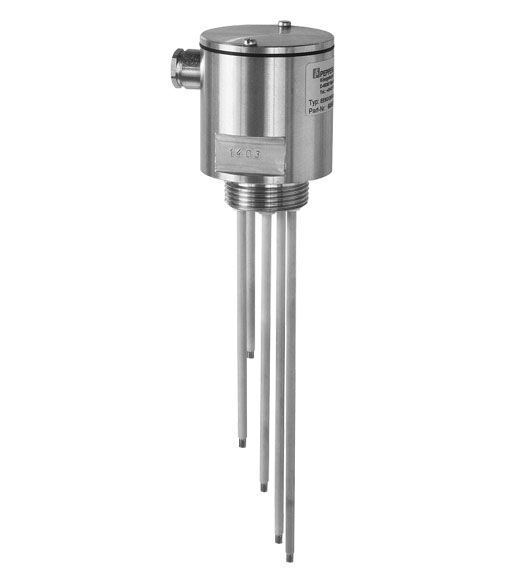

HR-6*5***

Multiple Rod Electrode. Sensor for conductive limit value detection, 1 to 5 electrode rods, Electrodes Ø4 mm (0.16 inch) or Ø6 mm (0.24 inch), Different rod and thread materials. Type: sensor for cond...

Multiple Rod Electrode. Sensor for conductive limit value detection, 1 to 5 electrode rods, Electrodes Ø4 mm (0.16 inch) or Ø6 mm (0.24 inch), Different rod and thread materials. Type: sensor for conductive limit value detection. Equipment architecture: A measuring system consists of a rod electrode HR-6*5*** with electrode relay KFA6-ER 1.6,KFD2-ER 1.6, KFD2-ER-Ex1.W.LB or KFA6-ER-Ex1.W.LB.. Series: HR-6*5***. Measured variable: measuring voltage directly from the electrode relay. Output signal: electrode relay creates switch signal corresponding to the selected responsiveness.. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006: . Directive 2014/30/EU: EN 61326-1:2006 , EN 61326-2-3:2006. Degree of protection: IEC 60529:2001. Process conditions: . Process temperatureprocess connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K)Process pressure (static pressure)process connection 6: <= 40 barprocess connection 7: <= 10 barprocess connection 8: <= 6 bar: . Process temperature: process connection 6: <= 150 °C (423 K)process connection 7: <= 90 °C (363 K)process connection 8: <= 150 °C (423 K). Process pressure (static pressure): process connection 6: <= 40 barprocess connection 7: <= 10 barprocess connection 8: <= 6 bar. Degree of protection: IP65 with terminal box. Connection: terminals in the terminal box: connection, max. 2.5 mm2. Material: housing: stainless steel 1.4571/316Ti, PP or PTFEprocess connection: stainless steel 1.4571/316Ti, PP or PTFEelectrode rod: stainless steel 1.4571/316Ti, Hastelloy C, titanium or tantalum. Dimensions: housing: max. Ø65 mm (2.6 inch), height max. 75 mm (3 inch)rods: length L1 ... L5 max. 3000 mm (10 foot). Process connection: thread G1-1/4A to DIN/ISO 228/1. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.. Designation: - spacer, PTFE for Ø4 mm (0.16 inch) rods- spacer with clamp screw, PTFE, for Ø4 mm (0.16 inch) rods- spacer with clamp screw, PTFE, for Ø6 mm (0.24 inch) rods- counter nut G1-1/4A made of PVC- counter nut G1-1/4A made of stainless steel- LZ-1201, mounting angle of stainless steel 1.4571/316Ti with drilling for G1/2A- LZ-1203, mounting angle of stainless steel 1.4571/316Ti with drilling for G1-1/4A

Brand	Pepperl Fuchs
Lifecycle status	active
