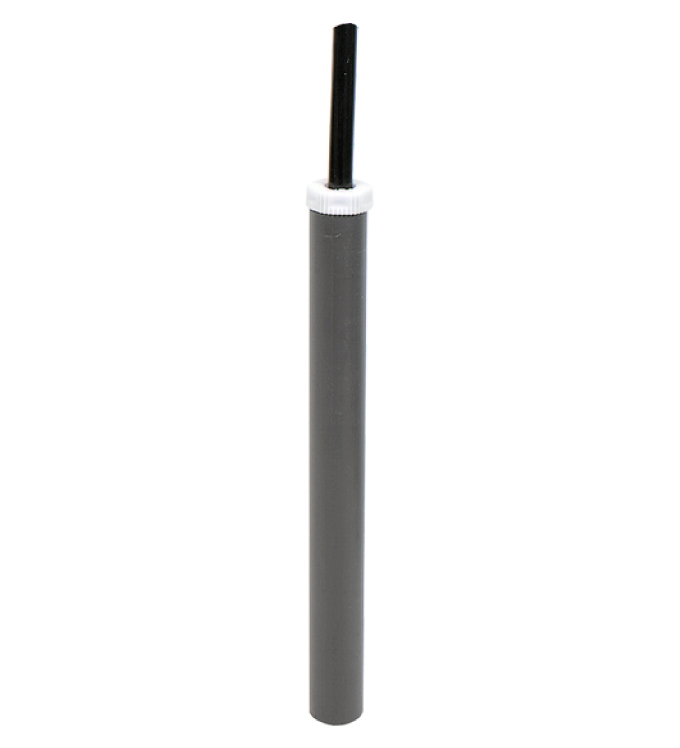

HR-690121

Suspension Electrode. Sensor for conductive limit value detection, Simple and robust installation, Application in deep wells and drainage shafts. Type: sensor for conductive limit value detection. Equ...

Suspension Electrode. Sensor for conductive limit value detection, Simple and robust installation, Application in deep wells and drainage shafts. Type: sensor for conductive limit value detection. Equipment architecture: A measuring system consists of a suspension electrode HR-690121 with electrode relay KFA6-ER 1.6,KFD2-ER 1.6, KFD2-ER-Ex1.W.LB or KFA6-ER-Ex1.W.LB.. Series: HR-690121. Versions: HR-690121/05, suspension electrode, 5 m (5.5 yd) cable, PVCHR-690121/10, suspension electrode, 10 m (11 yd) cable, PVCHR-690121/20, suspension electrode, 20 m (22 yd) cable, PVC. Measured variable: measuring voltage directly from the electrode relay. Output signal: electrode relay creates switch signal corresponding to the selected responsiveness.. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2006 , EN 61326-2-3:2006: . Directive 2014/30/EU: EN 61326-1:2006 , EN 61326-2-3:2006. Degree of protection: IEC 60529:2001. Process conditions: . Process temperature-20 ... 60 °C (-4 ... 140 °F): . Process temperature: -20 ... 60 °C (-4 ... 140 °F). Material: thread, cable insulation and electrode: PVCelectrode tip: stainless steel 1.4571/316Ti. Dimensions: electrode: Ø20 mm (0.8 inch), length 160 mm (6.3 inch)cable: length max. 20 m (21.9 yard). Supplementary information: Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
