HUT

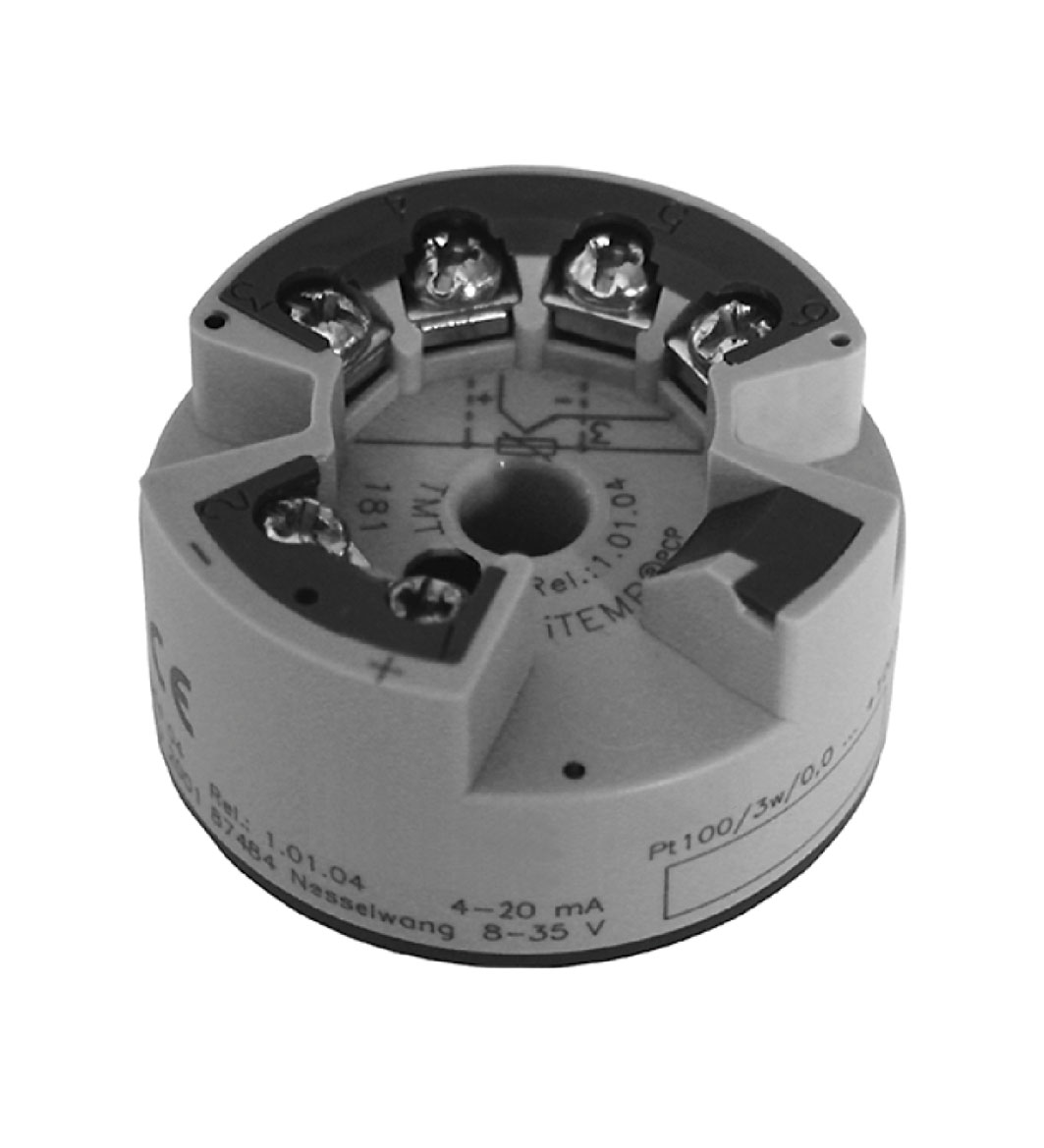

Temperature head transmitter. 2-, 3- and 4-wire technology, 4 mA ... 20 mA analog output, High accuracy in total ambient temperature range, Universally PC programmable for various signals, Fault signa...

Temperature head transmitter. 2-, 3- and 4-wire technology, 4 mA ... 20 mA analog output, High accuracy in total ambient temperature range, Universally PC programmable for various signals, Fault signal on sensor break or short circuit, presettable to NAMUR NE43, Online configuration during measurement using SETUP connector, Customer specific linearization, EMC acc. to NAMUR NE 21. Connection: terminals 1, 2. Rated voltage: 8 ... 35 V DC8 ... 30 V DC for hazardous area. Sensor types: resistance thermometer (RTD):- Pt100, Pt500, Pt1000 acc. to IEC 751 and Ni100, Ni500, Ni1000 acc. to DIN 43760resistance transmitter (Ω)thermocouple (TC):- B (PtRh30-PtRh6), C (W5Re-W26Re), D (W3Re-W25Re), E (NiCr-CuNi), J (Fe-CuNi), K (NiCr-Ni), L (Fe-CuNi), N (NiCrSi-NiSi), R (PtRh13-Pt), S (PtRh10-Pt), T (Cu-CuNi), U (Cu-CuNi), MoRe5-MoRe41 acc. to IEC 584, part 1voltage transmitter (mV). Connection: resistance thermometer (RTD):- 2-wire connection: terminals 3, 6- 3-wire connection: terminals 3, 5, 6- 4-wire connection: terminals 3, 4, 5, 6resistance transmitter (Ω):- 2-wire connection: terminals 3, 6- 3-wire connection: terminals 3, 5, 6- 4-wire connection: terminals 3, 4, 5, 6thermocouple (TC): terminals 4, 6. Cold junction compensation: internal (Pt100) or external (0 ... 80 °C (273 ... 353 K)), accuracy ± 1 K. Lead resistance: resistance thermometer (RTD): max. 11 Ω per line. Current: resistance thermometer (RTD): sensor current ≤ 0.6 mAthermocouple (TC): sensor current 30 mA. Connection: terminals 1, 2. Current limit: ≤ 25 mA. Load: (Vs - 8)/0.025 A. Switch-on delay: 4 s , during power up Ia = 3.8 mA. Output signal: 4 ... 20 mA, 20 ... 4 mA temperature linear, resistance linear, voltage linear. Residual ripple: Upp ≤ 5 V at Ub ≥ 13 V, fmax = 1 kHz. Response time: 1 s. Self current consumption: max. 3.5 mA. Signal on alarm: measuring range undercut: linear drop to 3.8 mAexceeding measuring range: linear rise to 20.5 mAsensor breakage, sensor short circuit: ≤ 3.6 mA oder ≥ 21.0 mA can be set up. Input/Output: safe galvanic isolation acc. to EN 50020, 3.75 kV AC. Reference operating conditions: calibration temperature 23 °C (296 K) ± 5 K. Maximum measured error: resistance thermometer (RTD): 0.2 ... 0.5 K or 0.08 ... 0.2 %resistance transmitter (Ω): ± 0.1 ... 1.5 Ω or 0.08 ... 0.12 %thermocouple (TC): typ. 0.5 ... 2.0 K or 0.08 %voltage transmitter: ± 20 µV or 0.08 %. Ambient conditions: . Ambient temperature-40 ... 85 °C (-40 ... 185 °F) , for hazardous area see certificateStorage temperature-40 ... 100 °C (-40 ... 212 °F)Vibration resistance4 g/2 ... 150 HzRelative humiditymoisture condensation allowable: . Ambient temperature: -40 ... 85 °C (-40 ... 185 °F) , for hazardous area see certificate. Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Vibration resistance: 4 g/2 ... 150 Hz. Relative humidity: moisture condensation allowable. Degree of protection: IP00/IP66 installed. Connection: Terminals for wires max. 1.75 mm 2, undetachable screws. Material: housing: PCpotting: PUR. Mass: approx. 40 g. Dimensions: ∅44 x 22,5 mm (1.7 x 0.9 inch). Construction type: connection head acc. to DIN 43729 form B, field housing. Configuration: via PC operating software, configuration set TXU 10Linterface: PC interface connection cable TTL-/-RS 232 with plug. Explosion-hazardous area: ZELM 07 ATEX 0352 X , for additional certificates see www.pepperl-fuchs.com. Type of protection: II 1G Ex ia IIC T6/T5/T4. Directive conformity: . Directive 2004/108/EC (EMC)emitted interference and noise immunity to EN 61326-1:2006 and EN 61326-2-3:2006Directive 94/9/EC (ATEX)EN 60079-0:2006, EN 60079-11:2007, EN 60079-26:2007: . Directive 2004/108/EC (EMC): emitted interference and noise immunity to EN 61326-1:2006 and EN 61326-2-3:2006. Directive 94/9/EC (ATEX): EN 60079-0:2006, EN 60079-11:2007, EN 60079-26:2007. Conformity: . Electromagnetic compatibilityNE 21Degree of protectionEN 60529Climate classEN 60654, class CVibration resistanceEN 60068-2-6: . Electromagnetic compatibility: NE 21. Degree of protection: EN 60529. Climate class: EN 60654, class C. Vibration resistance: EN 60068-2-6. Supplementary documentation: technical information TI070Ooperating instructions KA141Osafety information SI085O (ZELM 07 ATEX 0352 X). Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
