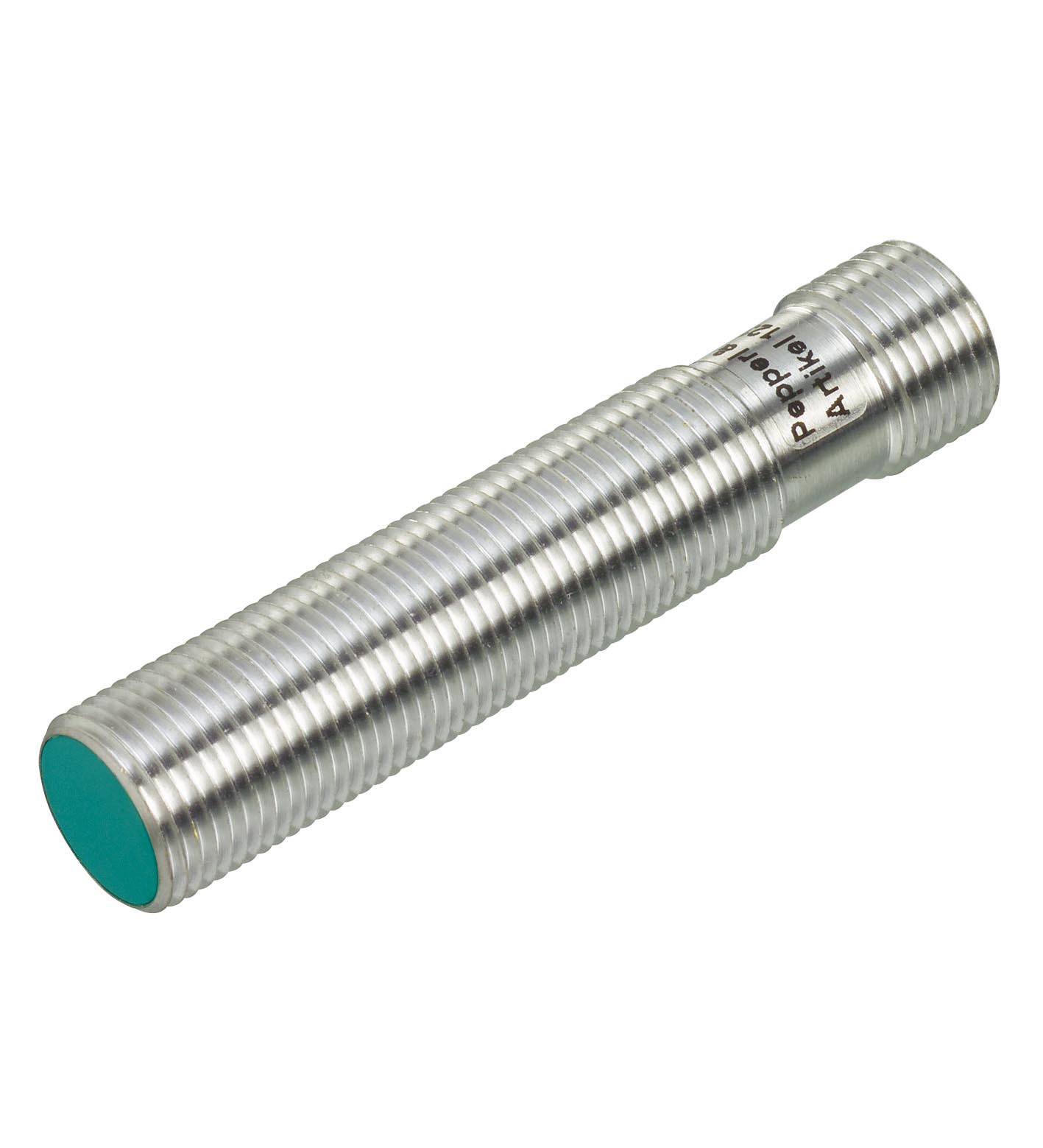

IA6-12GM50-IU-V1
Inductive analog sensor. Output type: Analog current output or analog voltage output, Installation: quasi flush, Output polarity: DC, Output type: 4-wire, Thread mold: M12, Construction type: Cylindri...
Inductive analog sensor. Output type: Analog current output or analog voltage output, Installation: quasi flush, Output polarity: DC, Output type: 4-wire, Thread mold: M12, Construction type: Cylindrical, thread, Series: Cylindrical type, Operating voltage: 15 ... 30 V , residual ripple 20 % U<sub>B</sub>, Type of voltage: DC, Output type: 0 ... 10 V / 4 ... 20 mA, Connection type: Connector plug, Housing material: chromium plated brass, Degree of protection: IP67, Threading: M12 x 1. Output type: Analog current output or analog voltage output. Installation: quasi flush. Output polarity: DC. Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm. Reduction factor rAl: 0.33. Reduction factor rCu: 0.28. Reduction factor r304: 0.8. Reduction factor rBrass: 0.43. Measuring range: 0 ... 6 mm. Output type: 4-wire. Installation conditions: . A2 mmB12 mmC18 mmF14 mm: . A: 2 mm. B: 12 mm. C: 18 mm. F: 14 mm. Operating voltage: 15 ... 30 V , residual ripple 20 % UB. Limit frequency (3dB): 1000 Hz. Reverse polarity protection: yes. Short-circuit protection: yes. Repeat accuracy: ± 0.32 mm. Resolution: 0 ... 1 µm. No-load supply current: ≤ 10 mA. MTTFd: 551 a. Diagnostic Coverage (DC): 0 %. Output type: 0 ... 10 V / 4 ... 20 mA. Load resistor: Current output A2: 0.4 kΩ (UB=15V) / 1 kΩ (UB=30V). Load current: Voltage output A1: ≤ 15 mA. Recovery time: 20 ms. Adjustment tolerance zero point: ≤ ± 10 % of full-scale value. Temperature drift: ± 5 % (0 ... 70 °C)± 10 % (-25 ... 0 °C). Residual ripple: 20 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: chromium plated brass. Sensing face: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 27 g. Dimensions: . Length60 mmDiameter12 mm: . Length: 60 mm. Diameter: 12 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
