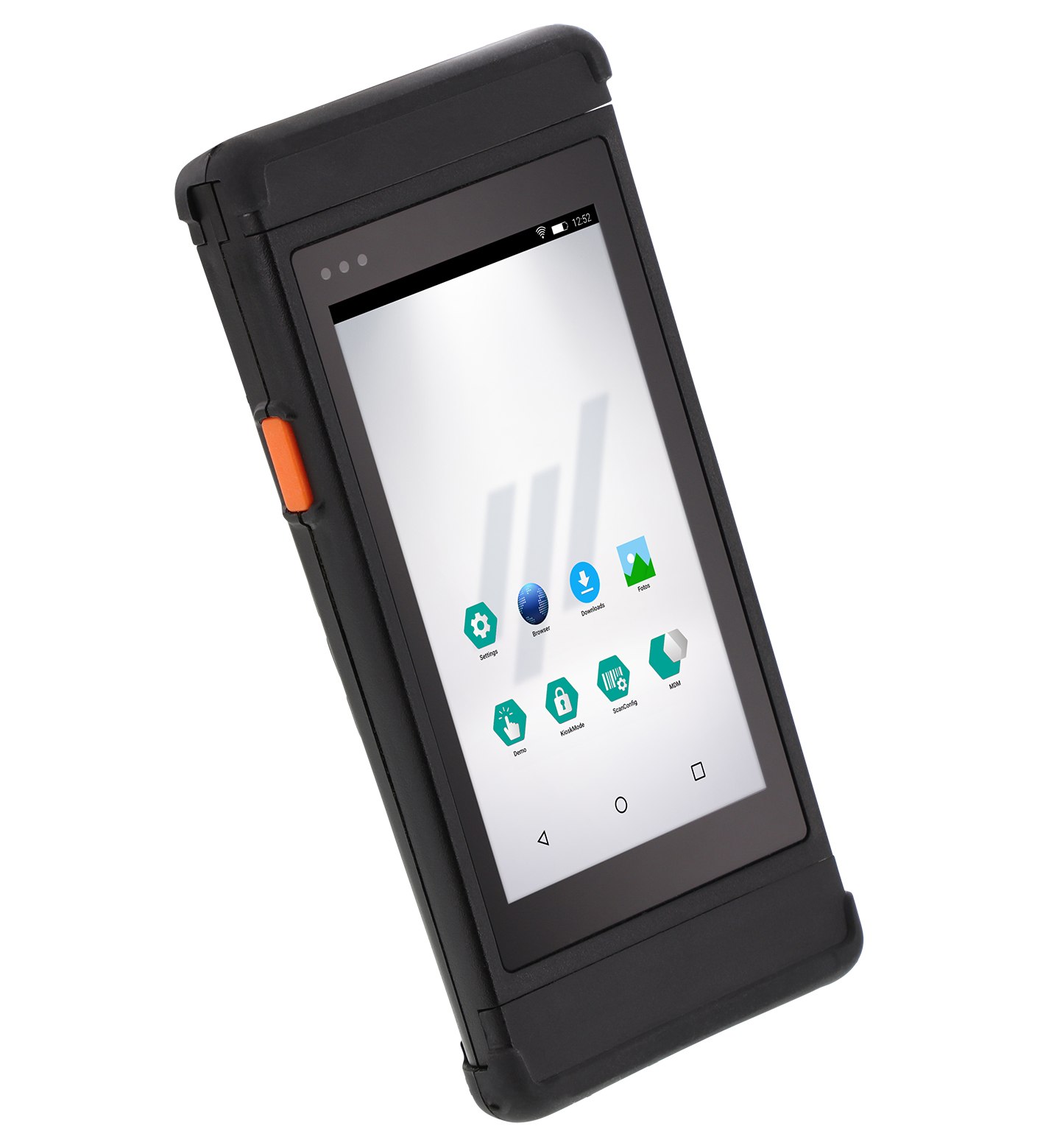

IC-HH52

Handheld. Modular handheld, Android, camera, barcode. Description: Handheld, touch screen, Wi-Fi, Bluetooth, Android, 5 MP camera, 1-D/2-D barcode reader. Processor: NXP i.MX8M Mini, 4x Cortex A53 (4x...

Handheld. Modular handheld, Android, camera, barcode. Description: Handheld, touch screen, Wi-Fi, Bluetooth, Android, 5 MP camera, 1-D/2-D barcode reader. Processor: NXP i.MX8M Mini, 4x Cortex A53 (4x 1.8 GHz) and 1x Cortex M4 (1x 400 MHz). Memory: 16 GB Flash 2 GB RAM. Display: 5.0 inch TFT color display with LED backlight, capacitive Resolution 1280 x 720 pixels. LED green: Device on. Key: On/off scanner. Battery type: Lithium ion battery: 3.8 V; 6000 mAh. Supply: via charger or from inserted Li-ion battery. Interface type: Physical: USB connection and Ethernet connection via charger (accessories) Radio connection: WLAN IEEE 802.11 a/b/g/n/ac/d/h/e/i/r/w/v (2.4 GHz/5 GHz) Compatible with Bluetooth 5.0. Radio equipment: . Directive 2014/53/EUEN 301489-1 EN 300328 EN 301893 EN 62368-1: . Directive 2014/53/EU: EN 301489-1 EN 300328 EN 301893 EN 62368-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. CE conformity: CE. FCC approval: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.. IC approval: This device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.. CCC approval: 2025010902772626. Radio approval: USA: Contains FCC ID XO2-SPB228DCanada: Contains IC 8713A-SPB228D. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Charging temperature: 5 ... 45 °C (41 ... 113 °F). Degree of protection: IP54. Material: . HousingPlastic ABS/PC: . Housing: Plastic ABS/PC. Mass: approx. 390 g. Dimensions: . Height28 mmWidth82 mmLength174 mm: . Height: 28 mm. Width: 82 mm. Length: 174 mm. Note: Li-ion battery included in scope of deliveryThe charger is not included in the scope of delivery

Brand	Pepperl Fuchs
Lifecycle status	active
