IC-KP-R2-V1

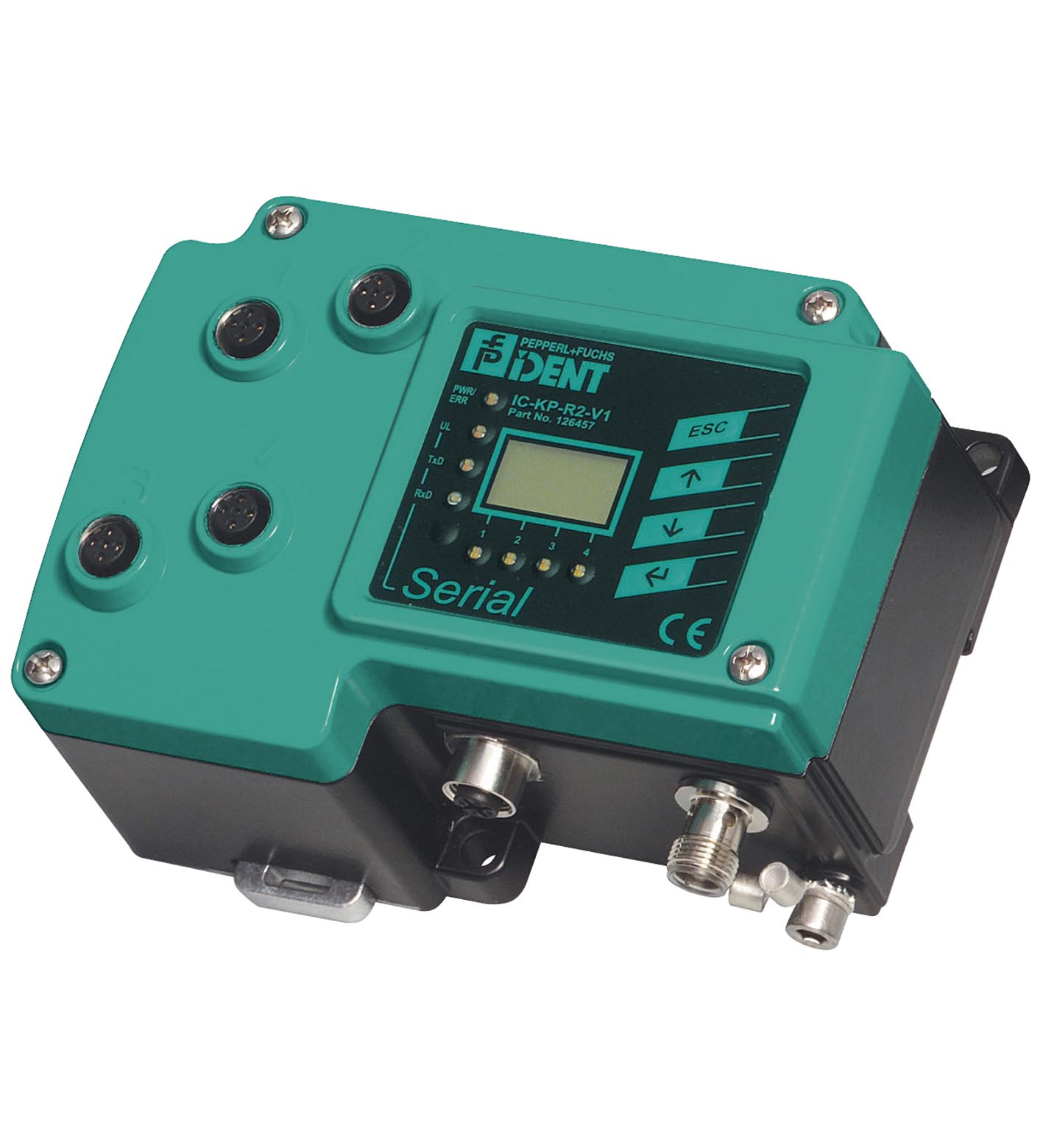

RFID evaluation unit. Control interface unit IDENTControl with serial interface RS-232. Number of read/write heads: max. 4alternative 2 read/write heads and 2 trigger sensors. UL File Number: E87056....

RFID evaluation unit. Control interface unit IDENTControl with serial interface RS-232. Number of read/write heads: max. 4alternative 2 read/write heads and 2 trigger sensors. UL File Number: E87056. MTBF: 95 a (Operation at +40 °C). LEDs 1, 2, 3, 4: Status indicator for read/write headsgreen: command at read/write head activeyellow: approx. 1 second long, if command was successfully executed. LED PWR/ERR: green: power onred: Hardware fault. LED UL: green: Interface Power ON/OK. LED TxD: green: flashes in rhythm with the transmitted data. LED RxD: green: flashes in rhythm of receiving data. LC display: two-line multi-function display with 12 characters per line configuration of the control interface and display of connected read/write heads as additional pictograms; easy and direct selection of operating commands. Button: 4 keys: ESC, up, down and return. Rated operating voltage: 20 ... 30 V DC , PELV. Ripple: ≤ 10 % at 30 V DC. Current consumption: ≤ 2 A incl. read/write heads. Power consumption: 2.5 W Without read/write heads. Galvanic isolation: basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff. Physical: RS 232. Protocol: ASCII. Transfer rate: 1200; 2400; 4800; 9600; 19200; 38400 Bit/s. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: IEC 60529. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -30 ... 80 °C (-22 ... 176 °F). Climatic conditions: air humidity max. 96 % Salt spray resistant to EN 60068-2-52. Shock and impact resistance: Oscillation (Sine): 5 g, 10 - 1000 Hz to EN 60068-2-6Shock (Half-sine): 30 g, 11 ms in accordance with EN 60068-2-27. Degree of protection: IP67. Connection: Read/write heads: shielded, 4-pin, M12 connector Power supply: M12 connector Protective earth: M6 earthing screw RS 232: M12 plug connection. Material: . Housingpowder coated aluminum: . Housing: powder coated aluminum. Installation: snap-on to 35 mm standard rail or screw fixing. Mass: approx. 1000 g. Dimensions: . Height73 mmWidth105 mmLength148 mm: . Height: 73 mm. Width: 105 mm. Length: 148 mm

Brand	Pepperl Fuchs
Lifecycle status	active
