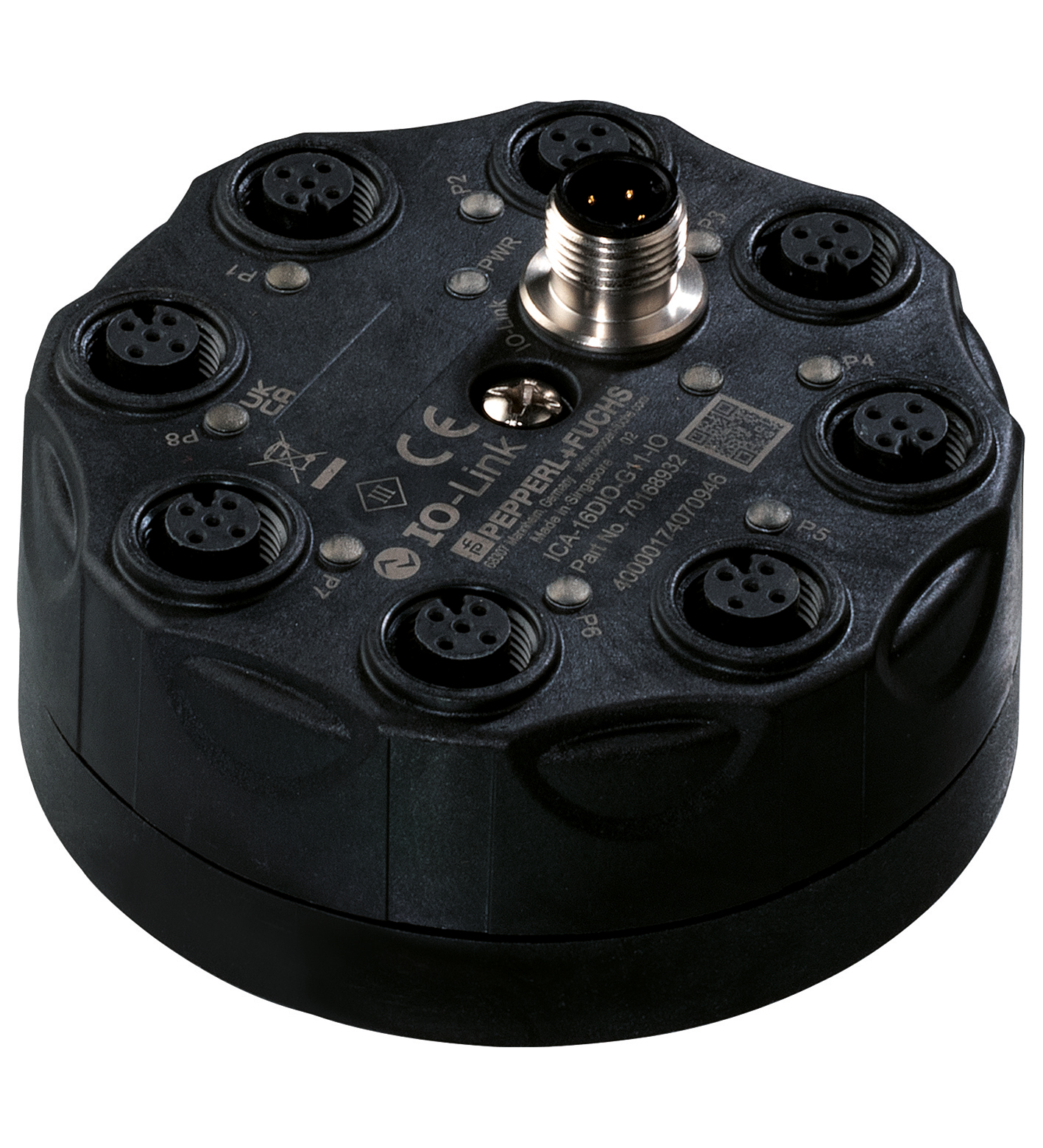

ICA-16DIO-G11-IO

I/O hub. I/O hub with IO-Link interface for 16 freely configurable digital inputs/outputs. MTBF: 144 a. LED PWR: LED green: flashing with short break (1 Hz) - IO-Link mode. LED P: Switch state (IO); m...

I/O hub. I/O hub with IO-Link interface for 16 freely configurable digital inputs/outputs. MTBF: 144 a. LED PWR: LED green: flashing with short break (1 Hz) - IO-Link mode. LED P: Switch state (IO); multicolor LEDyellow: only IO pin 4 is activeblue: only IO pin 2 is activegreen: both IO pin 4 and pin 2 are activered: overload at sensor supply or output. Operating voltage: 18 ... 30 V DC, PELV. No-load supply current: ≤ 30 mA. Operating current: Total current of all inputs/outputs max. 3A (limited by fuse). Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D Firmware update. Process data: Inputs 3 Byte - Input signals 16 Bit - diagnosis signals 5 Bit Outputs 2 Byte - Output signals 16 Bit. Vendor ID: 1 (0x0001). Device ID: 985602 (0x0F0A02). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 1 ms. SIO mode support: no. Compatible master port type: Class A. Number/Type: 16 Inputs for 3-wire sensors (PNP), DC (P1 ... P8). Supply: from IO-Link. Current loading capacity: 180 mA , overload and short-circuit protected. Input current: ≤ 5 mA (limited internally). Switching point: Type 3 according to IEC 61131-2. Number/Type: 16 electronic outputs, PNP (P1 … P86), overload-proof and short-circuit-proof. Supply: from IO-Link. Voltage: ≥ (UB - 1.5 V). Current: 180 mA per output. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55011:2016: . Directive 2014/30/EU: EN 61326-1:2013 EN 55011:2016. Degree of protection: EN 60529:2000. Input: EN 61131-2:2007. Communication interface: IEC 61131-9 / IO-Link V1.1.4. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006. UL approval: E223772 Power limitation by fuse in accordance with UL248-1, UL248-14, rated current 3 A. Protection of the personnel and the plant is not ensured if the product is not being used according to its intended use. Load specification DC General Use / DC Pilot Duty Degree of protection not tested by UL; tested by Pepperl+Fuchs SE Units shall be connected using CYJV or PVVA cord having suitable ratings min.50 V, min 4 A, min. 100 °C. The product must be installed in accordance with local laws.. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % non-condensing. Climatic conditions: For indoor use only. Altitude: ≤ 5000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm / 5 g 5 ... 500 Hz. Pollution degree: 3. Degree of protection: IP68 / IP69K. Connection: IO-Link: M12 round plug connector in accordance with EN 61076-2-101, LM type (4-pin, connector contacts, screw-locking, A-coded)Female connector: LF type or similarP: M12 round plug connector in accordance with EN 61076-2-101, LF type (4-pin, socket contacts, screw-locking, A-coded)Mating connector: LM type or similar. Material: . HousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 200 g. Tightening torque, housing screws: 1.8 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height46 mmDiameter85 mmConnectionheight 11 mm: . Height: 46 mm. Diameter: 85 mm. Connection: height 11 mm. Construction type: Field housing. Mounting: Mounting plate
