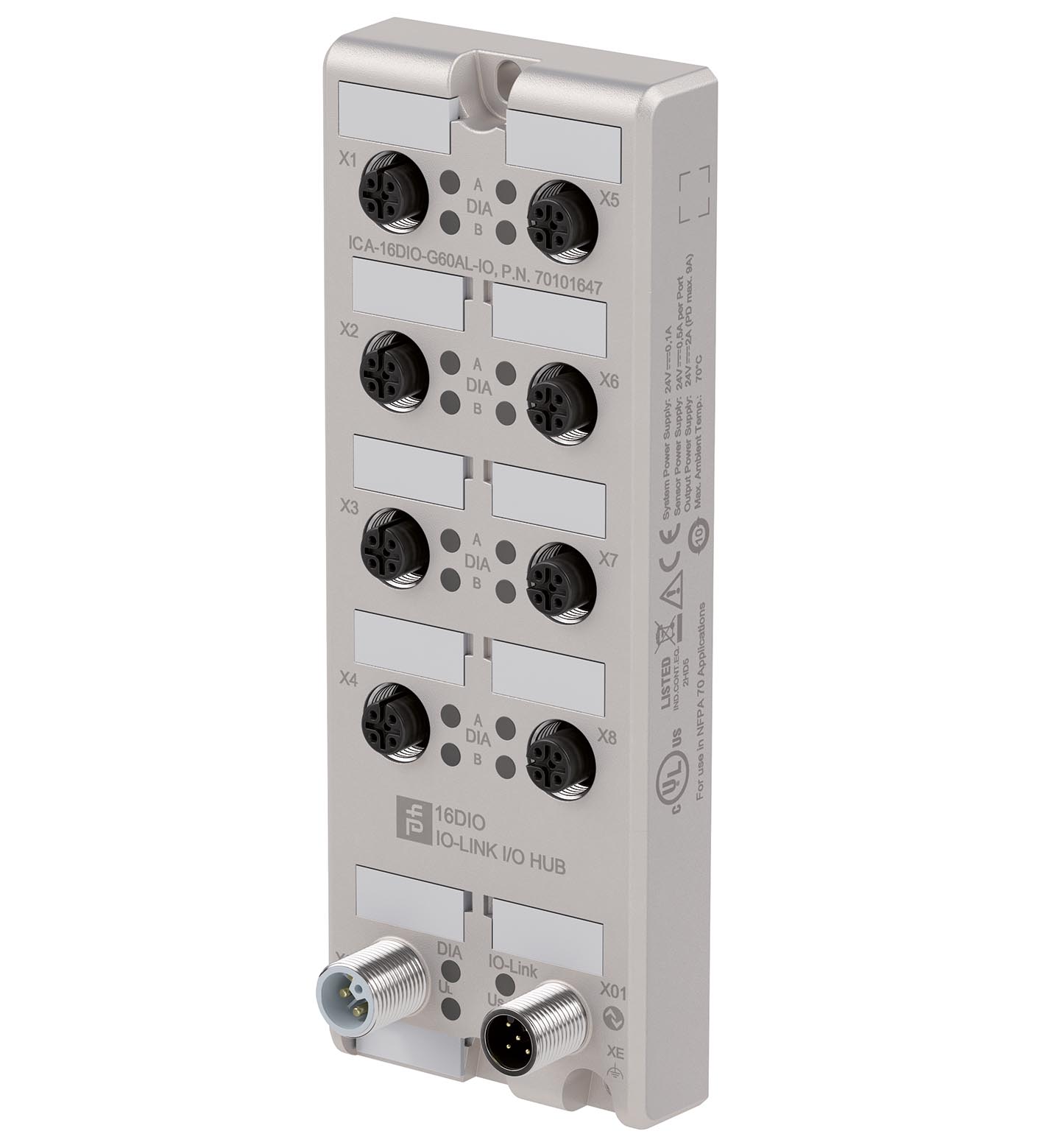

ICA-16DIO-G60AL-IO

I/O hub. I/O hub with IO-Link interface for 16 digital inputs/outputs. UL File Number: E223772. MTTFd: 2111 a. LED UAUX: Green: Actuator supply voltage OKRed: Actuator supply voltage < 18 V. LED IO-Li...

I/O hub. I/O hub with IO-Link interface for 16 digital inputs/outputs. UL File Number: E223772. MTTFd: 2111 a. LED UAUX: Green: Actuator supply voltage OKRed: Actuator supply voltage < 18 V. LED IO-Link: Green: module is switched on, no communicationFlashing green: communication OKRed: signal line overload. LED A: Orange: status indicator channel A Red: peripheral error. LED B: White: status indicator channel B Red: peripheral error. LED US: Green: system/sensor supply voltage OKRed: system/sensor supply voltage < 18 VFlashing red: sensor supply voltage overload. Rated operating voltage: 18 ... 30 V. Nominal voltage: 24 V DC. Nominal current: 16 A. Current consumption: typ. 80 mA. Current loading capacity: max. 16 A per module (for UL applications, max. 9 A). Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D. Device ID: 0x0F0203 (983555). Transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 2 ms. Process data width: Input 4 ByteOutput 4 Byte. SIO mode support: no. Compatible master port type: A. Number/Type: 16 digital inputs/outputs, configurableInputs: 2-, 3-, 4-wire PNP, DC, supply from USOutputs: 2-wire PNP, DC, supply from ULNo galvanic isolation between US and ULshort-circuit protected. Sensor supply: max. 500 mA per port (X1 - X8). Output current: max. 2 A per channel (X1 - X8) / 4 A per port max. 9 A per module. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011. Degree of protection: EN 60529:2000. Fieldbus standard: Type 1 according to IEC 61131-2. Emitted interference: EN 61000-6-2:2005. Noise immunity: EN 61000-6-4:2007+A1:2011. Shock resistance: EN 61131-2:2004. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: max. 95 %. Altitude: 0 ... 2000 m. Shock and impact resistance: 50 g, 11 ms, all axes. Vibration resistance: 15 g / 5 ... 500 Hz. Pollution degree: 3. Degree of protection: IP65 / IP67 / IP69K. Connection: Power Supply M12, L-coded IO-Link M12, A-coded Inputs/Outputs M12, A-coded. Material: . ContactsCuSn, gold-plated CuNi, gold-platedHousingDiecast zincPlastic partsPASealFKM: . Contacts: CuSn, gold-plated CuNi, gold-plated. Housing: Diecast zinc. Plastic parts: PA. Seal: FKM. Mass: 400 g. Dimensions: . Height200 mmWidth59.6 mmLength21 mm: . Height: 200 mm. Width: 59.6 mm. Length: 21 mm. Construction type: Field housing

Brand	Pepperl Fuchs
Lifecycle status	active
