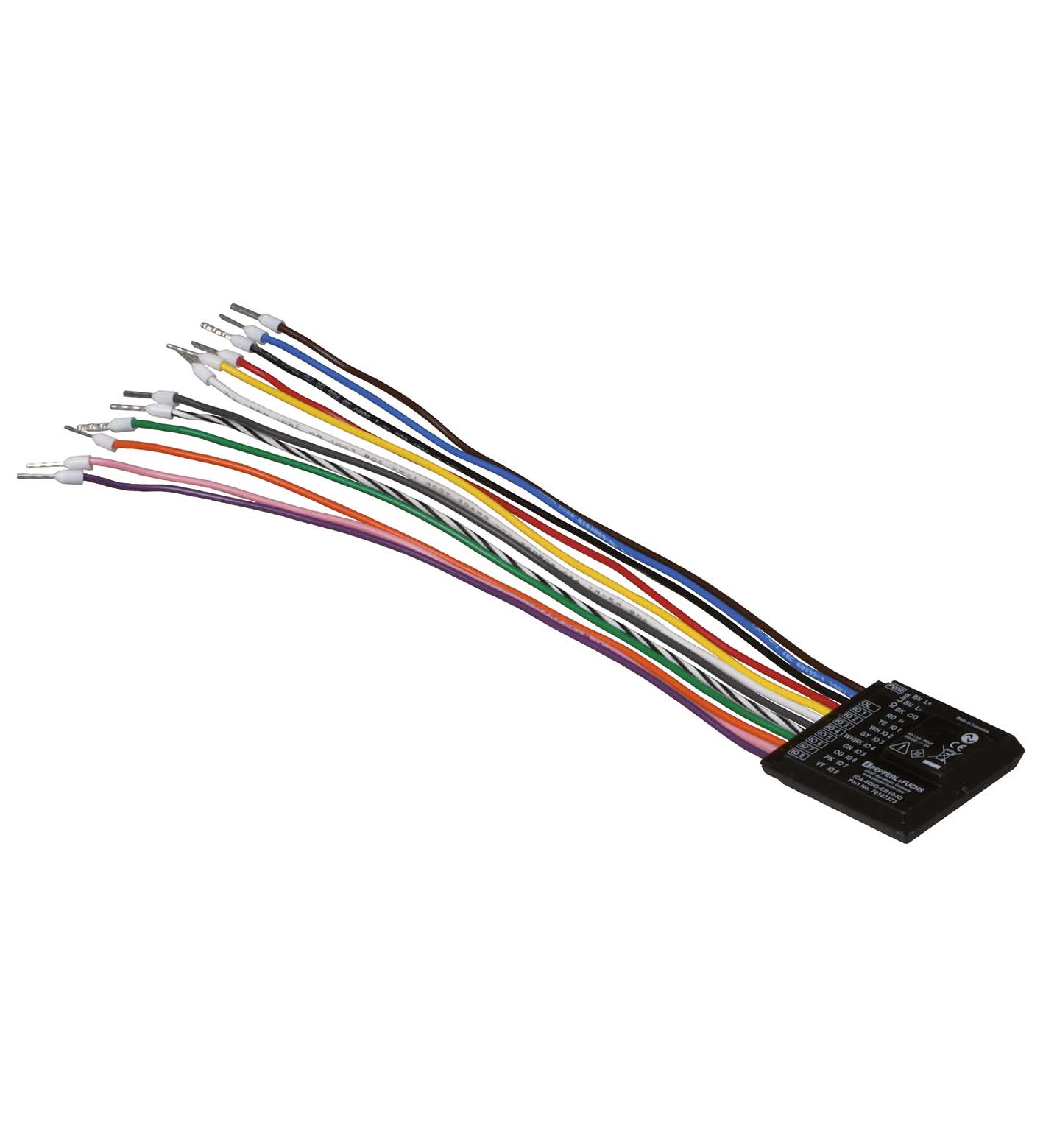

ICA-8DIO-CB10-IO
IO-Link printed circuit board module. I/O hub with IO-Link interface. LED PWR: LED green: flashing with short break (1 Hz) - IO-Link mode. LED OL: overload of sensor power supply; LED red. LED IO: Swi...
IO-Link printed circuit board module. I/O hub with IO-Link interface. LED PWR: LED green: flashing with short break (1 Hz) - IO-Link mode. LED OL: overload of sensor power supply; LED red. LED IO: Switching status/overload (input/output); 8 LED yellow/redyellow: input/output activered: output overload. Operating voltage: 18 ... 30 V DC, PELV. No-load supply current: max. 25 mA. Operating current: max. 2 A. Protection class: III. Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D. Process data: Inputs 2 Byte - Input signals 8 Bit - diagnosis signals 4 Bit Outputs 2 Byte - Output signals 8 Bit - Special functions 8 Bit. Vendor ID: 1 (0x0001). Device ID: 984577 (0x0F0601). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 1 ms. SIO mode support: no. Compatible master port type: Class A , Class B. Number/Type: 8 Inputs for 3-wire sensors (PNP), DC (IO1 ... IO8). Supply: from IO-Link. Voltage: 18 ... 30 V. Current loading capacity: 400 mA , overload and short-circuit protected. Input current: ≤ 5 mA (limited internally). Switching point: Type 1 according to IEC 61131-2. Number/Type: 8 electronic outputs, PNP (IO1 … IO8), overload proof and short-circuit proof. Supply: from IO-Link. Voltage: ≥ (UB - 1.5 V). Current: 200 mA per output. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55011:2016: . Directive 2014/30/EU: EN 61326-1:2013 EN 55011:2016. Degree of protection: EN 60529:2000. Fieldbus standard: EN 61131-9:2013. Input: EN 61131-2:2007. Communication interface: IEC 61131-9 / IO-Link V1.1.3. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006. UL approval: Protection class IP20 is not included in the UL approval. The protection class is tested by Pepperl+Fuchs.. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 85 % non-condensing. Climatic conditions: For indoor use only. Altitude: ≤ 5000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm / 5 g 5 ... 500 Hz. Pollution degree: 2. Degree of protection: IP20 according to EN 60529. Connection: 200 mm, PVC cable 0.5 mm2. Material: . HousingPolyamide hot-melt adhesive: . Housing: Polyamide hot-melt adhesive. Mass: 33 g. Dimensions: . Height10 mmWidth36 mmLength39.5 mm: . Height: 10 mm. Width: 36 mm. Length: 39.5 mm. Note: This device is maintenance-free. If the device is used in a manner not specified by the manufaturer, the protection provided by the device may be impaired.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
