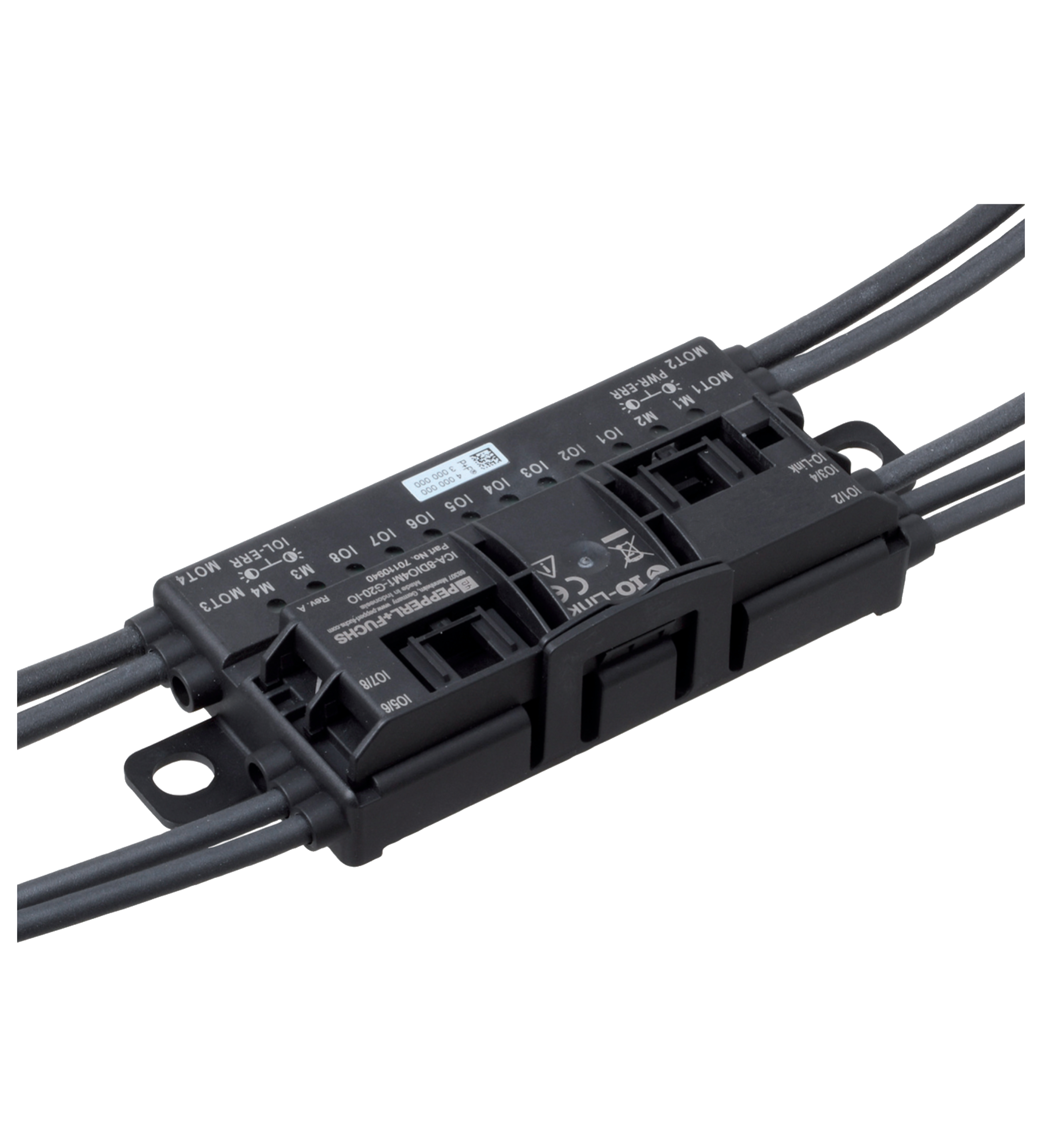

ICA-8DIO4M1-G20-IO

IO-Link Motor Roller Module. G20 MDR module with IO-Link for 8 digital inputs/outputs and 4 connections for MDRs. UL File Number: E223772 "For use in NFPA 79 Applications only". MTBF: 90 a. Compatible roller motors: Interroll EC310 Interroll EC5000 24 V AI (20 W / 35 W / 50 W) Rulmeca BL3 Itoh Denki PM500XK Itoh Denki PM500XC PULSEROLLER Senergy-IDC MTA MRD50 (A interface, 24 V to 40 W) WWL R-*-H + CE23XX Conveline RM50. LED yellow/red: IO1 ... IO8: IO-Link statusMOT1 ... MOT4: motor status. Auxiliary voltage: 18 ... 30 VDC PELV Max. 10 A Current limitation of the supply max. 30 AFor UL: Z-type miniature circuit breaker in accordance with UL 1077, max. 20 A, required. Operating voltage: 18 ... 30 V DC, PELV Max. 2.5 A (IO-Link) Current limitation of the supply max. 4 A. No-load supply current: ≤ 25 mA. Operating current: max. 2.5 A. Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D. Process data: 8 byte inputs (STD/EXT)6 byte outputs (STD)18 byte outputs (EXT). Vendor ID: 1 (0x0001). Device ID: Rev. A:984066 (0x0F0402) (STD) - default984065 (0x0F0401) (EXT)Rev. B:984066 (0x0F0402) (STD)984065 (0x0F0401) (EXT)984070 (0x0F0406) (STD) - default984069 (0x0F0405) (EXT). Data transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 1.2 ms (STD) 2 ms (EXT). SIO mode support: no. Compatible master port type: Class A. Number/Type: 8 Inputs for 3-wire sensors (PNP), DC (IO1 ... IO8). Supply: from IO-Link. Current loading capacity: 200 mA , overload and short-circuit protected. Input current: ≤ 5 mA (limited internally). Switching point: Type 3 according to IEC 61131-2. Number/Type: 8 electronic outputs, PNP (IO1 … IO8), overload proof and short-circuit proof. Supply: from IO-Link. Current: 200 mA per output. Voltage: ≥ (Ue - 1.5 V). Number/Type: 4 outputs for DC roller motors (MOT1 ... MOT4). Supply: via UPWR. Current loading capacity: 3.5 A (continuous), 5 A (< 2 s), max. 7.5 A (< 0.3 s) per motor Total current (continuous) max. 10 A per device. Overload protection: Fuse 5 A, I2t = 53.7 A2s per motor. Signal level: Speed: US = 0.3 … 10 V in no-load operationRi = 5.6 kΩ, RLOAD ≥ 35 kΩ Direction of rotation: Digital output PNPUD low = high resistanceUD high ≥ (UPWR -0.5 V)Current-carrying capacity 400 mA, overload proof and short-circuit proof. Fault level: Motor fault: Digital input NPN0 (no error) ≥ 125 µA1 (error) ≤ 25 µA. Number/Type: 4 electronic outputs, PNP (DIR/OUT1 … DIR/OUT4), overload and short-circuit proof. Supply: via UPWR. Current: 400 mA per output. Voltage: ≥ (UPWR - 0.5 V). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55011:2016: . Directive 2014/30/EU: EN 61326-1:2013 EN 55011:2016. Degree of protection: EN 60529:2000. Input: EN 61131-2:2007. Communication interface: IEC 61131-9 / IO-Link V1.1.2. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Relative humidity: 85 % non-condensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm / 5 g 5 ... 500 Hz. Pollution degree: 2. Degree of protection: IP54 according to EN 60529. Connection: 24 V power (PWR): Piercing technology, black flat cableIO-Link: M12 round plug connector in accordance with EN 61076-2-101, LM type (4-pin, connector contacts, screw-locking, A-coded)Female connector: LF type or similarInputs/outputs (IO), motors (MOT): M8 round plug connector in accordance with EN 61076-2-104IO: LF type (4-pin, bushing contacts, screw-locking, A-coded)Female connector: LM type or similarMOT: NF type (5-pin, bushing contacts, snap-locking, B-coded)Female connector: NM type or similar. Mass: 310 g. Dimensions: . Height27.5 mmWidth131.5 mmLength54 mm: . Height: 27.5 mm. Width: 131.5 mm. Length: 54 mm. Mounting: 2 clips with ∅ 8 mm drill hole The module must be secured to a solid, continuous surface using the two lugs. Cable length: 1 m (IO-Link)0.5 m (IO1/2, IO5/6), 0.65 m (IO3/4, IO7/8)0.5 m (MOT1, MOT3); 0.4 m (MOT2, MOT4) max. 10 m. Note: The flat cable routing is designed for 100 actuation cycles
