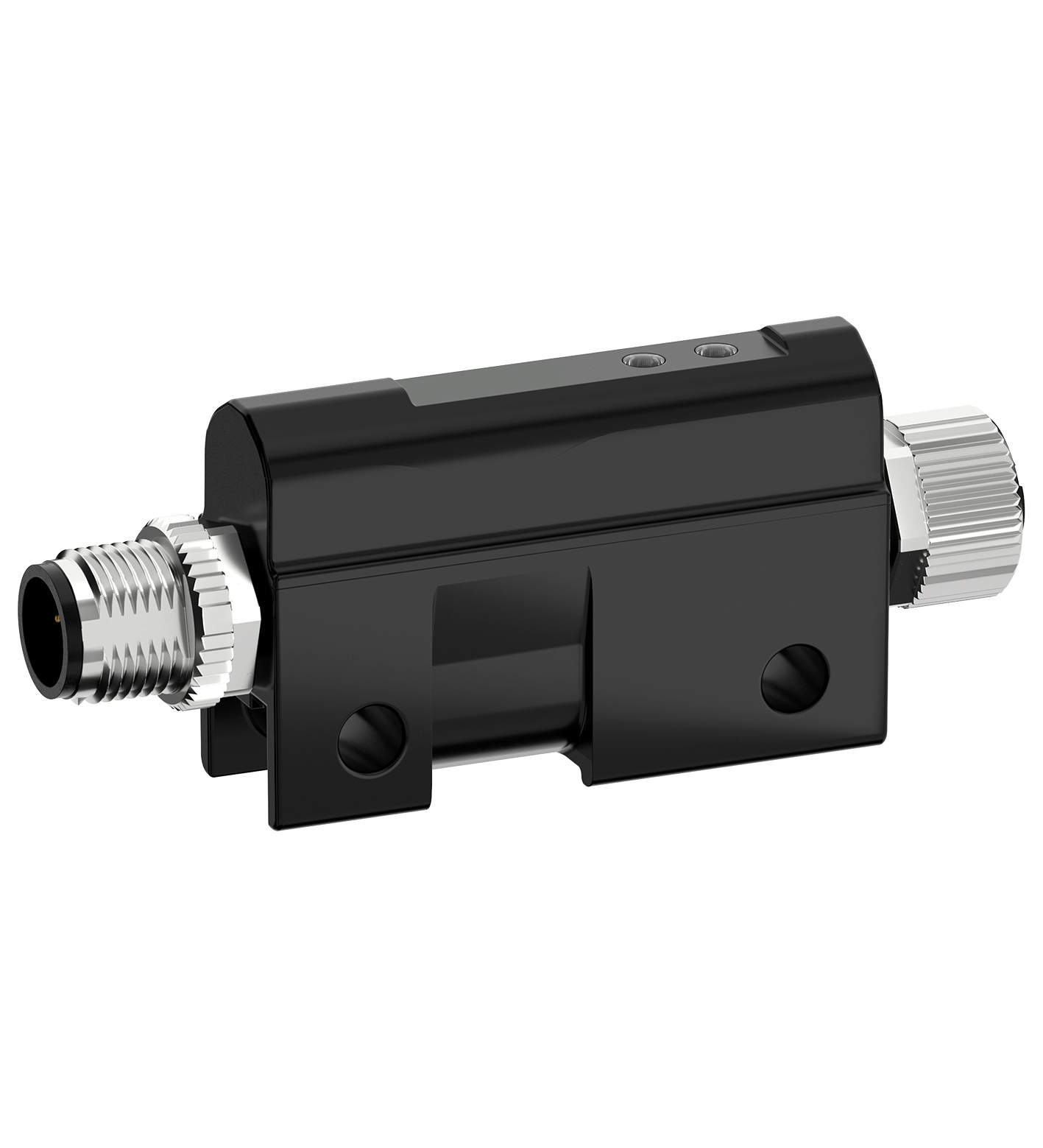

ICA-AO-I/U-IO-V1

IO-Link converter. IO-Link converter with analog output (current/voltage). UL File Number: E223772. MTTFd: 246 a. LED 1: Device status, diagnostics. LED 2: IO-Link status. Rated operating voltage: 18...

IO-Link converter. IO-Link converter with analog output (current/voltage). UL File Number: E223772. MTTFd: 246 a. LED 1: Device status, diagnostics. LED 2: IO-Link status. Rated operating voltage: 18 ... 30 V. Nominal voltage: 24 V DC. Nominal current: 230 mA. Current consumption: typ. 30 mA. Surge protection: Category II. Interface type: IO-Link. IO-Link revision: 1.1. Device ID: 0x0F0502 (984322). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 2.3 ms. Process data width: 16 bits / 2 bytes. SIO mode support: no. Compatible master port type: A, B. Number/Type: 1 analog output for actuators with analog input. Resolution: ADC: 24 bit Process data: 16 bit. Accuracy: 0.1 % FS at 25 °C. Measuring range: Current output or voltage output, configurable: 0 mA…20 mA4 mA…20 mA0 V…10 V-10 V…10 V. Sensor supply: 17 … 29.8 V DC ≤ 200 mA. Output filter: Average determination of process data, parameterizable. Temperature influence: 45 ppm/°K. Sampling rate: max. 200 Hz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011. Degree of protection: EN 60529:2000. Fieldbus standard: IEC 61131-9 / IO-Link V1.1. Emitted interference: EN 61000-6-4. Noise immunity: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6. Shock resistance: EN 60068, Part 2-6, Part 2-27. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 85 %. Climatic conditions: Climatic class 3K3. Altitude: 0 ... 2000 m. Shock and impact resistance: 50 g, 11 ms, all axes. Pollution degree: 3. Degree of protection: IP67. Connection: IO-Link M12, A-coded Input M12, A-coded. Material: . ContactsZinc, CuNi platedHousingPlastic PC + PBT: . Contacts: Zinc, CuNi plated. Housing: Plastic PC + PBT. Mass: 44 g. Dimensions: . Height32.3 mmWidth16 mmLength79.7 mm: . Height: 32.3 mm. Width: 16 mm. Length: 79.7 mm. Construction type: Field housing

Brand	Pepperl Fuchs
Lifecycle status	active
