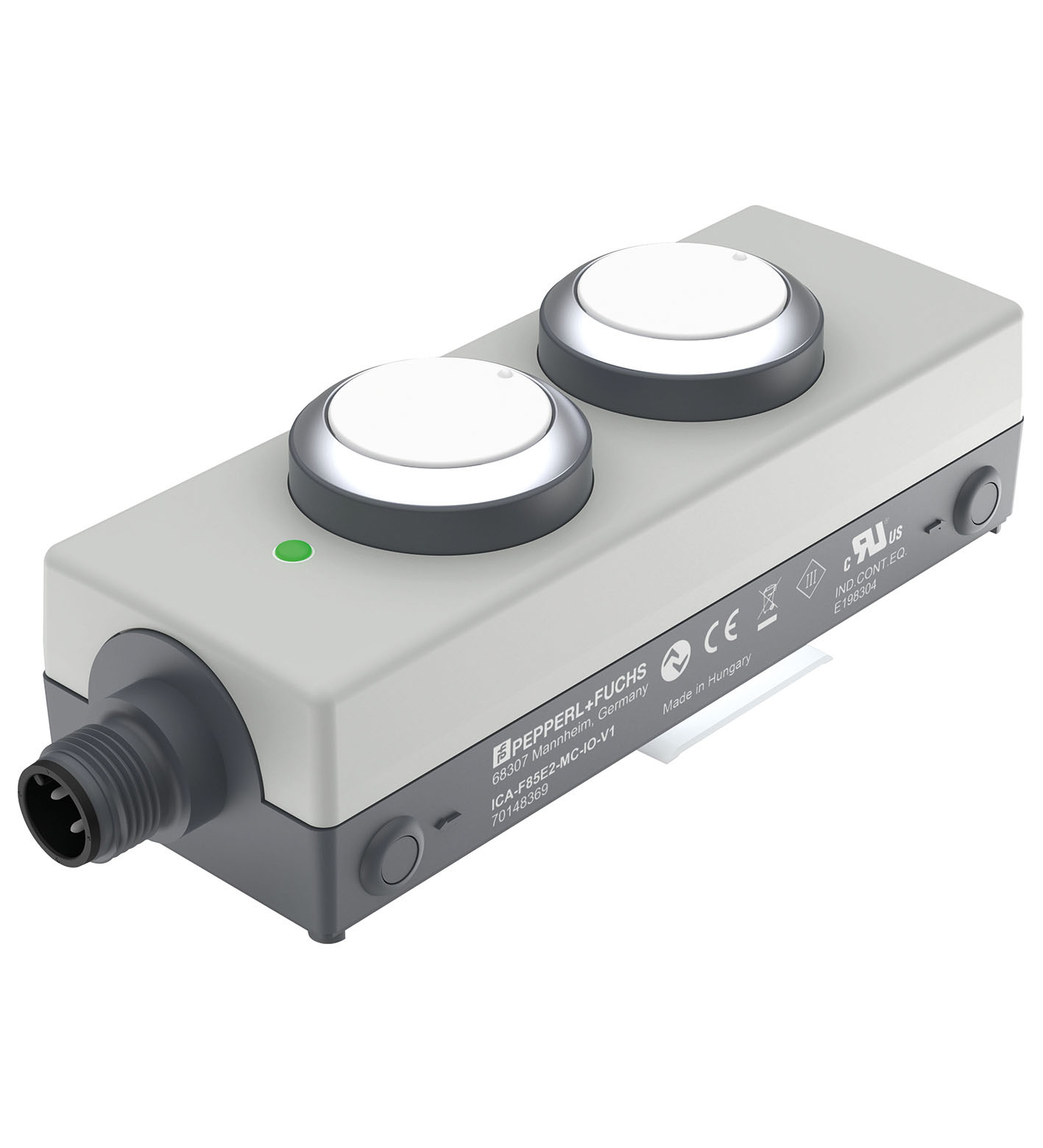

ICA-F85E2-MC-IO-V1

Push button box. Programmable push button box with IO-Link interface. UL File Number: E198304. Button: Two buttons, RGB illumination, freely programmable. Rated operating voltage: 18 ... 30 V. Operati...

Push button box. Programmable push button box with IO-Link interface. UL File Number: E198304. Button: Two buttons, RGB illumination, freely programmable. Rated operating voltage: 18 ... 30 V. Operating current: ≤ 100 mA. Protection class: III. Nominal voltage: 24 V. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D Firmware update. Process data: Input: 8 bit- Input signals: 2 bit- Diagnostic signals: 1 bit Output: 16 bit- Control signals: 6 bit- Control values: 6 bit. Vendor ID: 1 (0x0001). Device ID: 985089 (0x0F0801). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 5 ms. SIO mode support: no. Compatible master port type: Class A , Class B. Electromagnetic compatibility: . Directive 2014/30/EUDIN EN 61000-6-2 DIN EN 61000-6-3 DIN EN 61131-9: . Directive 2014/30/EU: DIN EN 61000-6-2 DIN EN 61000-6-3 DIN EN 61131-9. Degree of protection: DIN EN 60529. Pollution degree: DIN EN 61010-1. Communication interface: DIN EN 61131-9 / IO-Link V1.1.2. Shock resistance: IEC 60068-2-27. Vibration resistance: IEC 60068-2-6. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Shock and impact resistance: 50 g, 11 ms, half sine wave5 g, 10 ... 500 Hz. Pollution degree: 2. Degree of protection: IP65. Connection: M12 x 1 connector, 4-pin, A-coded. Mass: 121 g. Dimensions: . Height35.6 mmWidth40 mmLength123.3 mm: . Height: 35.6 mm. Width: 40 mm. Length: 123.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
