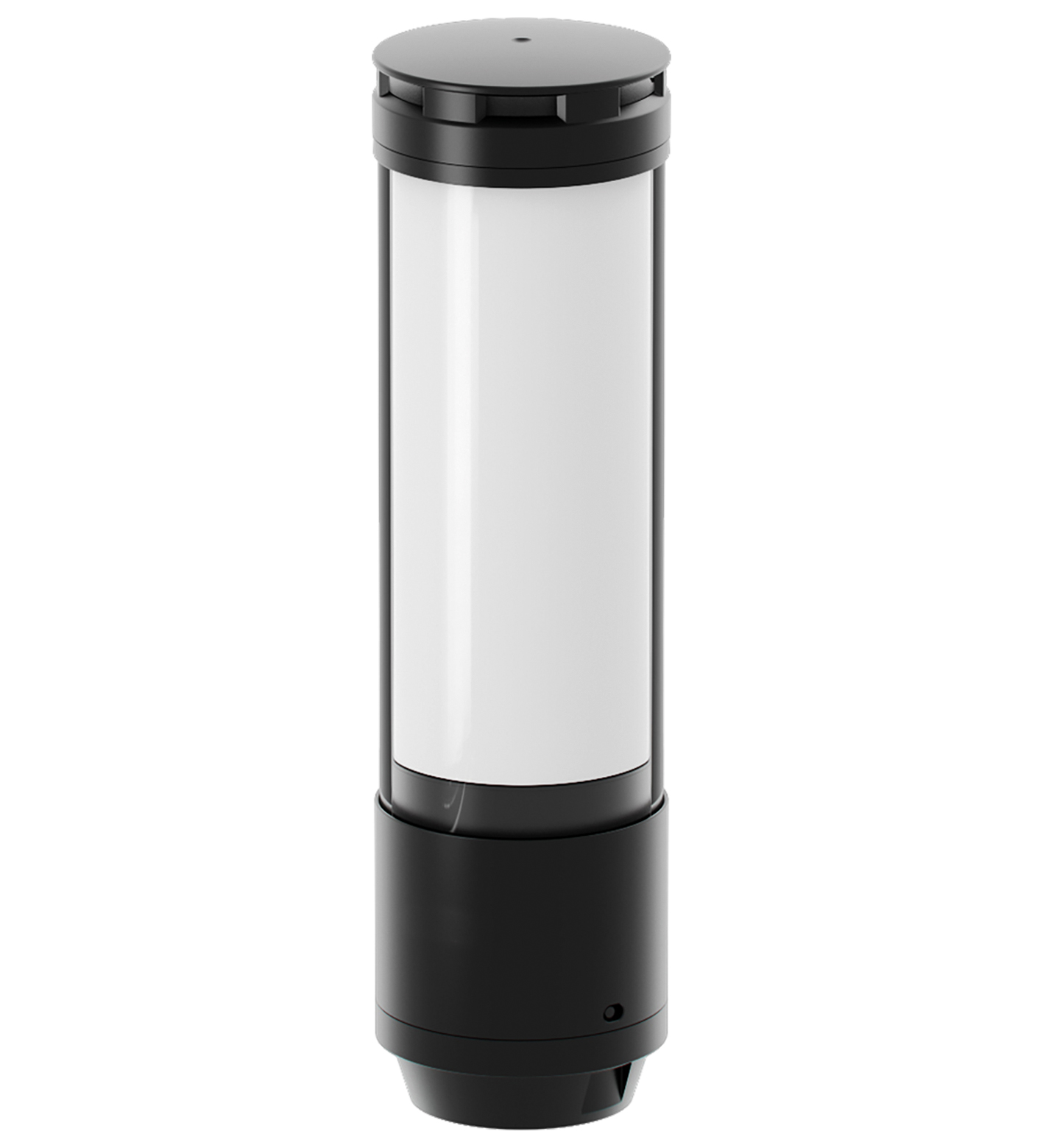

ICA-SL-9MCS-70MM-IO-V1

Signal tower IO-Link. Stack light IO-Link with 9 segments and siren. Light type: LED Light color: MC > 1 000 000 colors, configurable via IO-Link Signal patterns: blink, flash, continuous, double flas...

Signal tower IO-Link. Stack light IO-Link with 9 segments and siren. Light type: LED Light color: MC > 1 000 000 colors, configurable via IO-Link Signal patterns: blink, flash, continuous, double flash, triple flash, all-round. Signal type: Multi-tone, 10 tones, adjustable Volume max. 105 dB at a distance of 1 mAdjustment range 80 ... 105 dB. UL File Number: E223176. Color: black. Frequency: Flash frequency can be configured. Insulation voltage: Ui = 50 V / Uimp = 330 V. Rated operating voltage: 24 V DC ± 20 %. Rated operating current: 405 mA. Surge protection: Category I. Inrush current: 800 mA. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D Firmware update. Process data: Outputs 3 Byte - light = 16 Bit- Sound = 8 Bit. Vendor ID: 1 (0x0001). Device ID: 983825 (0x0F0311). Transfer rate: COM3 (230.4 kbits/s). Min. cycle time: 6 ms. SIO mode support: no. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005-08 EN 61000-6-4:2007-01 EN 61000-6-4/A1:2011-02: . Directive 2014/30/EU: EN 61000-6-2:2005-08 EN 61000-6-4:2007-01 EN 61000-6-4/A1:2011-02. Communication interface: IEC 61131-9 / IO-Link V1.1.3. Emitted interference: EN 61000-6-4:2007-01 EN 61000-6-4/A1:2011-02. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Pollution degree: 3. Degree of protection: IP66 / IP69K. Protection class: 3. Material: PC. Installation: Floor mounting, pipe mounting. Mass: 570 g. Dimensions: . Height271 mmDiameter72 mm: . Height: 271 mm. Diameter: 72 mm. Connection possibilities: M12 plug, 4-pin. Life span: Optical: max. 50,000 hAcoustic: min. 5000 h

Brand	Pepperl Fuchs
Lifecycle status	active
