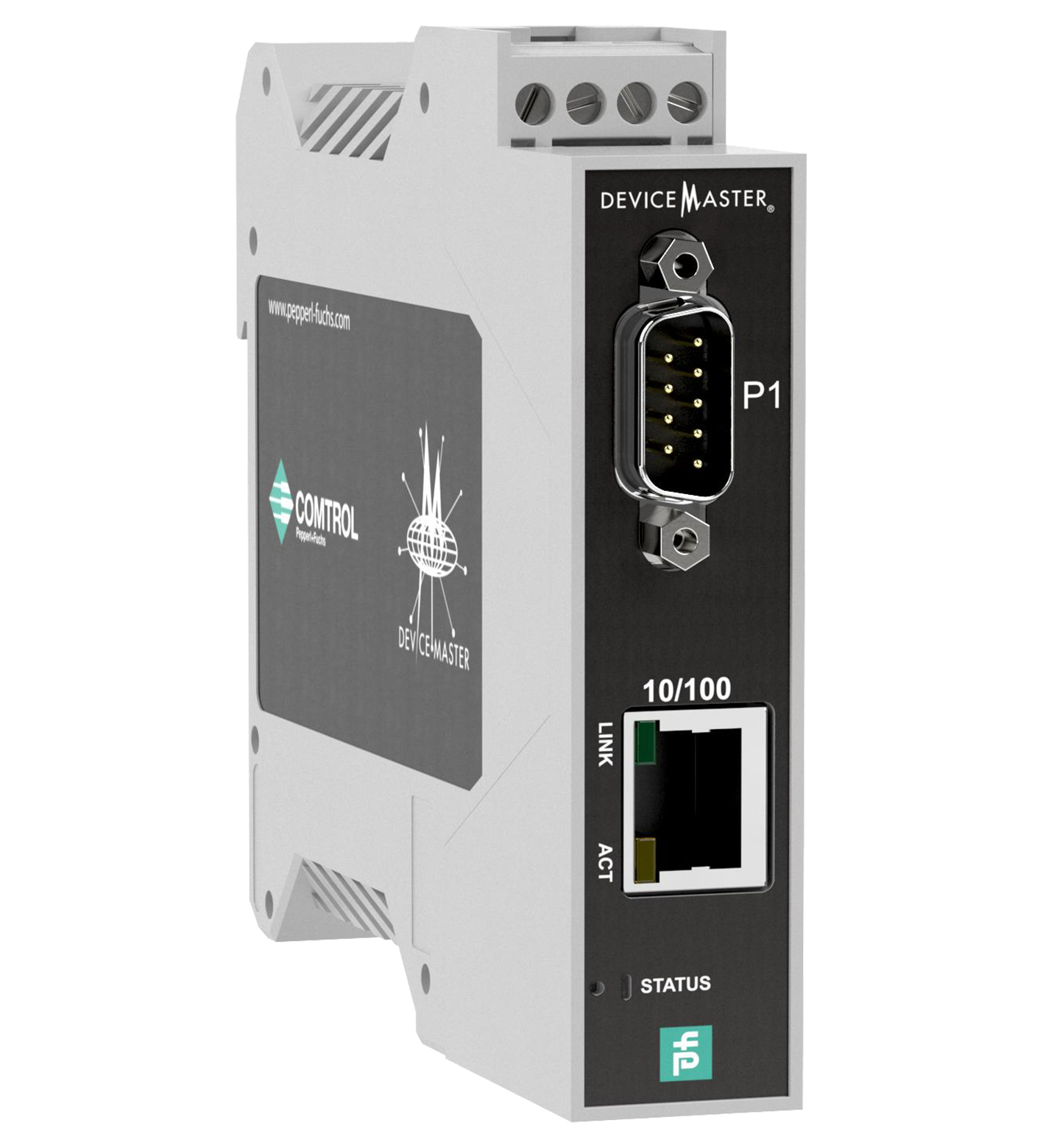

ICDM-RX/MOD-DB9/RJ45-DIN

Modbus Gateway. Modbus Gateway 1-port DIN Rail DB9. UL File Number: E360395. MTBF: 61.4 a. LED indication: see manual. Rated operating voltage: 5 ... 30 V DC. Power consumption: 1.3 W. General informa...

Modbus Gateway. Modbus Gateway 1-port DIN Rail DB9. UL File Number: E360395. MTBF: 61.4 a. LED indication: see manual. Rated operating voltage: 5 ... 30 V DC. Power consumption: 1.3 W. General information: Redundant power. Nominal voltage: 24 V DC. Current consumption: typ. 63 mA. Interface type: Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire). Physical: 1 x DB9. Protocol: Modbus/ASCII Modbus/RTU Raw/ASCII. Supported baud rates: 300 bps to 230Kbps. Interface type: Industrial Ethernet. Physical: 1 x RJ45. Protocol: MODBUS TCP/IP MQTT + Sparkplug B. Additional protocols: ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission. Transfer rate: 10/100 Mbps. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005 , EN 610006-4:2007 , EN 610006-4/A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005 , EN 610006-4:2007 , EN 610006-4/A1:2011. RoHS: EN IEC 63000:2018. Degree of protection: NEMA TS2. Electrical safety: CSA C22.2 No. 61010-1-12 / CSA C22.2 No. 61010-1-201 UL 61010-1 / UL 61010-1-201. Emitted interference: EN 61000-6-4, EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 61000-6-2. Ambient temperature: -40 ... 75 °C (-40 ... 167 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP20. Connection: Power Supply: screw terminals Fieldbus: 1 x RJ45 Inputs/outputs: 1 x DB9. Material: . HousingPolyamide, UL94V-0: . Housing: Polyamide, UL94V-0. Mass: 113.4g. Dimensions: . Height99.1 mmWidth22.9 mmLength114.8 mm: . Height: 99.1 mm. Width: 22.9 mm. Length: 114.8 mm. Construction type: Cabinet module. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
