Pepperl Fuchs

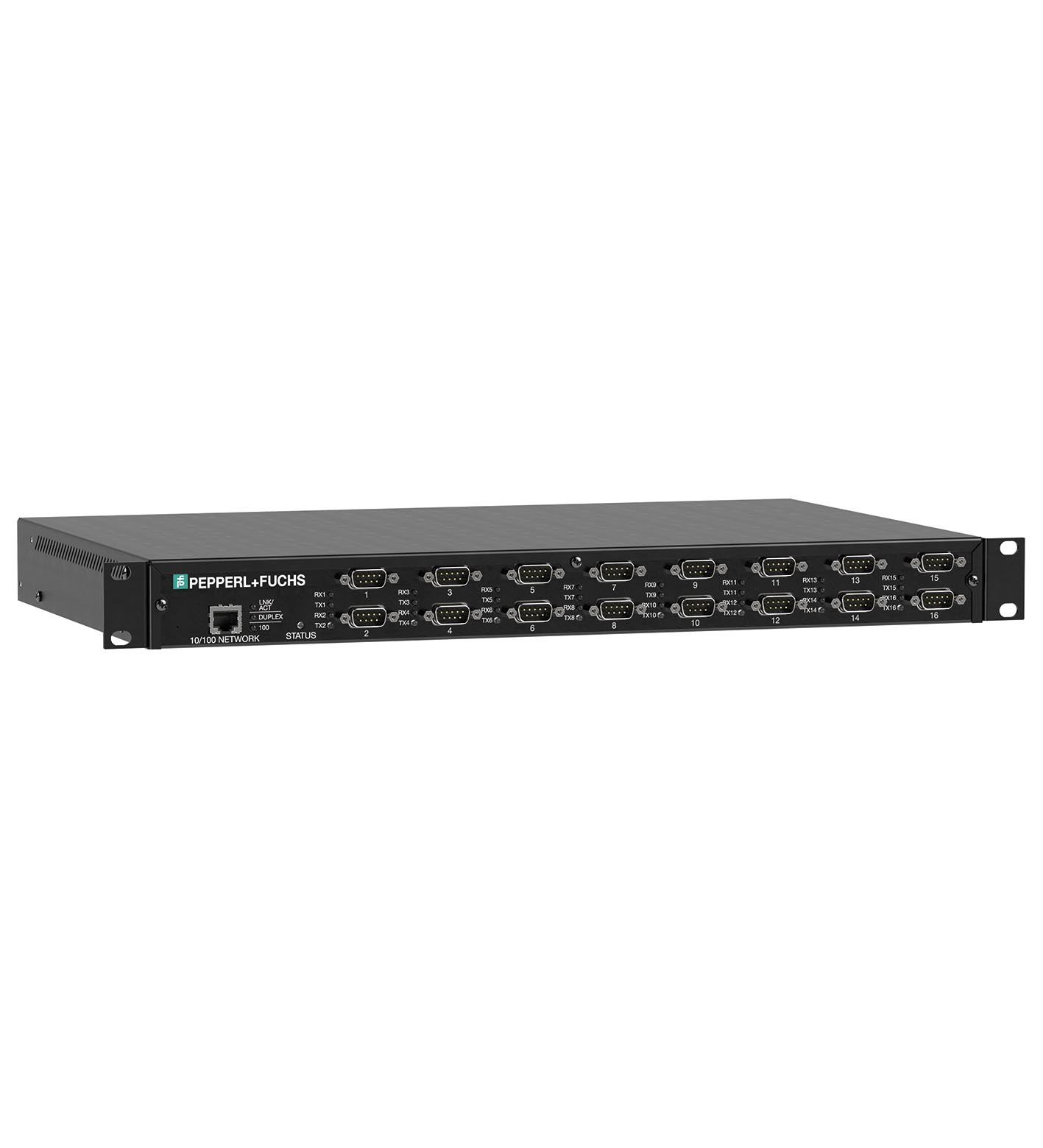

ICDM-RX/TCP-16DB9/RJ45-RM

Serial Device Server. Device Server 16-port rack mount DB9. UL File Number: E185802. MTBF: 15.5 a. LED indication: see manual. Rated operating voltage: 90 ... 260 V AC. Power consumption: 10.9 W. Nominal voltage: 120 V AC / 47 ... 63 Hz. Current consumption: 90 mA. Surge protection: 15 KV / 200 A for 1 ns. Interface type: Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire). Physical: 16 x DB9. Protocol: Raw serial. Supported baud rates: 300 bps to 230Kbps. Interface type: Industrial Ethernet. Physical: 1 x RJ45. Protocol: TCP/IP. Additional protocols: ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission. Transfer rate: 10/100 Mbps. Electromagnetic compatibility: . Directive 2014/30/EUEN 55032:2015+A11:2020 , EN 55035:2017/A11:2020: . Directive 2014/30/EU: EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020. Low voltage: . Directive 2014/35/EUEN 62368-1:2014: . Directive 2014/35/EU: EN 62368-1:2014. RoHS: EN IEC 63000:2018. Electrical safety: EN 62368-1:2014-08. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 55035:2017/A11:2020. Ambient temperature: -40 ... 75 °C (-40 ... 167 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP20. Connection: Internal power supply: US and EURO cords Fieldbus: 1 x RJ45 Inputs/outputs: 16 x DB9. Material: . Housingsteel, black coated: . Housing: steel, black coated. Mass: 2.9kg. Dimensions: . Height44.2 mmWidth275.3 mmLength438.2 mm: . Height: 44.2 mm. Width: 275.3 mm. Length: 438.2 mm. Construction type: Cabinet module. Mounting: Rack mount

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
