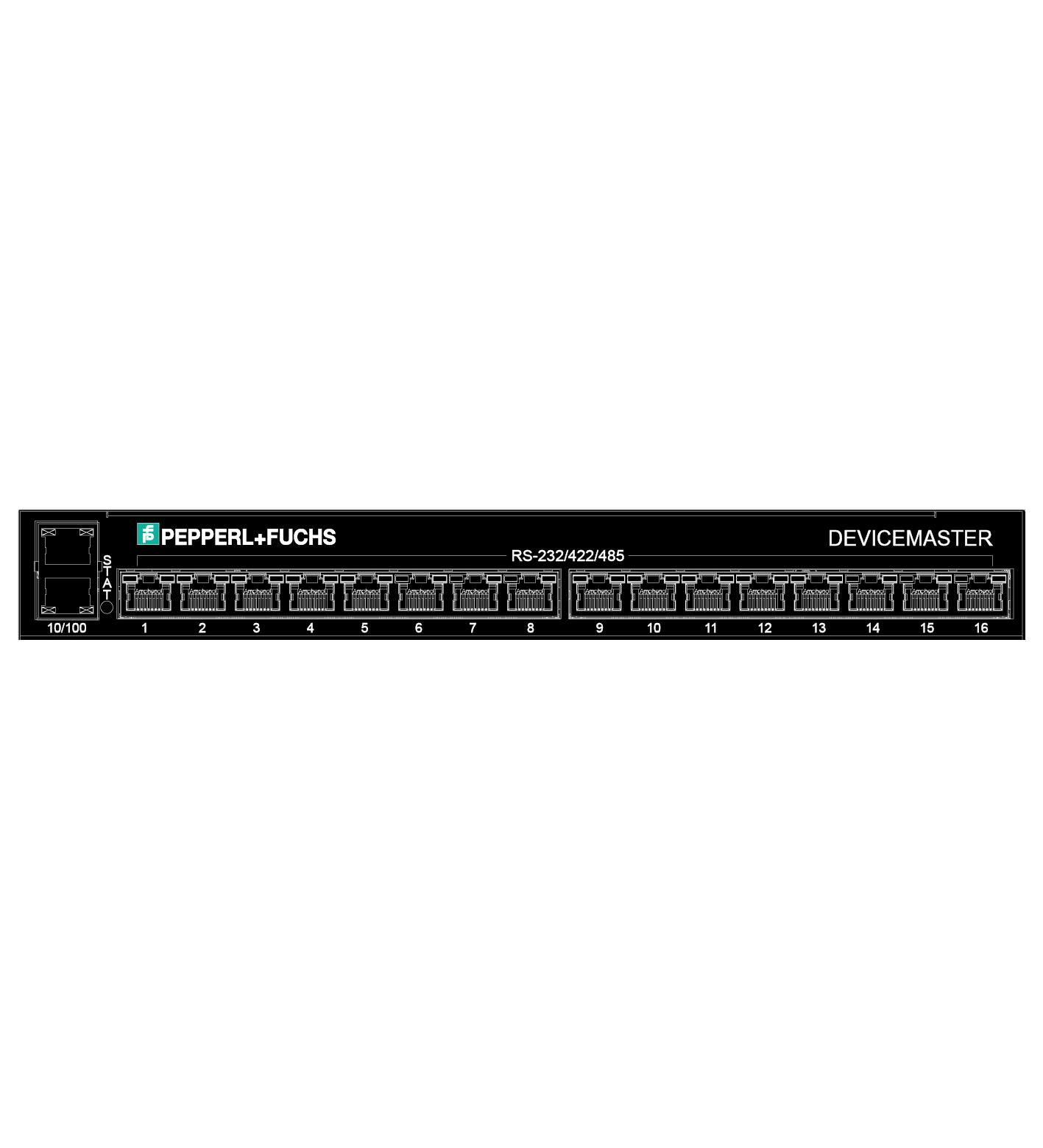

ICDM-RX/TCP-16RJ45/2RJ45-PM

Serial Device Server. Device Server 16-port panel mount RJ45. UL File Number: E185802. MTBF: 39.1 a. LED indication: see manual. Rated operating voltage: 9 ... 30 V DC. Power consumption: 4.5 W. Nomin...

Serial Device Server. Device Server 16-port panel mount RJ45. UL File Number: E185802. MTBF: 39.1 a. LED indication: see manual. Rated operating voltage: 9 ... 30 V DC. Power consumption: 4.5 W. Nominal voltage: 24 V DC. Current consumption: 185 mA. Interface type: Software selectable interfaces: RS-232 , RS-422 , RS-485 (2 and 4-wire). Physical: 16 x RJ45. Protocol: Raw serial. Supported baud rates: 300 bps to 230Kbps. Interface type: Industrial Ethernet. Physical: 2 x RJ45. Protocol: TCP/IP. Additional protocols: ARP, BOOTP, DHCP/RARP, HTTP, HTTPS, SSH, SSL/TLS, ICMP, RFC 1006 (ISO over TCP), SNMP (MIB-II), TCP/IP & UDP socket services, Telnet, and TFTP, and supports IP multicast data transmission. Transfer rate: 10/100 Mbps. Electromagnetic compatibility: . Directive 2014/30/EUEN 55032:2015+A11:2020 , EN 55035:2017/A11:2020: . Directive 2014/30/EU: EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020. RoHS: EN IEC 63000:2018. Electrical safety: EN 62368-1:2014-08. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 55035:2017/A11:2020. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP20. Connection: Power Supply: screw terminals Fieldbus: 2 x RJ45 Inputs/outputs: 8 x RJ45. Material: . Housingsteel, black coated: . Housing: steel, black coated. Mass: 1.11 kg. Dimensions: . Height38 mmWidth140 mmLength292 mm: . Height: 38 mm. Width: 140 mm. Length: 292 mm. Construction type: Cabinet module. Mounting: Panel

Brand	Pepperl Fuchs
Lifecycle status	active
