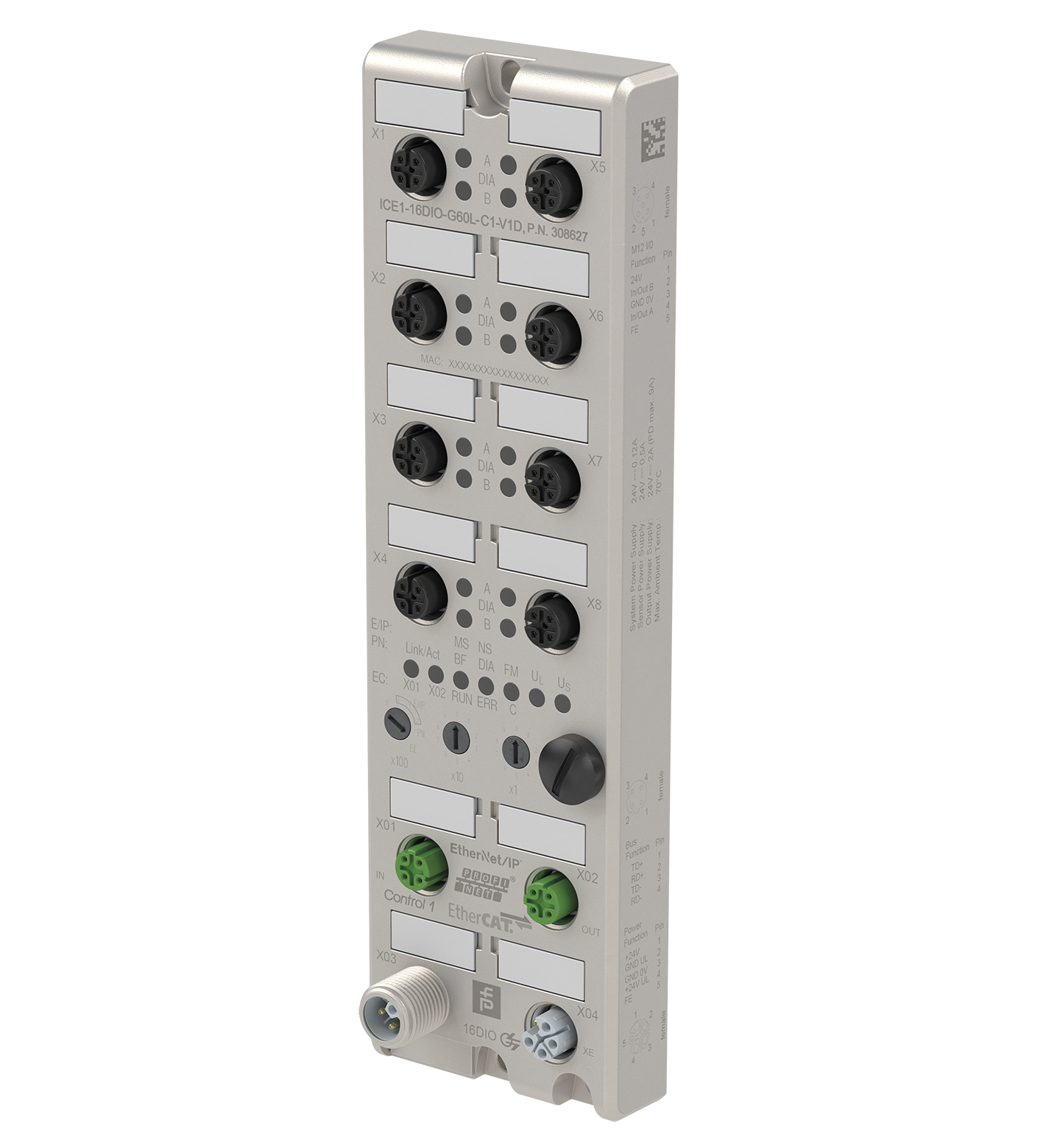

ICE1-16DIO-G60L-C1-V1D

Fieldbus module. Ethernet IO module with 16 configurable digital inputs/outputs and integrated logic. UL File Number: E223772. LED indication: see manual. Rotary switch: Setting the fieldbus protocol....

Fieldbus module. Ethernet IO module with 16 configurable digital inputs/outputs and integrated logic. UL File Number: E223772. LED indication: see manual. Rotary switch: Setting the fieldbus protocol. Rated operating voltage: 18 ... 30 V. Nominal voltage: 24 V DC. Current consumption: 120 mA. Current loading capacity: Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 9 A per module. Interface type: Industrial Ethernet. Physical: M12, D-coded. Protocol: PROFINET IO with media redundancy protocol (MRP) EtherNet/IP with Device Level Ring (DLR) EtherCAT®. Transfer rate: 10/100 Mbps. Number/Type: 16 digital inputs/outputs, configurableInputs: 2-, 3-, 4-wire PNP, DC, supply from USOutputs: 2-wire PNP, DC, supply from ULNo galvanic isolation between US and ULshort-circuit protected. Sensor supply: max. 500 mA per port (X1 - X8) via US. Output current: max. 2 A per channel / 4 A per port (X1 - X8) via UL. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011. Degree of protection: EN 60529:2000. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: EN 61131-2:2004. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Cold start temperature: -40 °C (-40 °F). Relative humidity: max. 95 %. Altitude: 0 ... 2000 m. Shock and impact resistance: 50 g, 11 ms, all axes. Vibration resistance: 15 g at 5 - 500 Hz. Pollution degree: 3. Contact elements: PA. Degree of protection: IP65 / IP67 / IP69K. Connection: Power Supply M12, L-coded Fieldbus M12, D-coded Inputs M12, A-coded. Material: . ContactsCuSn, gold-plated CuNi, gold-platedHousingDiecast zincSealFKM: . Contacts: CuSn, gold-plated CuNi, gold-plated. Housing: Diecast zinc. Seal: FKM. Mass: 500 g. Tightening torque, fastening screws: 1 Nm. Tightening torque, cable gland: 0.6 Nm. Dimensions: . Height200 mmWidth59.6 mmLength21 mm: . Height: 200 mm. Width: 59.6 mm. Length: 21 mm. Construction type: Field housing. Tightening torque of clamping screws: 0.5 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
