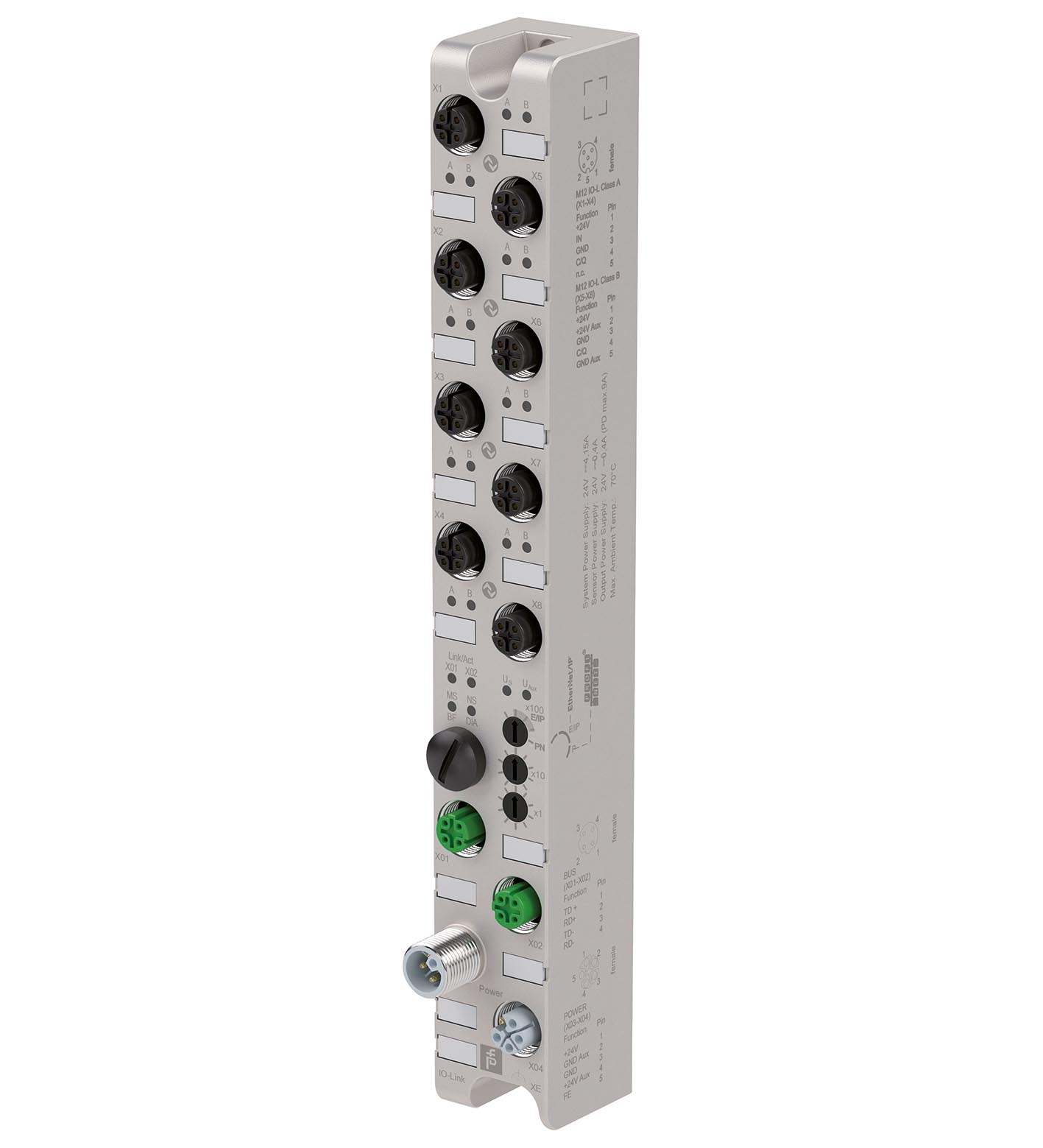

ICE1-8IOL-G30L-V1D

IO-Link master. Ethernet IO-Link module with 8 inputs/outputs. UL File Number: E223772. MTTF: 604 a. LED indication: see manual. Rotary switch: Setting the fieldbus protocol. Rated operating voltage:...

IO-Link master. Ethernet IO-Link module with 8 inputs/outputs. UL File Number: E223772. MTTF: 604 a. LED indication: see manual. Rotary switch: Setting the fieldbus protocol. Rated operating voltage: 18 ... 30 V. Nominal voltage: 24 V DC. Current consumption: typ. 180 mA. Current loading capacity: Max. 2 x 16 A per module (Loop-through current via L-coded power supply) Total current: max. 9 A per module. Galvanic isolation: between US and UL. Interface type: Industrial Ethernet. Physical: M12, D-coded. Protocol: PROFINET IO with media redundancy protocol (MRP) EtherNet/IP with Device Level Ring (DLR). Transfer rate: 10/100 Mbps. Number/Type: 4 x IO-Link Class A (X1 - X4)4 x IO-Link Class B (X5 - X8) configurable as: max. 8 IO-Link and 4 digital inputs max. 12 digital inputs max. 8 digital outputs and 4 digital inputs short-circuit protected. Sensor supply: max. 500 mA per port (X1 - X8) via L+ (pin 1). Output current: max. 500 mA per port (X1 - X8) Via C/Q (pin 4) In addition, a maximum of 2 A per port (X5 – X8) Via UAux (pin 2). Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005, EN 61000-6-4:2007+A1:2011. Degree of protection: EN 60529:2000. Fieldbus standard: Type 1 according to IEC 61131-2. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: EN 61131-2:2004. Ambient temperature: -20 ... 70 °C (-4 ... 158 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Cold start temperature: -40 °C (-40 °F). Relative humidity: max. 95 %. Altitude: 0 ... 2000 m. Shock and impact resistance: 50 g, 11 ms, all axes. Vibration resistance: 15 g at 5 - 500 Hz. Pollution degree: 3. Contact elements: PA. Degree of protection: IP65 / IP67 / IP69K. Connection: Power Supply M12, L-coded Fieldbus M12, D-coded Inputs/Outputs M12, A-coded. Material: . ContactsCuSn, gold-plated CuNi, gold-platedHousingDiecast zincSealFKM: . Contacts: CuSn, gold-plated CuNi, gold-plated. Housing: Diecast zinc. Seal: FKM. Mass: 480 g. Tightening torque, fastening screws: 1 Nm. Tightening torque, cable gland: max. 0.5 Nm. Dimensions: . Height225 mmWidth30 mmLength33.4 mm: . Height: 225 mm. Width: 30 mm. Length: 33.4 mm. Construction type: Field housing. Tightening torque of clamping screws: 0.5 Nm
