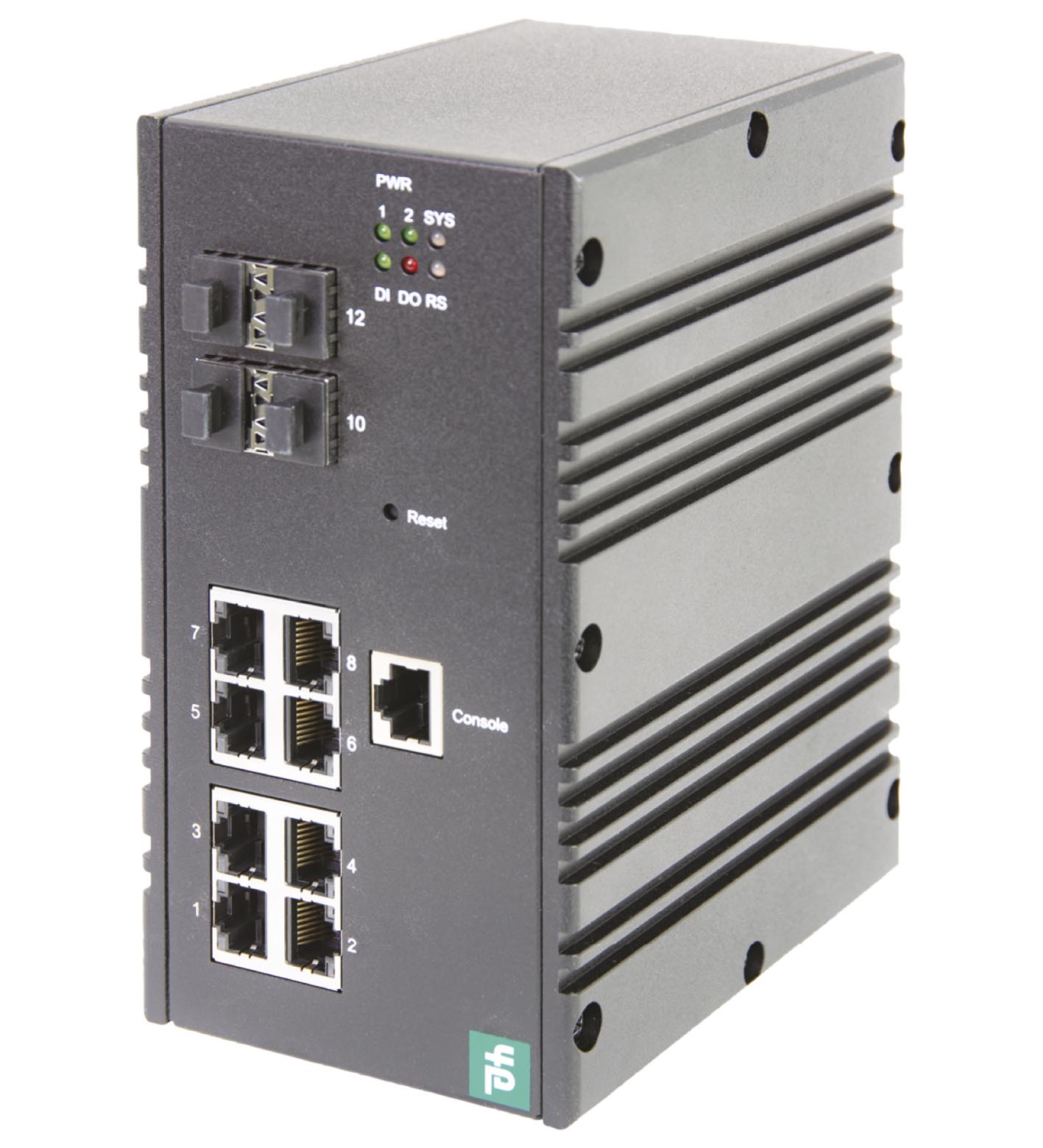

ICRL-M-8RJ45/4SFP-G-DIN

Ethernet switch managed gigabit. Ethernet managed gigabit switch with 8 RJ45 and 4 SFP ports. UL File Number: E185778. MTBF: 69 years. Connection type: RJ45 , SFP. Auto-MDI(-X): yes. Autonegotiation:...

Ethernet switch managed gigabit. Ethernet managed gigabit switch with 8 RJ45 and 4 SFP ports. UL File Number: E185778. MTBF: 69 years. Connection type: RJ45 , SFP. Auto-MDI(-X): yes. Autonegotiation: yes. Ethernet Interface: Industrial Ethernet. Transfer rate: 8 - 10BASE-T, 100BASE-TX, 1000BASE-T, 4 - SFP 100/1000 Mbps. Management: IPv4, IPv6, Console, HTTP, HTTPS, PortVision DX, SFTP, SNMP (v1, v2c, and v3), SSH, Telnet, TFTP. MIB: MIB-II, Bridge MIB, Ethernet-like-MIB, VLAN MIB, IGMP MIB, Private MIB. Monitoring: LLDP, Port Mirroring, RMON. Multicast: IGMP Query, IGMP Snooping, GMRP. Network performance: CFM, Jumbo Frames, QoS, CoSQueue Mapping, DSCP Priority Mapping. Network redundancy: STP, RSTP, MSTP, ERPS, redundant ring, LACP, static port aggregation. Network services: DHCP Server (with Option 82), NTP, IEEE 1588 PTPv2 over UDP/IP. Notifications: E-Mail, Fault Relay, SNMP Traps, Syslog. Safety: RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, MAC-Based Port Security. Traffic filtering: Storm Control (Broadcast, Multicast, and DLF), Rate Control, VLAN, Private VLAN, QinQTunneling, GVRP, IP Filtering, MAC Filtering, ARP Filtering. Cable type: Category 5e or better. Switch properties: . Hardware watchdog timer10 s reset timerMAC address table size16KOperating modeStore and forwardPacket buffer size1.5M Bytes shared memory for packet buffer with intelligent memory management unit for burst data trafficPriority queues8VLAN entriesIEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries; 3 VLAN link modes- Trunk mode, Hybrid mode and Link access mode: . Hardware watchdog timer: 10 s reset timer. MAC address table size: 16K. Operating mode: Store and forward. Packet buffer size: 1.5M Bytes shared memory for packet buffer with intelligent memory management unit for burst data traffic. Priority queues: 8. VLAN entries: IEEE 802.1Q Tag VLAN with 256 VLAN Entries and provides 2K GVRP entries; 3 VLAN link modes- Trunk mode, Hybrid mode and Link access mode. SFP support: 100BASE-FX Fiber, 1000BASE-SX/LX/LHX/XD/ZX. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyesIEEE 802.1p Class of Service (CoS)yesIEEE 802.3ab 1000BASE-TyesIEEE 802.1AB Link Layer Discovery Protocol (LLDP)yesIEEE 802.1Q VLAN and GVRPyesIEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)yesIEEE 802.1s Multiple Spanning Tree Protocol (MSTP)yesIEEE 802.3ad Link Aggregation Protocol (LACP)yesIEEE802.1ad QinQ TunnelingyesIEEE 802.1x Port Based Network Access ProtocolyesITU-T G.8032 ERPSyes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. IEEE 802.1p Class of Service (CoS): yes. IEEE 802.3ab 1000BASE-T: yes. IEEE 802.1AB Link Layer Discovery Protocol (LLDP): yes. IEEE 802.1Q VLAN and GVRP: yes. IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP): yes. IEEE 802.1s Multiple Spanning Tree Protocol (MSTP): yes. IEEE 802.3ad Link Aggregation Protocol (LACP): yes. IEEE802.1ad QinQ Tunneling: yes. IEEE 802.1x Port Based Network Access Protocol: yes. ITU-T G.8032 ERPS: yes. LED indication: see manual. Rated operating voltage: 10 ... 36 V DC. General information: Redundant power, digital output (relay output) rating 0.5A Max. @ 24V DC, Digital input. Nominal voltage: 24 V DC. Number/Type: 8 x RJ45 , 4 x SFP. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2, IEC 61000-6-2 , EN 61000-6-4, IEC 61000-6-4: . Directive 2014/30/EU: EN 61000-6-2, IEC 61000-6-2 , EN 61000-6-4, IEC 61000-6-4. Electrical safety: CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950. Emitted interference: CISPR 22 , FCC Part 15 Subpart B Class A , EN61000-6-4, IEC61000-6-4. Noise immunity: EN61000-6-2, IEC61000-6-2. Ambient temperature: -40 ... 75 °C (-40 ... 167 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP30. Connection: Power Supply Terminal Block (4-pin) Ethernet 8 x RJ45 , 4 x SFP. Material: . Housingaluminium, black: . Housing: aluminium, black. Mass: 1460 g. Dimensions: . Height160 mmWidth84 mmLength127 mm: . Height: 160 mm. Width: 84 mm. Length: 127 mm. Construction type: Cabinet module. Mounting: DIN rail or direct panel mounting

Brand	Pepperl Fuchs
Lifecycle status	active
