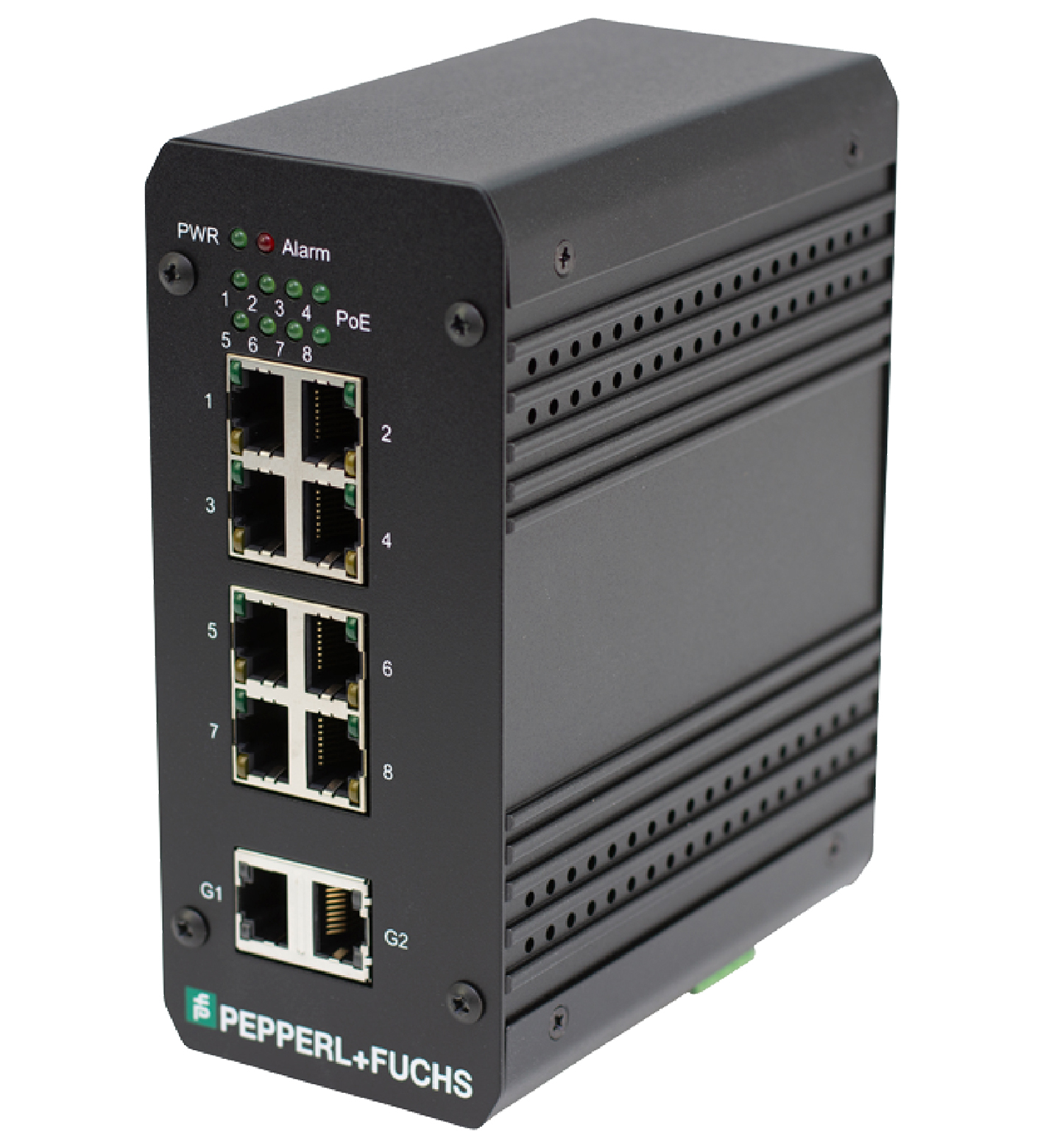

ICRL-U-10RJ45-PoE-B-DIN

Ethernet switch unmanaged PoE voltage-boost switch. RocketLinx ICRL-U-10RJ45-PoE-B-DIN. UL File Number: E185778. MTBF: 22.8 a. Connection type: RJ45. Auto-MDI(-X): yes. Autonegotiation: yes. Transfer...

Ethernet switch unmanaged PoE voltage-boost switch. RocketLinx ICRL-U-10RJ45-PoE-B-DIN. UL File Number: E185778. MTBF: 22.8 a. Connection type: RJ45. Auto-MDI(-X): yes. Autonegotiation: yes. Transfer rate: 8 - 10BASE-T, 100BASE-TX 10/100 Mbps 2 - 10BASE-T, 100BASE-TX, 1000BASE-T 10/100/1000 Mbps. Cable type: Category 5e or better. PoE features: . TypePoE output Mode: Alternative BMax. total power80 W: . Type: PoE output Mode: Alternative B. Max. total power: 80 W. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyesIEEE 802.1p Class of Service (CoS)yesIEEE 802.3ab 1000BASE-TyesIEEE802.3af Power over Ethernet (PoE)yes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. IEEE 802.1p Class of Service (CoS): yes. IEEE 802.3ab 1000BASE-T: yes. IEEE802.3af Power over Ethernet (PoE): yes. LED indication: see manual. Rated operating voltage: 8 ... 32 V DC. Power consumption: 15 W max. 24 V without PD loading. General information: Digital output (relay output) rating 1 A Max. @ 24 V DC, Digital input , Alarm relay for failure and event notification. Nominal voltage: 12 V , 24 V. Number/Type: 8 x RJ45 (Fast Ethernet) 2 x RJ45 (Gigabit). Electromagnetic compatibility: . Directive 2014/30/EUEN 55032:2015 , EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020 , EN 61000-6-2:2005 , EN 61000-6-4:2007 , EN 61000-6-4/A1:2011-02: . Directive 2014/30/EU: EN 55032:2015 , EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020 , EN 61000-6-2:2005 , EN 61000-6-4:2007 , EN 61000-6-4/A1:2011-02. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Electrical safety: CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 55032. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP30. Connection: Power Supply Terminal Block (4-pin) Ethernet 10 x RJ45. Material: . HousingAluminum: . Housing: Aluminum. Mass: 1.05 kg. Dimensions: . Height131.2 mm with DIN rail clipWidth66 mmLength149 mm: . Height: 131.2 mm with DIN rail clip. Width: 66 mm. Length: 149 mm. Construction type: Cabinet module. Mounting: DIN rail or direct panel mounting

Brand	Pepperl Fuchs
Lifecycle status	active
