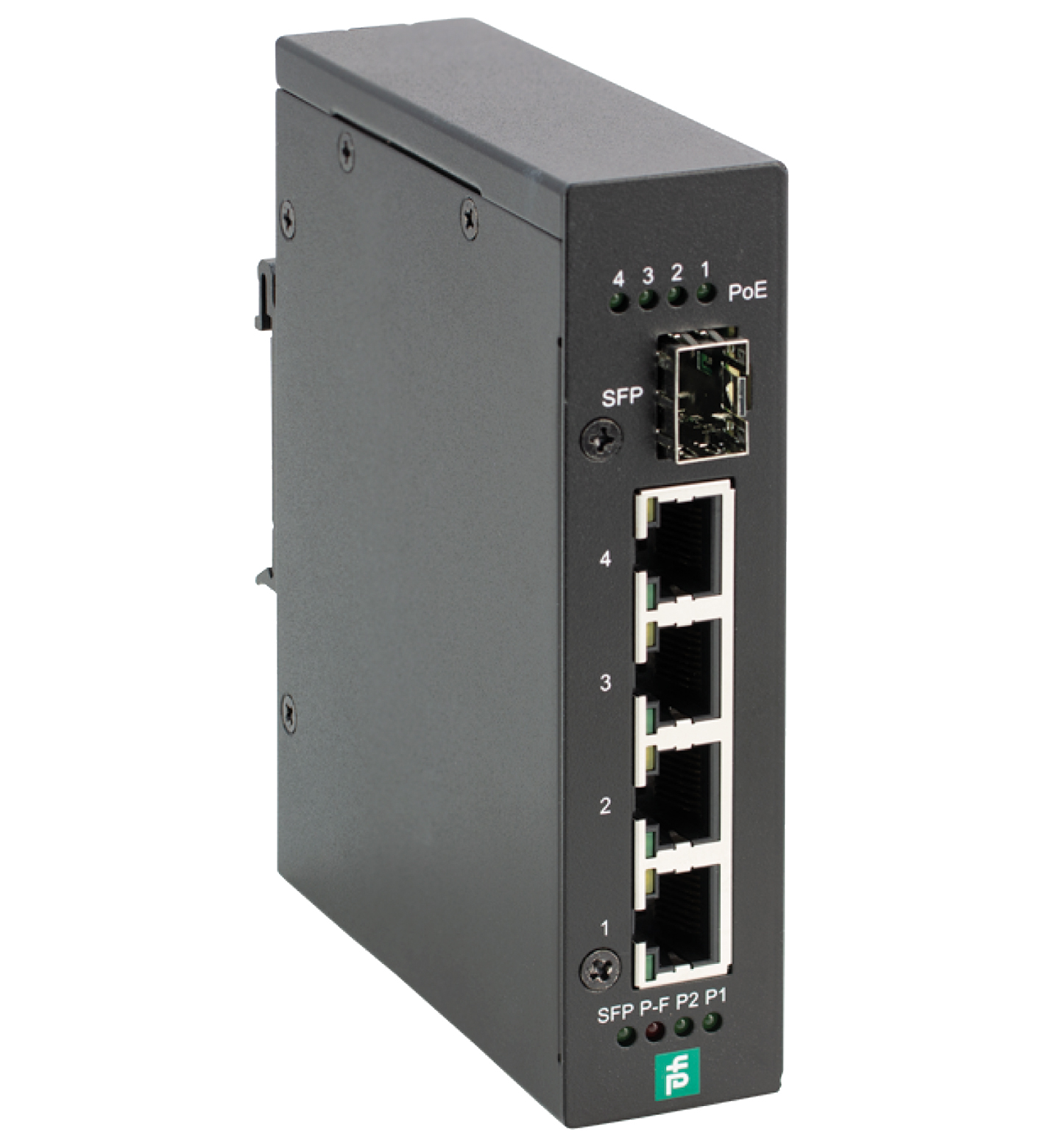

ICRL-U-4RJ45/SFP-PoE-G-DIN

Ethernet switch unmanaged PoE gigabit. Ethernet unmanaged PoE switch with 4 RJ45 gigabit ports, one gigabit SFP slot and fault alarm. UL File Number: E185778. MTBF: 45.3 years. Connection type: RJ45,...

Ethernet switch unmanaged PoE gigabit. Ethernet unmanaged PoE switch with 4 RJ45 gigabit ports, one gigabit SFP slot and fault alarm. UL File Number: E185778. MTBF: 45.3 years. Connection type: RJ45, SFP. Auto-MDI(-X): yes. Autonegotiation: yes. Transfer rate: 4 - 10BASE-T, 100BASE-TX, 1000BASE-T 10/100/1000 Mbps 1 - 100BASE-FX, 1000BASE-FX 100/1000 Mbps. Cable type: Category 5e or better. PoE features: . TypePoE output Mode: Alternative AMax. total power112 W @ 52 V: . Type: PoE output Mode: Alternative A. Max. total power: 112 W @ 52 V. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyesIEEE 802.3ab 1000BASE-TyesIEEE802.3af Power over Ethernet (PoE)yesIEEE802.3at Power over Ethernet (PoE) Plusyes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. IEEE 802.3ab 1000BASE-T: yes. IEEE802.3af Power over Ethernet (PoE): yes. IEEE802.3at Power over Ethernet (PoE) Plus: yes. LED indication: see manual. Rated operating voltage: 44 ... 57 V DC. Power consumption: 3.6 W @ 60 V DC. General information: Redundant power, polarity reverse protection, power fault alarm, relay output rating 1 A Max. @ 24 V DC. Nominal voltage: 48 V , 60 V. Number/Type: 4 x RJ45 , 1 x SFP. Electromagnetic compatibility: . Directive 2014/30/EUEN 50121-1:2017 , EN 50121-4:2016 , EN 55032:2015 , EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020 , EN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011: . Directive 2014/30/EU: EN 50121-1:2017 , EN 50121-4:2016 , EN 55032:2015 , EN 55032:2015+A11:2020 , EN 55035:2017/A11:2020 , EN 61000-6-2:2005 , EN 61000-6-4:2007 + A1:2011. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Electromagnetic compatibility: EN 50121-4. Electrical safety: CSA C22.2 No. 60950 / CSA C22.2 No. 60950/UL60950. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 55032, EN61000-6-2. Ambient temperature: -40 ... 75 °C (-40 ... 167 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP30. Connection: Power Supply Terminal Block Ethernet 4 x RJ45 , 1 x SFP. Material: . HousingAluminum: . Housing: Aluminum. Mass: 650 g. Dimensions: . Height120 mmWidth30 mmLength99 mm: . Height: 120 mm. Width: 30 mm. Length: 99 mm. Construction type: Cabinet module. Mounting: DIN rail or direct panel mounting

Brand	Pepperl Fuchs
Lifecycle status	active
