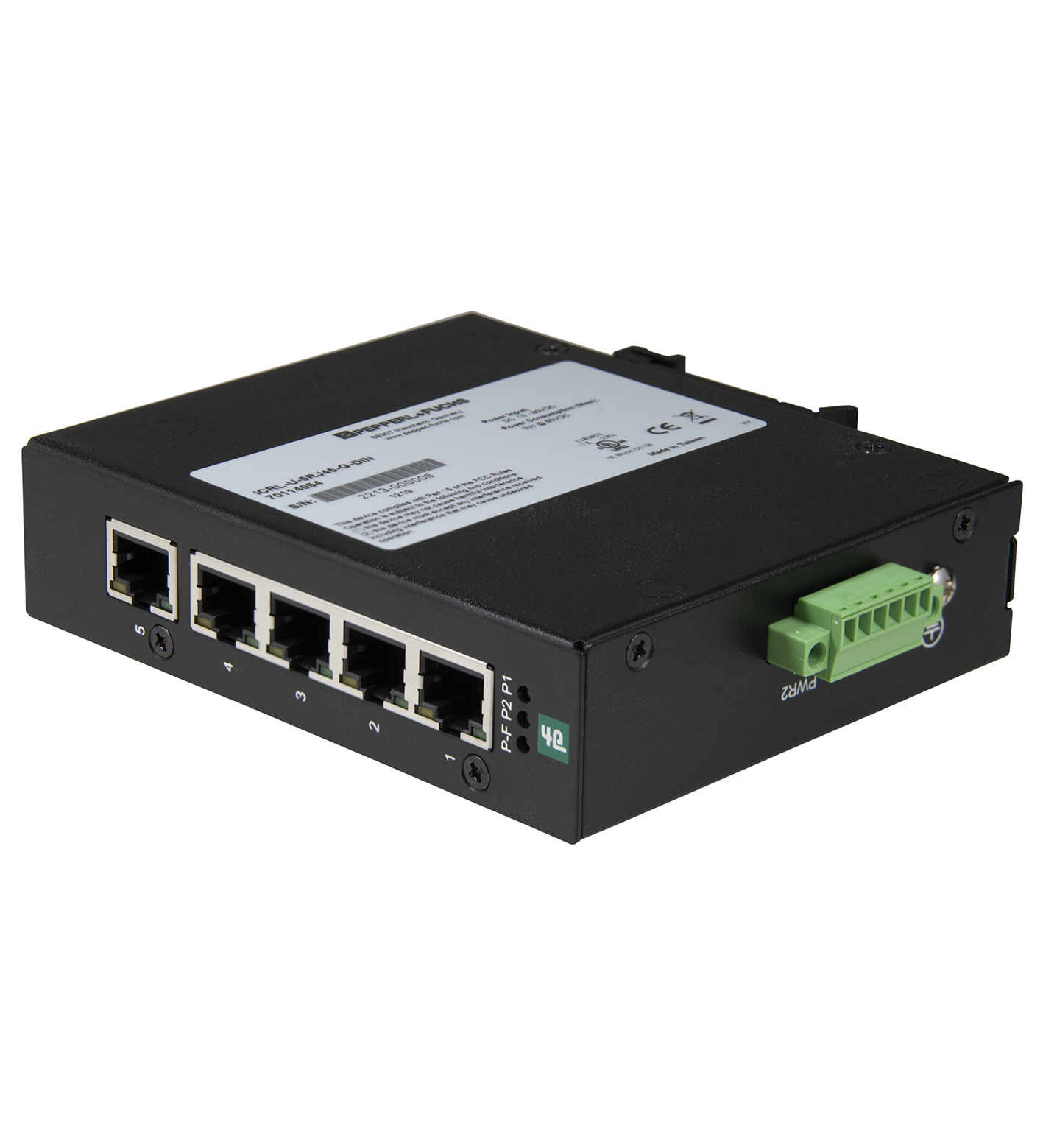

ICRL-U-5RJ45-G-DIN

Ethernet switch unmanaged gigabit. Ethernet unmanaged switch with 5 RJ45 gigabit ports and fault alarm. UL File Number: E185778. MTBF: 44.5 years. Auto-MDI(-X): yes. Autonegotiation: yes. Ethernet Int...

Ethernet switch unmanaged gigabit. Ethernet unmanaged switch with 5 RJ45 gigabit ports and fault alarm. UL File Number: E185778. MTBF: 44.5 years. Auto-MDI(-X): yes. Autonegotiation: yes. Ethernet Interface: Industrial Ethernet. Transfer rate: 10BASE-T, 100BASE-TX, 1000BASE-T. Cable type: Category 5e or better. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyesIEEE 802.3ab 1000BASE-Tyes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. IEEE 802.3ab 1000BASE-T: yes. LED indication: see manual. Rated operating voltage: 10 ... 60 V DC. Power consumption: 3 W. General information: Redundant power, power fault alarm, relay output rating 1A Max. @ 24V DC. Nominal voltage: 24 V DC. Physical: RJ45. Transfer rate: 10/100/1000 Mbps. Number/Type: 5 x RJ45. Electromagnetic compatibility: . Directive 2014/30/EUEN61000-6-2, EN55024 , EN61000-6-4, EN55032: . Directive 2014/30/EU: EN61000-6-2, EN55024 , EN61000-6-4, EN55032. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 55024, EN61000-6-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP30. Connection: Power Supply Terminal Block Ethernet 5 x RJ45. Material: . Housingaluminium, black: . Housing: aluminium, black. Mass: 650 g. Dimensions: . Height120 mmWidth30 mmLength99 mm: . Height: 120 mm. Width: 30 mm. Length: 99 mm. Construction type: Cabinet module. Mounting: DIN rail or direct panel mounting

Brand	Pepperl Fuchs
Lifecycle status	active
