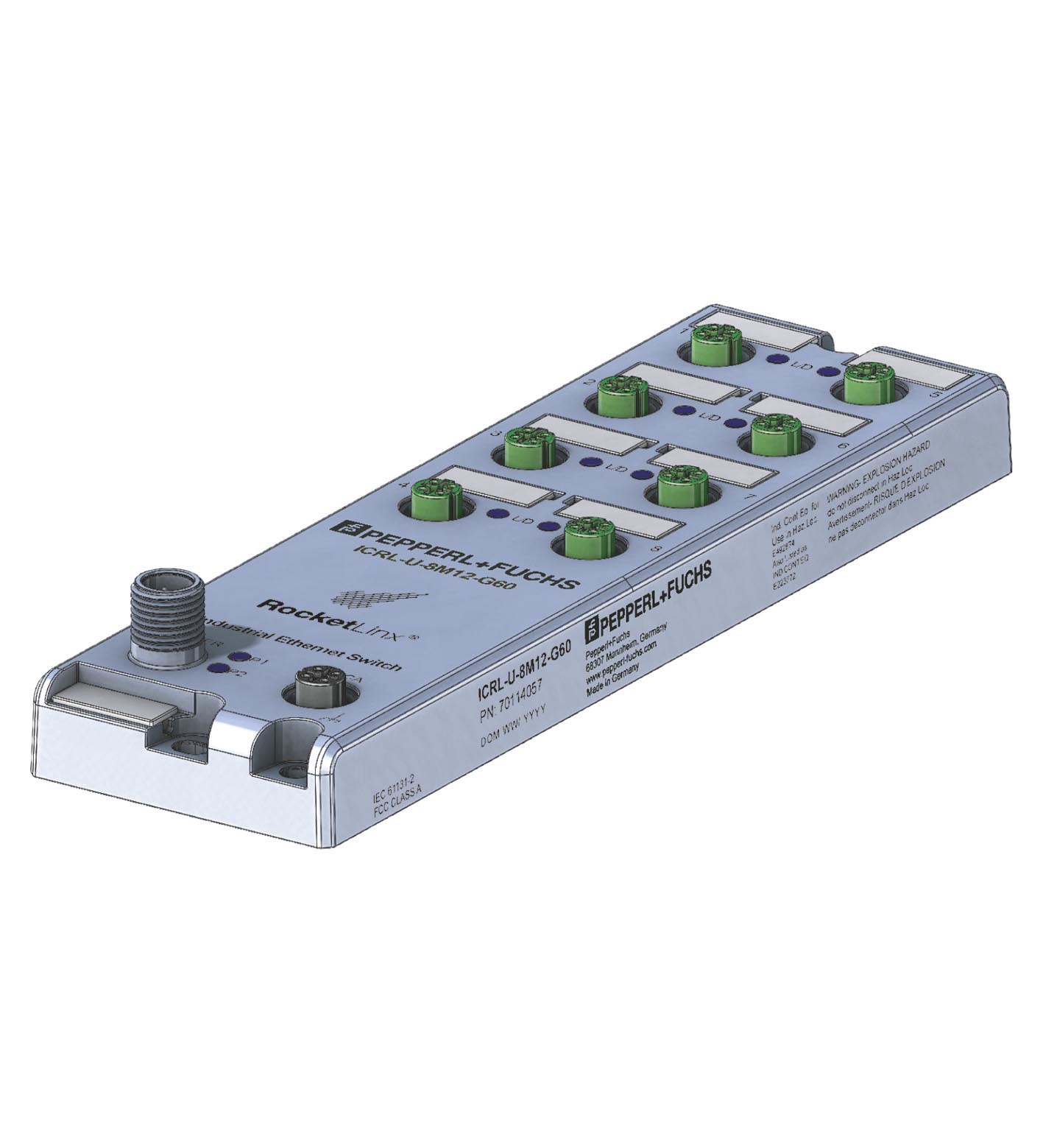

ICRL-U-8M12-G60

Ethernet switch unmanaged. Ethernet unmanaged IP67 switch with 8 M12 ports and extended temperature range. UL File Number: E223772. MTBF: 6779960 hours (25 °C), 2716143 hours (60°C). Connection type:...

Ethernet switch unmanaged. Ethernet unmanaged IP67 switch with 8 M12 ports and extended temperature range. UL File Number: E223772. MTBF: 6779960 hours (25 °C), 2716143 hours (60°C). Connection type: M12, D-coded. Auto-MDI(-X): yes. Autonegotiation: yes. Transfer rate: 10BASE-T, 100BASE-TX 10/100 Mbps. Cable type: Category 5e or better. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyesIEEE 802.1p Class of Service (CoS)yes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. IEEE 802.1p Class of Service (CoS): yes. LED indication: see manual. Rated operating voltage: 9.6 ... 45 V DC. Power consumption: 4.2 W. General information: A-Coded M12 power , Redundant power. Nominal voltage: 12 V , 24 V , 36 V. Number/Type: 8 x M12 (Fast Ethernet). Electromagnetic compatibility: . Directive 2014/30/EUEN 55032:2015 , EN 61000-6-2:2005 , EN 61131-2:2007 , EN 50121-4:2016 , EN 55032:2015+A11:2020: . Directive 2014/30/EU: EN 55032:2015 , EN 61000-6-2:2005 , EN 61131-2:2007 , EN 50121-4:2016 , EN 55032:2015+A11:2020. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Electrical safety: IEC 61010. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Shock resistance: IEC 60068-2-27. Permanent shock resistance: IEC 60068-2-64. Vibration resistance: IEC 60068-2-6. Standards: EN 50155. UL approval: E223772 , E492874. E1 Type approval: E1*118R03/02*0254*02. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 100 %. Degree of protection: IP65 , IP67. Connection: Power Supply M12 A-coded Ethernet 8 x M12 D-coded. Material: . HousingAluminum: . Housing: Aluminum. Mass: 470 g. Dimensions: . Height200 mmWidth60 mmLength31 mm: . Height: 200 mm. Width: 60 mm. Length: 31 mm. Construction type: Field housing. Mounting: Field mounted

Brand	Pepperl Fuchs
Lifecycle status	active
