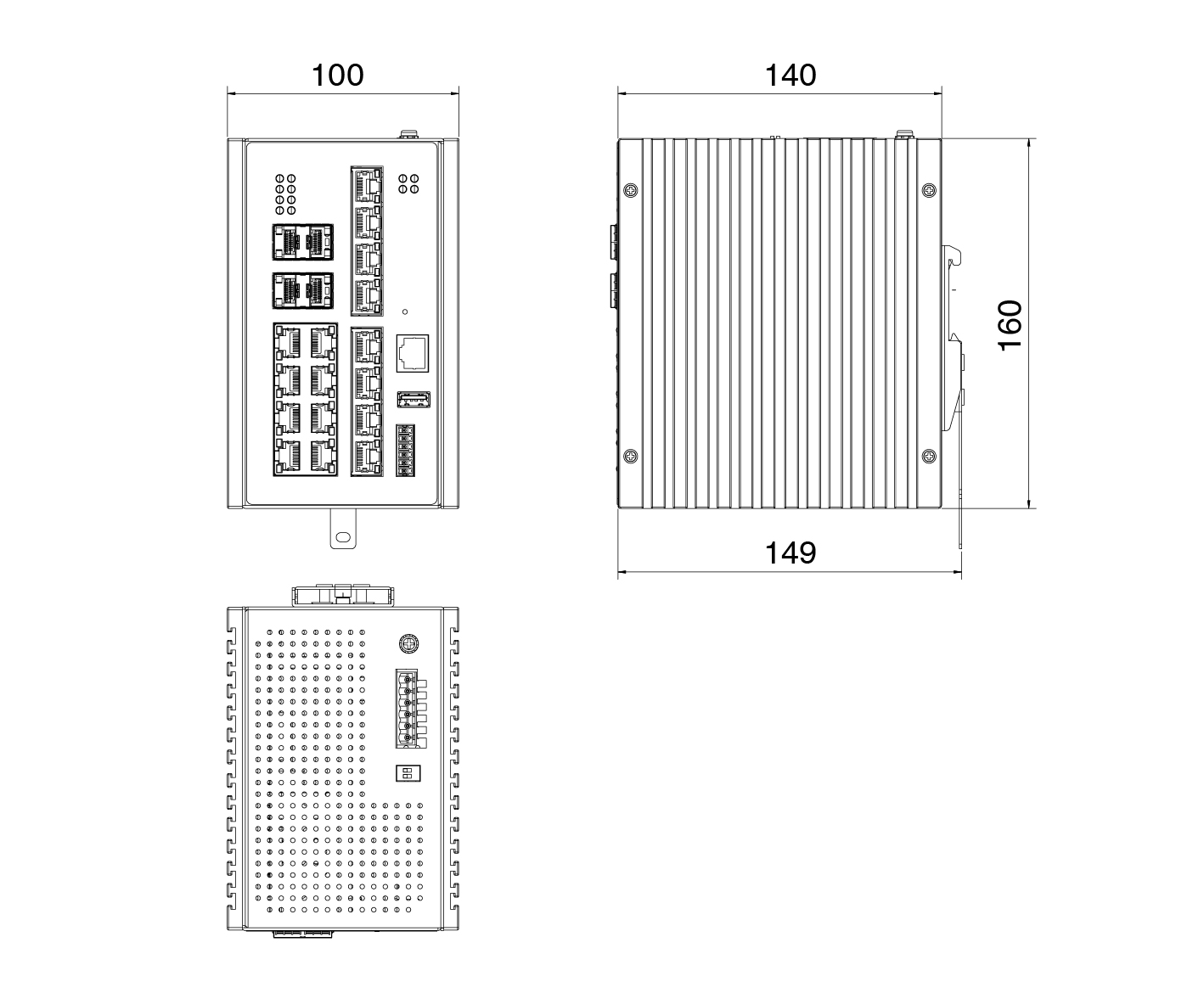

ICRL2-M-16RJ45/4SFP-10G-DIN

Ethernet switch managed gigabit. Ethernet managed gigabit switch with 10 gigabit SFP+. UL File Number: E223772. Auto-MDI(-X): yes. Autonegotiation: yes. Ethernet Interface: Industrial Ethernet. Transf...

Ethernet switch managed gigabit. Ethernet managed gigabit switch with 10 gigabit SFP+. UL File Number: E223772. Auto-MDI(-X): yes. Autonegotiation: yes. Ethernet Interface: Industrial Ethernet. Transfer rate: 16 - 10BASE-T, 100BASE-TX, 1000BASE-T, 4 - 1000BASE-SX/LX, 10GBASE-SR/LR/ER. Management: IPv4, IPv6, Console, HTTP, HTTPS, SNMP (v1, v2c, and v3), SSH, Telnet, USB port, Auto-provisioning. MIB: MIB-II, Bridge MIB, Ethernet-like-MIB, VLAN MIB, IGMP MIB, Private MIB. Monitoring: LLDP, Port Mirroring, RMON. Multicast: IGMP Query, IGMP Snooping. Network performance: Jumbo Frames, QoS, CoS Queue Mapping, DSCP Priority Mapping, Bandwidth Control. Network redundancy: STP, RSTP, MSTP, ERPS, LACP, static port aggregation, dual homing. Network services: DHCP Server (with Option 82), SNTP. Notifications: E-Mail, Fault Relay, SNMP Traps, Syslog. Safety: RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, IP/MAC-Based Port Security, ACL. Traffic filtering: Storm Control, Rate Control, VLAN, Private VLAN, QinQTunneling, GVRP, IP Filtering, MAC Filtering. Cable type: Category 5e or better. Switch properties: . MAC address table size16KOperating modeStore and forwardPacket buffer size12 MbitsPriority queues8VLAN entries4K: . MAC address table size: 16K. Operating mode: Store and forward. Packet buffer size: 12 Mbits. Priority queues: 8. VLAN entries: 4K. SFP support: Gigabit, 10 Gigabit, supports DDMI. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyesIEEE 802.1p Class of Service (CoS)yesIEEE 802.3ab 1000BASE-TyesIEEE 802.3z 1000BASE-SX/LX yesIEEE 802.3ae 10GBASE-SR/LR/ERyesIEEE 802.3az Energy Efficient EthernetyesIEEE 802.1AB Link Layer Discovery Protocol (LLDP)yesIEEE 802.1Q VLAN and GVRPyesIEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)yesIEEE 802.1s Multiple Spanning Tree Protocol (MSTP)yesIEEE 802.3ad Link Aggregation Protocol (LACP)yesIEEE802.1ad QinQ TunnelingyesIEEE 802.1x Port Based Network Access ProtocolyesITU-T G.8032 ERPSyes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. IEEE 802.1p Class of Service (CoS): yes. IEEE 802.3ab 1000BASE-T: yes. IEEE 802.3z 1000BASE-SX/LX: yes. IEEE 802.3ae 10GBASE-SR/LR/ER: yes. IEEE 802.3az Energy Efficient Ethernet: yes. IEEE 802.1AB Link Layer Discovery Protocol (LLDP): yes. IEEE 802.1Q VLAN and GVRP: yes. IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP): yes. IEEE 802.1s Multiple Spanning Tree Protocol (MSTP): yes. IEEE 802.3ad Link Aggregation Protocol (LACP): yes. IEEE802.1ad QinQ Tunneling: yes. IEEE 802.1x Port Based Network Access Protocol: yes. ITU-T G.8032 ERPS: yes. LED indication: see manual. Rated operating voltage: 12 ... 48 V DC. Power consumption: 30 W. General information: Redundant power, digital output (relay output) rating 1.0 A Max. @ 24 V DC. Transfer rate: 100 Mbit/s 1/10 Gbit/s. Number/Type: 16 x RJ45 , 4 x SFP+. Electromagnetic compatibility: . Directive 2014/30/EU: . Directive 2014/30/EU: . Degree of protection: NEMA TS2. Electrical safety: CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201. Emitted interference: . Noise immunity: . UL approval: E223772. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP30. Connection: Power Supply Terminal Block (6-pin) Ethernet 16 x RJ45 , 4 x SFP+. Material: . Housingaluminium, black: . Housing: aluminium, black. Mass: 1295 g. Dimensions: . Height160 mmWidth100 mmLength140 mm: . Height: 160 mm. Width: 100 mm. Length: 140 mm. Construction type: Cabinet module. Mounting: DIN rail or direct panel mounting

Brand	Pepperl Fuchs
Lifecycle status	active
