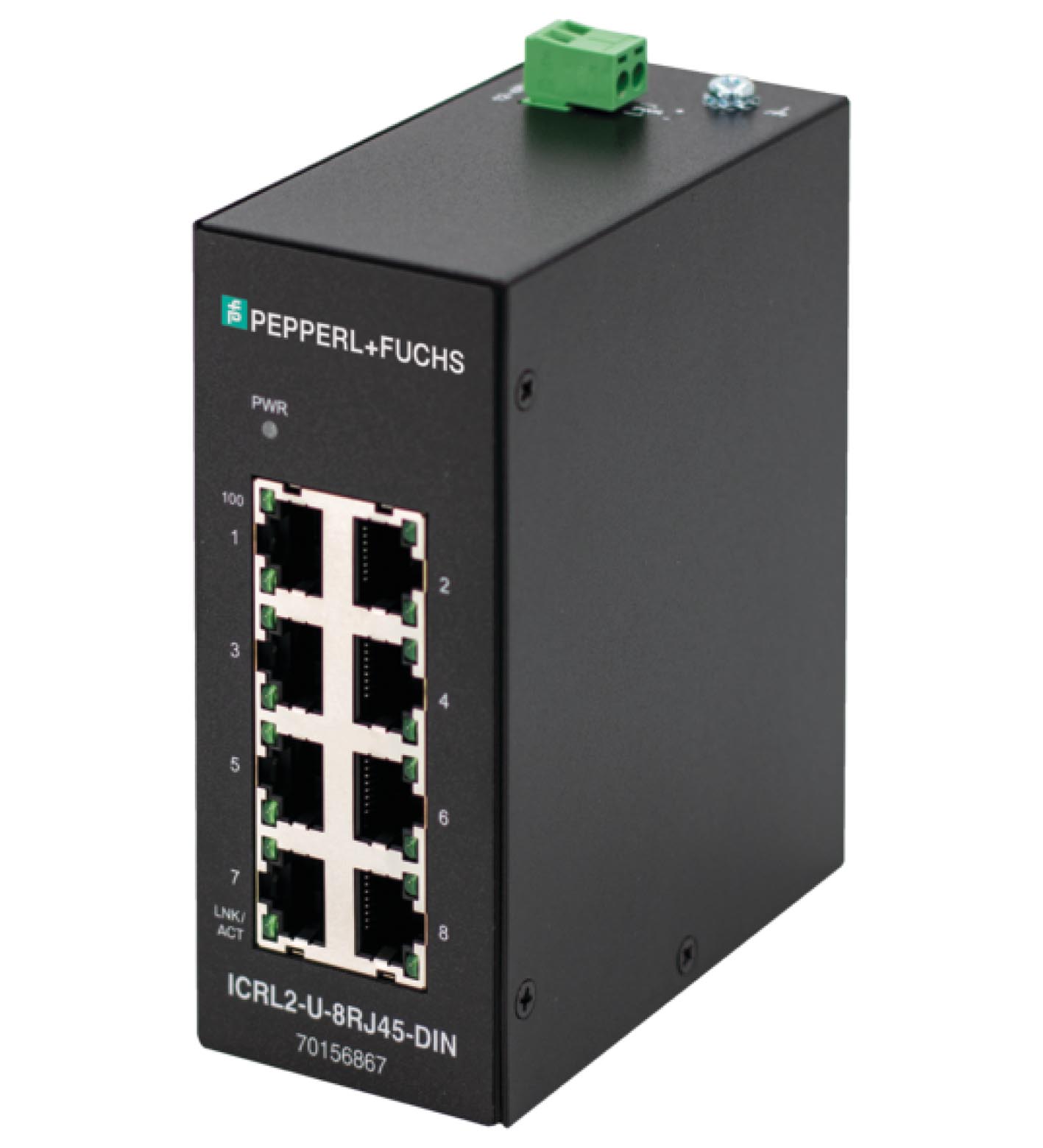

ICRL2-U-8RJ45-DIN

Ethernet switch unmanaged. Ethernet unmanaged switch with 8 RJ45 ports and extended temperature range. UL File Number: E223772. MTBF: 70.6 a. Number of ports: 8. Auto-MDI(-X): yes. Autonegotiation: ye...

Ethernet switch unmanaged. Ethernet unmanaged switch with 8 RJ45 ports and extended temperature range. UL File Number: E223772. MTBF: 70.6 a. Number of ports: 8. Auto-MDI(-X): yes. Autonegotiation: yes. Ethernet Interface: Industrial Ethernet. Transfer rate: 10BASE-T, 100BASE-TX. Network performance: Jumbo frame size: 1552 bytes Broadcast storm protection for broadcast packet. Cable type: Category 5e or better. Switch properties: . MAC address table size1K: . MAC address table size: 1K. Standards: . IEEE 802.3 10BASE-TyesIEEE 802.3u 100BASE-TXyesIEEE 802.3x Flow Control and Back-pressureyes: . IEEE 802.3 10BASE-T: yes. IEEE 802.3u 100BASE-TX: yes. IEEE 802.3x Flow Control and Back-pressure: yes. LED indication: see manual. Rated operating voltage: 12 ... 48 V DC. Power consumption: 3 W. General information: Current overload protection, Power input polarity protection. Nominal voltage: 24 V DC. Current consumption: typ. 7 mA. Physical: RJ45. Transfer rate: 10/100 Mbps. Number/Type: 8 x RJ45. Electromagnetic compatibility: . Directive 2014/30/EUEN 55011:2016-04 EN 55011/A1:2017-04 EN 55011/A11:2020-03 EN 55032:2015-07 EN 55032/A11:2020-03 EN 55035:2017-07 EN 55035/A11:2020-05: . Directive 2014/30/EU: EN 55011:2016-04 EN 55011/A1:2017-04 EN 55011/A11:2020-03 EN 55032:2015-07 EN 55032/A11:2020-03 EN 55035:2017-07 EN 55035/A11:2020-05. Electrical safety: CSA C22.2 No. 61010-1-12 UL 61010-1, IEC 61010-2-201. Emitted interference: EN 55032, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 32. Noise immunity: EN 55035:2017/A11:2020. Shock resistance: EN 60068-2-27. Vibration resistance: IEC 60068-2-6. Ambient temperature: -40 ... 75 °C (-40 ... 167 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 95 %. Altitude: 0 ... 3048 m. Degree of protection: IP30. Connection: Power Supply Terminal Block Ethernet 8 x RJ45. Material: . HousingAluminum: . Housing: Aluminum. Mass: 435 g. Dimensions: . Height115.8 mmWidth50 mmLength99.6 mm: . Height: 115.8 mm. Width: 50 mm. Length: 99.6 mm. Construction type: Cabinet module. Mounting: DIN rail or direct panel mounting

Brand	Pepperl Fuchs
Lifecycle status	active
