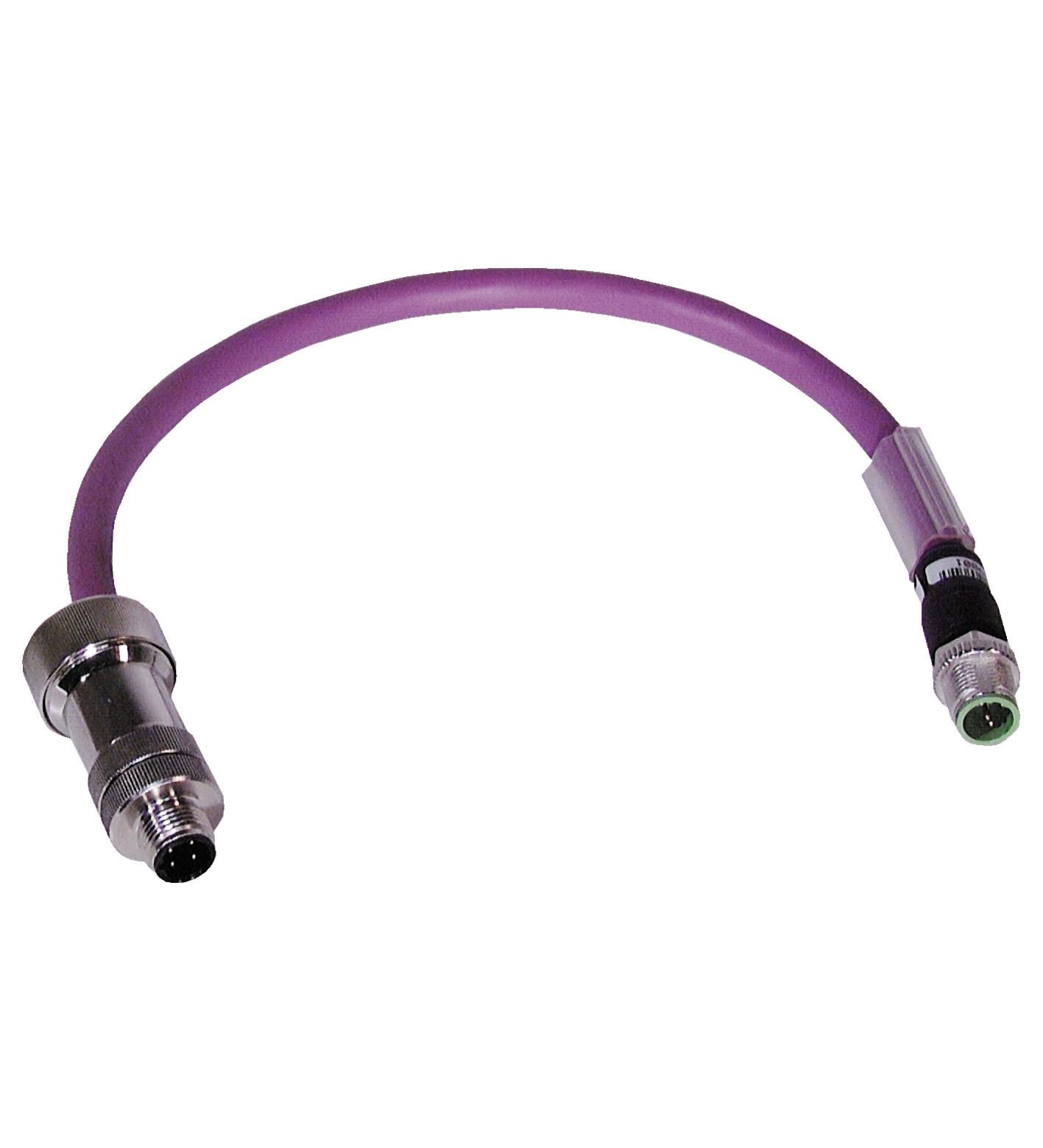

ICZ-2T/TR-0,2M-PUR ABG-V15B-G

Terminal cable. Terminal cable for PROFIBUS with terminal resistor. Number of pins: 2 + 1 x screen. Transfer rate: max. 12 MBit/s. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/...

Terminal cable. Terminal cable for PROFIBUS with terminal resistor. Number of pins: 2 + 1 x screen. Transfer rate: max. 12 MBit/s. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP65. Connection: 4-pin M12 connector/socket, B-coded for PROFIBUS. Material: . ContactsCuZn, gold-platedBodyPUR / PA 66CablePURSlotted nutCuZn, nickel-plated: . Contacts: CuZn, gold-plated. Body: PUR / PA 66. Cable: PUR. Slotted nut: CuZn, nickel-plated. Cable: . Sheath diameter∅ 8 mmColorvioletCores2 x 0.64 mm2LengthLapprox. 28 cm: . Sheath diameter: ∅ 8 mm. Color: violet. Cores: 2 x 0.64 mm2. Length: approx. 28 cm. Mass: approx. 90 g

Brand	Pepperl Fuchs
Lifecycle status	active
