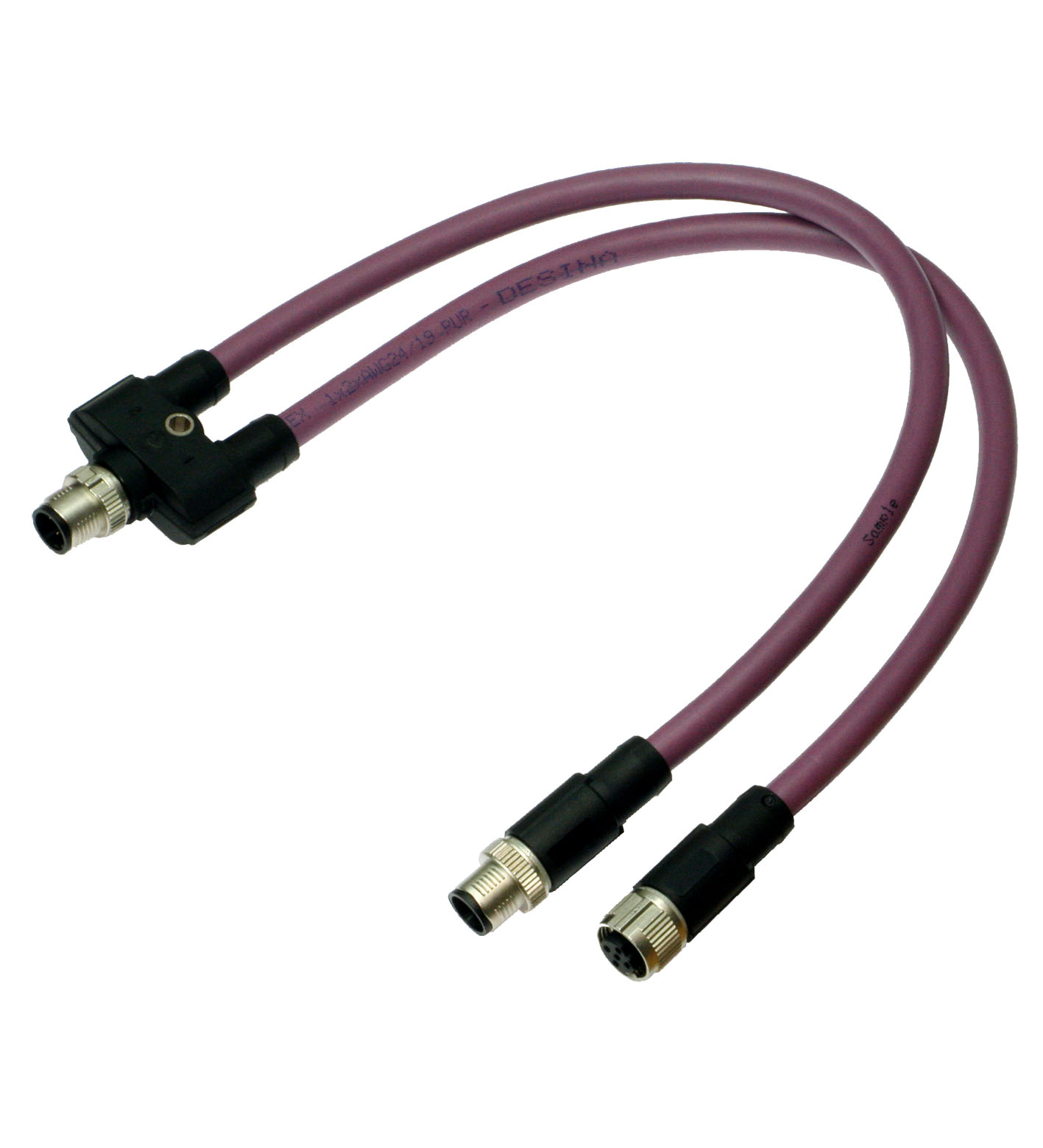

ICZ-3T-0,3M-PUR ABG-V15B-G

Y connection cable. Y connection cable for PROFIBUS. Number of pins: 2 + 1 x screen. Transfer rate: max. 12 MBit/s. Rated voltage: 30 V. Rated current: 4 A. Volume resistance: ≤ 5 mΩ. Ambient temperat...

Y connection cable. Y connection cable for PROFIBUS. Number of pins: 2 + 1 x screen. Transfer rate: max. 12 MBit/s. Rated voltage: 30 V. Rated current: 4 A. Volume resistance: ≤ 5 mΩ. Ambient temperature: Body: -25 ... 90 °C (-13 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Degree of protection: IP65. Connection: 4-pin M12 connector/socket, B-coded for PROFIBUS. Material: . ContactsCuSnContact surfaceNi/AuBodyTPU, blackCablePURSlotted nutZinc diecast, nickel-platedCore insulationPE: . Contacts: CuSn. Contact surface: Ni/Au. Body: TPU, black. Cable: PUR. Slotted nut: Zinc diecast, nickel-plated. Core insulation: PE. Cable: . Sheath diameter∅ 7.8 mmBending radius> 10 x cable diameter, movable installation ColorvioletCores2 x 0.25 mm2LengthL0.3 m: . Sheath diameter: ∅ 7.8 mm. Bending radius: > 10 x cable diameter, movable installation. Color: violet. Cores: 2 x 0.25 mm2. Length: 0.3 m. Mass: approx. 105 g

Brand	Pepperl Fuchs
Lifecycle status	active
