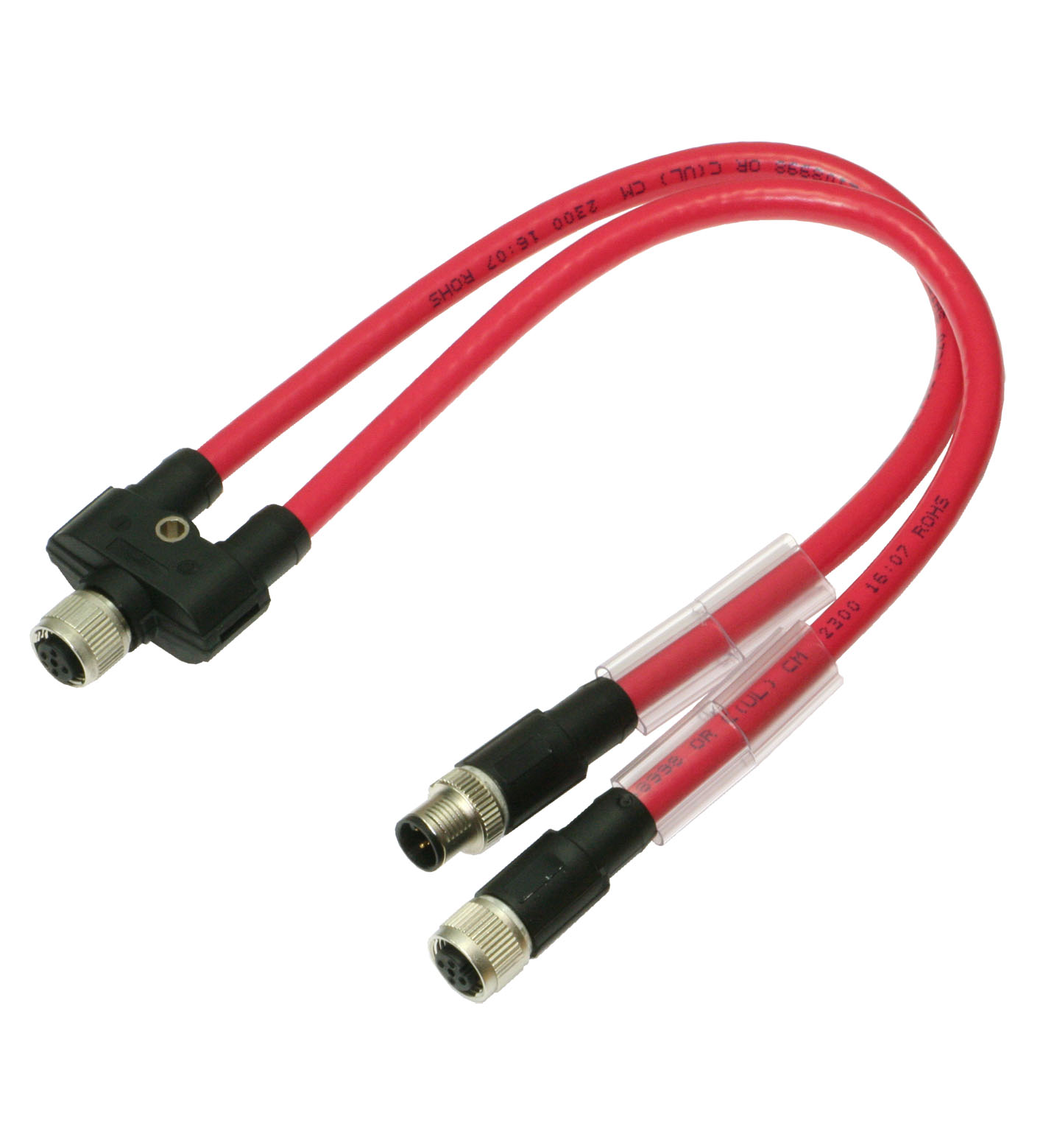

ICZ-3T-0,3M-PVC-CCL-V1-G

Y connection cable. Y connection cable for CC-Link. Number of pins: 3 + 1 x screen. Transfer rate: max. 10 MBit/s. Rated voltage: 60 V. Rated current: 4 A. Volume resistance: ≤ 5 mΩ. Ambient temperatu...

Y connection cable. Y connection cable for CC-Link. Number of pins: 3 + 1 x screen. Transfer rate: max. 10 MBit/s. Rated voltage: 60 V. Rated current: 4 A. Volume resistance: ≤ 5 mΩ. Ambient temperature: Body: -25 ... 90 °C (-13 ... 194 °F) cable, fixed installation: -30 ... 60 °C (-22 ... 140 °F) cable, movable installation: -5 ... 60 °C (23 ... 140 °F). Degree of protection: IP65. Connection: M12 connector/socket, 4-pin, A-coded for CC-Link. Material: . ContactsCuZnContact surfaceNi/AuBodyTPU, blackCablePVCSlotted nutZinc diecast, nickel-platedCore insulationPE: . Contacts: CuZn. Contact surface: Ni/Au. Body: TPU, black. Cable: PVC. Slotted nut: Zinc diecast, nickel-plated. Core insulation: PE. Cable: . Sheath diameter∅ 7.7 mmBending radius> 10 x cable diameter, fixed installation ColorredCores3 x 0.5 mm2LengthL0.3 m: . Sheath diameter: ∅ 7.7 mm. Bending radius: > 10 x cable diameter, fixed installation. Color: red. Cores: 3 x 0.5 mm2. Length: 0.3 m. Mass: approx. 112 g

Brand	Pepperl Fuchs
Lifecycle status	active
