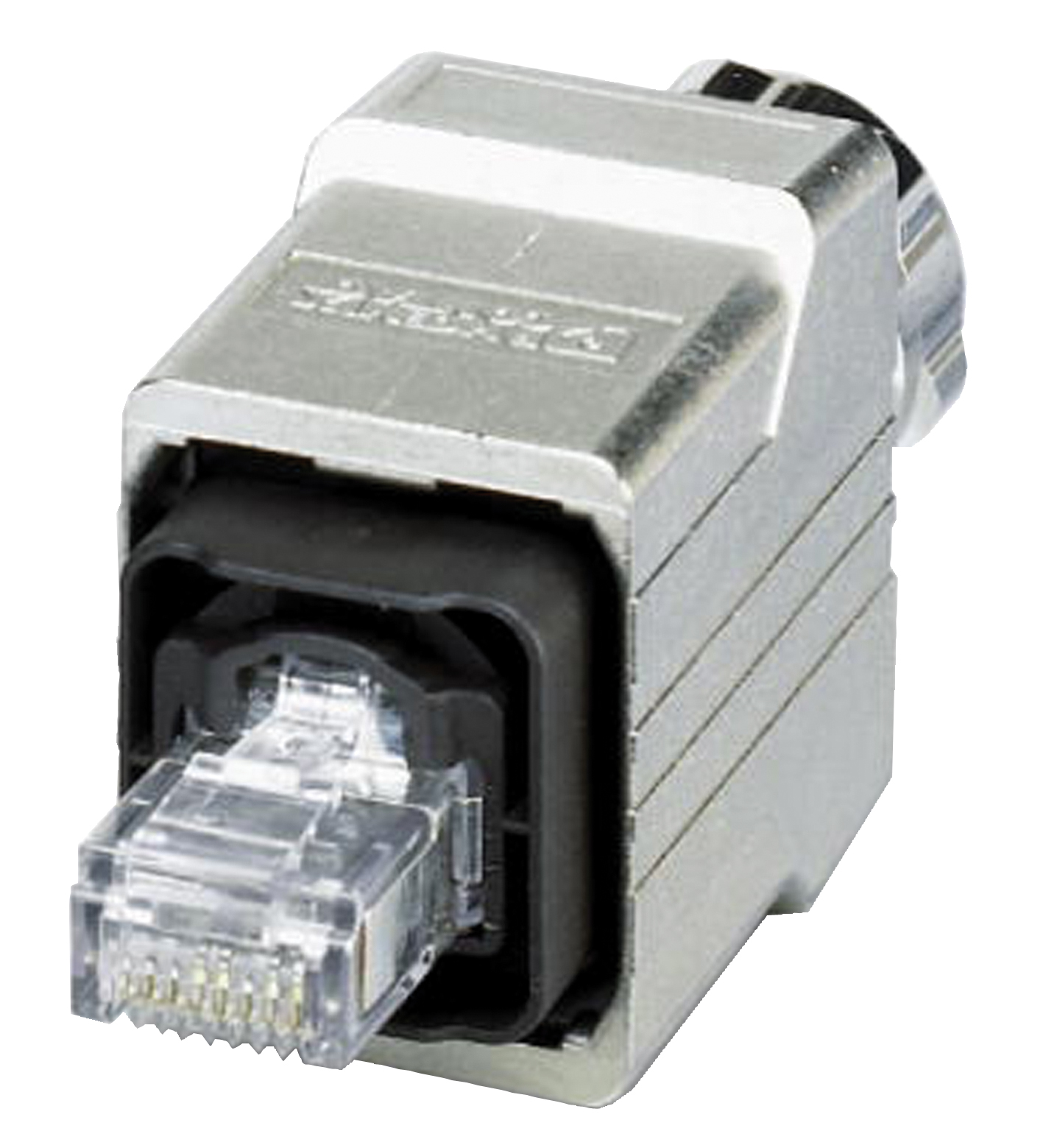

ICZ-AIDA1-V45

Connector. Plug connector for RJ-45. Number of pins: 4. Rated current: 1.75 A. Nominal voltage: 50 V. Standard conformity: . StandardsCAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001): . Standards: CAT5 (...

Connector. Plug connector for RJ-45. Number of pins: 4. Rated current: 1.75 A. Nominal voltage: 50 V. Standard conformity: . StandardsCAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001): . Standards: CAT5 (IEC 11801:2002) , CAT5e (TIA 568B:2001). Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP65 / IP67. Connection: RJ-45. Material: . ContactsCu alloyContact surfaceAuHousingZinc diecast, nickel-plated: . Contacts: Cu alloy. Contact surface: Au. Housing: Zinc diecast, nickel-plated. Cable: . Sheath diameter5 mm … 8 mmCore diameter0.13 mm² … 0.32 mm² (solid)0.14 mm² … 0.36 mm² (stranded)26 … 22 AWG (solid/stranded): . Sheath diameter: 5 mm … 8 mm. Core diameter: 0.13 mm² … 0.32 mm² (solid)0.14 mm² … 0.36 mm² (stranded)26 … 22 AWG (solid/stranded). Mass: 68 g

Brand	Pepperl Fuchs
Lifecycle status	active
