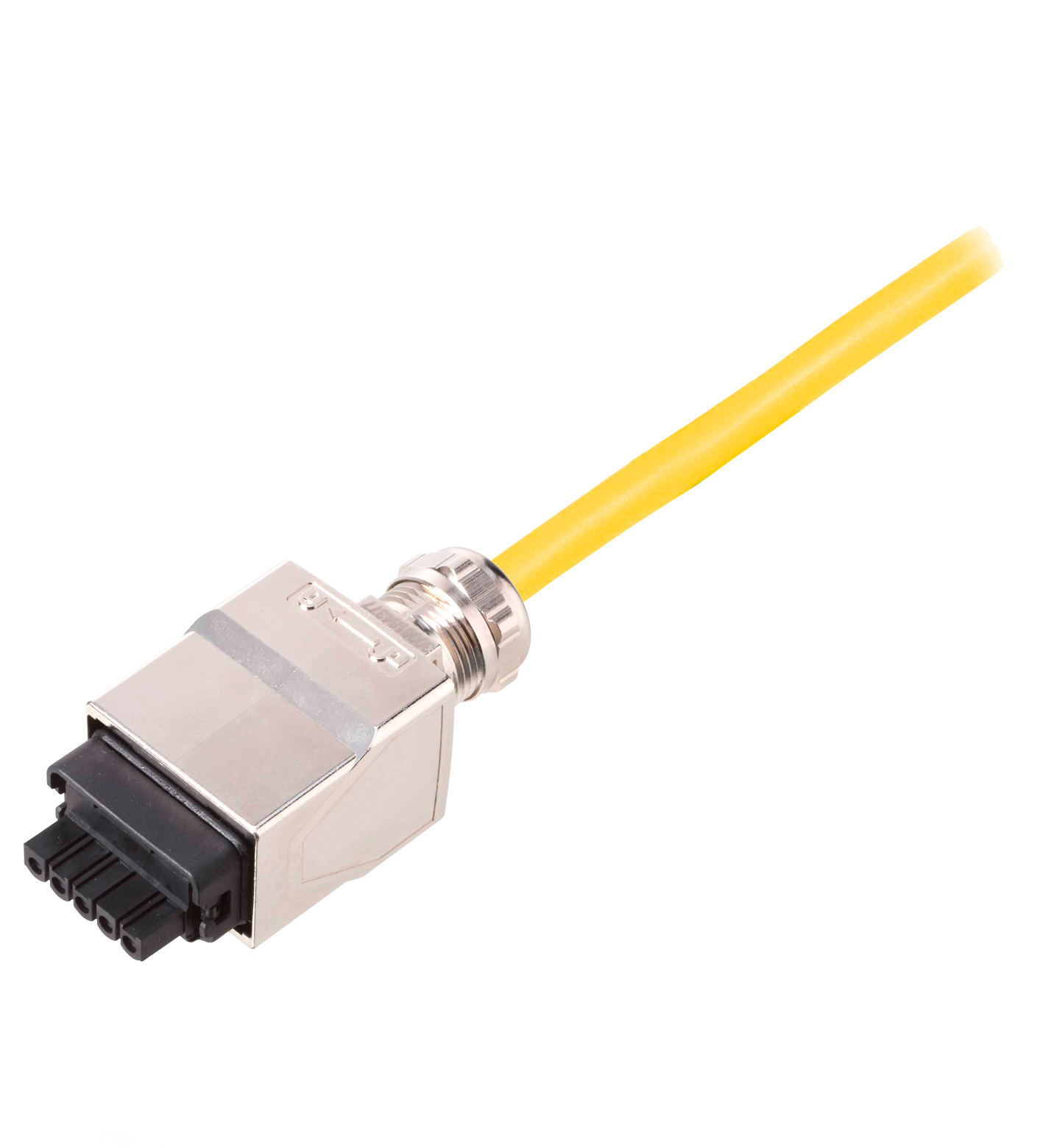

ICZ-AIDA3-MSTB-5M-PUR

Connection cable. Connection cable MSTB to cable tail. Number of pins: 2. Rated current: 16 A. Nominal voltage: 24 V. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP65. C...

Connection cable. Connection cable MSTB to cable tail. Number of pins: 2. Rated current: 16 A. Nominal voltage: 24 V. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP65. Connection: 5-pin Combicon socket to open cable end. Material: . HousingZinc die-casting, nickel-platedCore insulationTPE: . Housing: Zinc die-casting, nickel-plated. Core insulation: TPE. Cable: . Sheath diameter10 mmBending radius> 10 x cable diameter, movable installation > 4 x cable diameter, fixed installationColoryellow (RAL 1016)Cores2 x 2.5 mm2LengthL5 m: . Sheath diameter: 10 mm. Bending radius: > 10 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Color: yellow (RAL 1016). Cores: 2 x 2.5 mm2. Length: 5 m

Brand	Pepperl Fuchs
Lifecycle status	active
