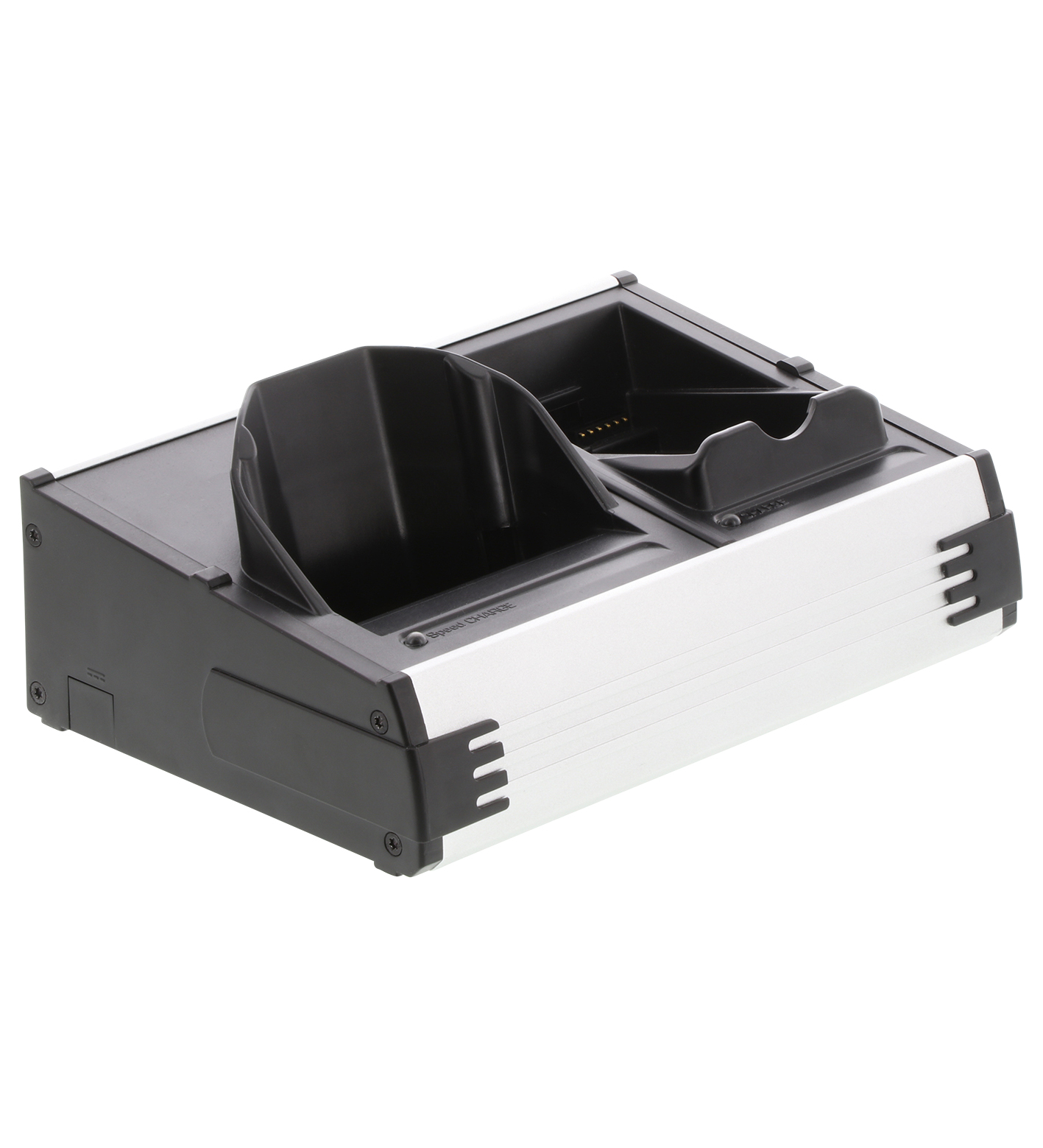

ICZ-HH50-CHARGER

Docking station. Docking station for IC-HH51 and IC-HH52. LED red/green: Power: green/off Charge: green/red Connect: green/off. Input voltage: 100 V AC ... 240 V AC 47 ... 63 Hz. Input current: max. 1...

Docking station. Docking station for IC-HH51 and IC-HH52. LED red/green: Power: green/off Charge: green/red Connect: green/off. Input voltage: 100 V AC ... 240 V AC 47 ... 63 Hz. Input current: max. 1 A. Output current: 2.4 A. Output voltage: 15 V DC. Electromagnetic compatibility: . Directive 2014/30/EUEN 301489-1 EN 55032 EN 55035: . Directive 2014/30/EU: EN 301489-1 EN 55032 EN 55035. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. CE conformity: CE. Ambient temperature: 0 ... 40 °C (32 ... 104 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: Ethernet: RJ-45 USB 2.0 (Type A). Material: . Housingaluminum / ABS: . Housing: aluminum / ABS. Mass: approx. 557 g. Dimensions: . Height82 mmWidth200 mmLength138 mm: . Height: 82 mm. Width: 200 mm. Length: 138 mm

Brand	Pepperl Fuchs
Lifecycle status	active
