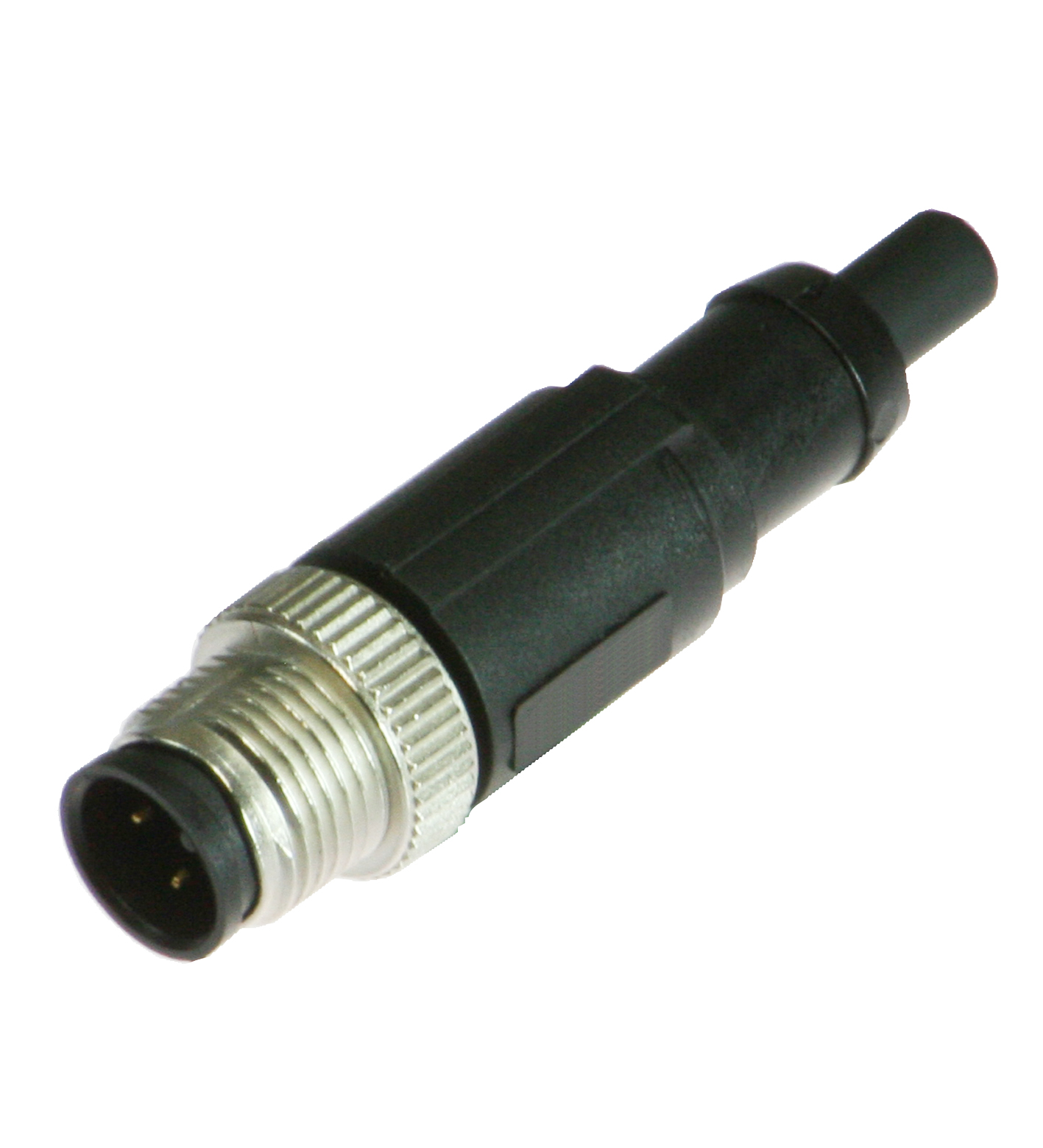

ICZ-TR-V1-110R

Terminal resistor. Terminal resistor for CC-Link. Number of pins: 4. Rated voltage: 24 V. Rated current: 20 mA at 40 °C. Resistor: R = 110 Ω. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directi...

Terminal resistor. Terminal resistor for CC-Link. Number of pins: 4. Rated voltage: 24 V. Rated current: 20 mA at 40 °C. Resistor: R = 110 Ω. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Degree of protection: IP65 / IP67 / IP69K. Connection: 4-pin M12 connector, for CC-Link. Material: . ContactsCuZnContact surfaceNi/AuBodyTPU, black: . Contacts: CuZn. Contact surface: Ni/Au. Body: TPU, black

Brand	Pepperl Fuchs
Lifecycle status	active
