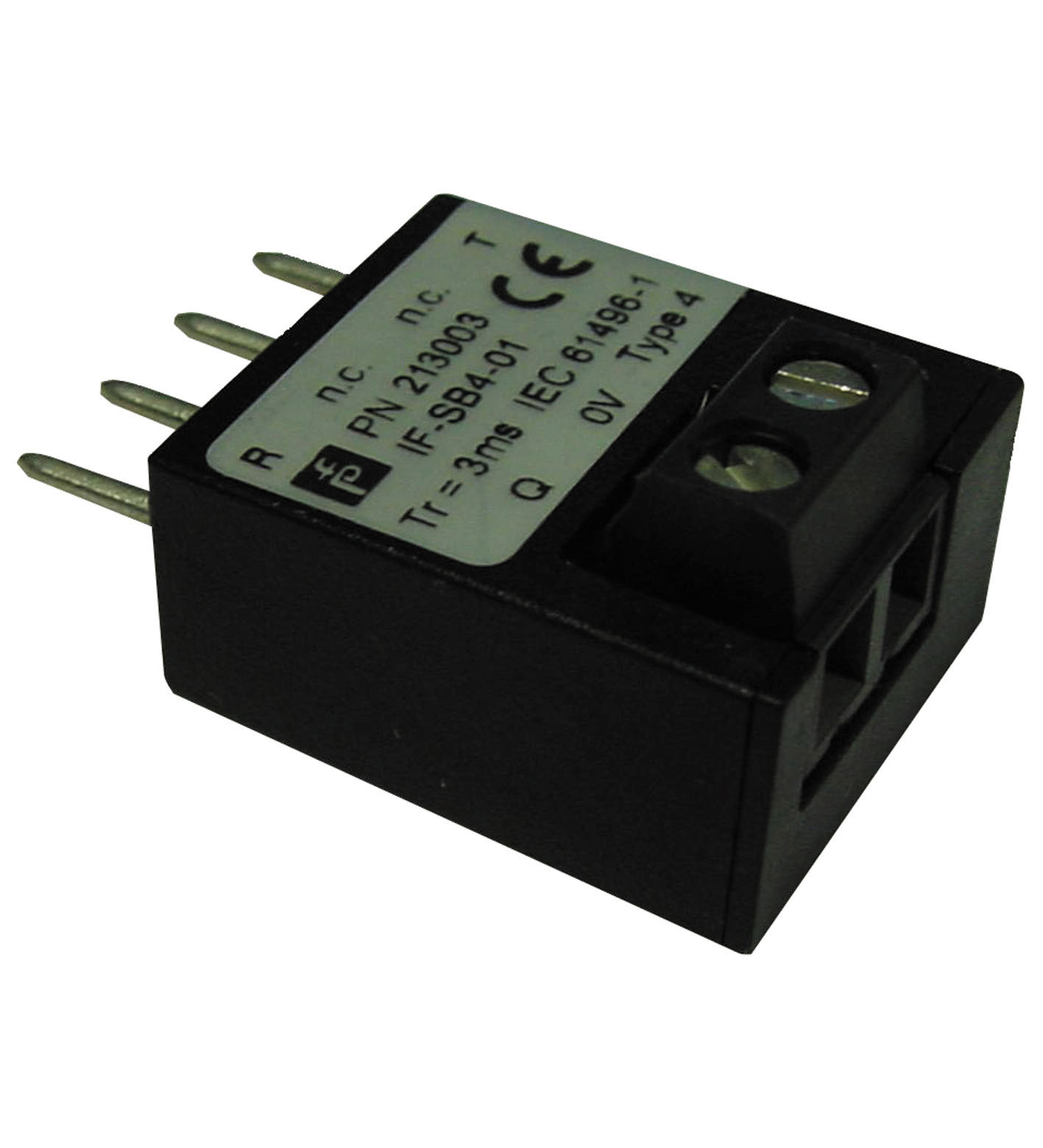

IF-SB4-01

Safety control unit module. Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Connection: screw terminals , Cable cross-section 0.2 ... 1.5 mm². Safety In...

Safety control unit module. Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Connection: screw terminals , Cable cross-section 0.2 ... 1.5 mm². Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. MTTFd: 100 a. Mission Time (TM): 20 a. PFHd: 0.62 E-9. Type: 4. Input type: PNP OSSD signals from photoelectric safety sensors. Actuating voltage: ON: 24 V DC + 20 %/- 30 %; OFF: < 1 V. Activation current: max. 15 mA. Signal output: on SB4 modules 4CP or 4C. Switching current: min. 7.5 mA. Response time: 3 ms. Functional safety: ISO 13849-1. Product standard: EN 61496-1. CE conformity: CE. TÜV approval: TÜV SÜD. NRTL approval: cNRTLus. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP20. Connection: screw terminals , Cable cross-section 0.2 ... 1.5 mm2. Material: . HousingABS: . Housing: ABS. Mass: approx. 10 g. Dimensions: . Height15.3 mmWidth20 mmDepth29.2 mm: . Height: 15.3 mm. Width: 20 mm. Depth: 29.2 mm. Ordering information: For the connection are always two IF-SB4-01 is required

Brand	Pepperl Fuchs
Lifecycle status	active
