Pepperl Fuchs

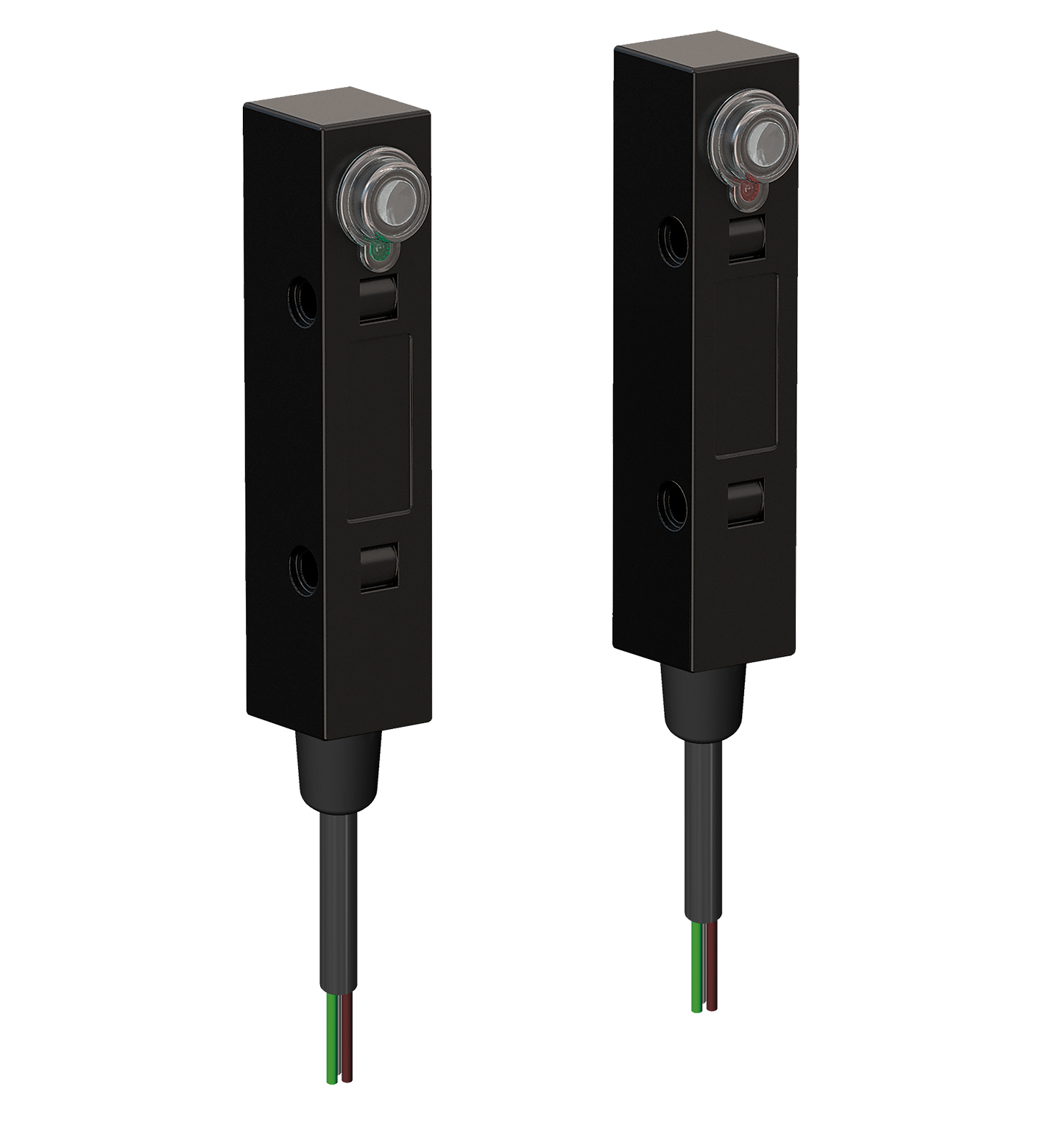

INNO-PRO-10M-OSE-13m

Safety thru-beam sensor. Indicator LED in the viewing window, OSE Output, Not sensitive to ambient light, High degree of protection (IP67), fully encapsulated, Small size, Function: Secure, Sensor principle: Thru-beam sensor, Operating voltage: 10 ... 30 V DC, Output type: OSE, Signal output: max. 30 ... 40 mA, Connection: 13 m fixed cable. Emitter: INNO-PRO-T. Receiver: INNO-PRO-R. Effective detection range: 1 ... 10 m. Threshold detection range: 14 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 850 nm. Safety type according to IEC/EN 61496: 4. Marking: CE. Diameter of the light spot: approx. 1.4 m at a distance of 10 m. Opening angle: ± 4 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: Receiver: LED red. Function indicator: emitter LED red: lit when the light beam is interrupted LED green: lights up when light beam is free. Stability alarm indicator: Emitter: flashing red/green. Operating voltage: 10 ... 30 V DC. Operating current: Emitter: typ. 20 mA Receiver: typ. 10 mA. Power consumption: . Output type: OSE. Switching type: light-on. Signal output: max. 30 ... 40 mA. Short-circuit-proof: yes. Energized/De-energized delay: typ. 100 ms. Functional safety: ISO 13849-1 , Cat. 2 PL d. Product standard: EN 61000-6-2, EN 61000-6-3 , EN 12978. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Relative humidity: max. 95 %, not condensing. Degree of protection: IP67 according to EN 60529. Connection: 13 m fixed cable. Material: . HousingABS impact resistant , V0 according UL94: . Housing: ABS impact resistant , V0 according UL94. Mass: 360 g. Dimensions: . Height48 mmWidth12 mmDepth12 mm: . Height: 48 mm. Width: 12 mm. Depth: 12 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
