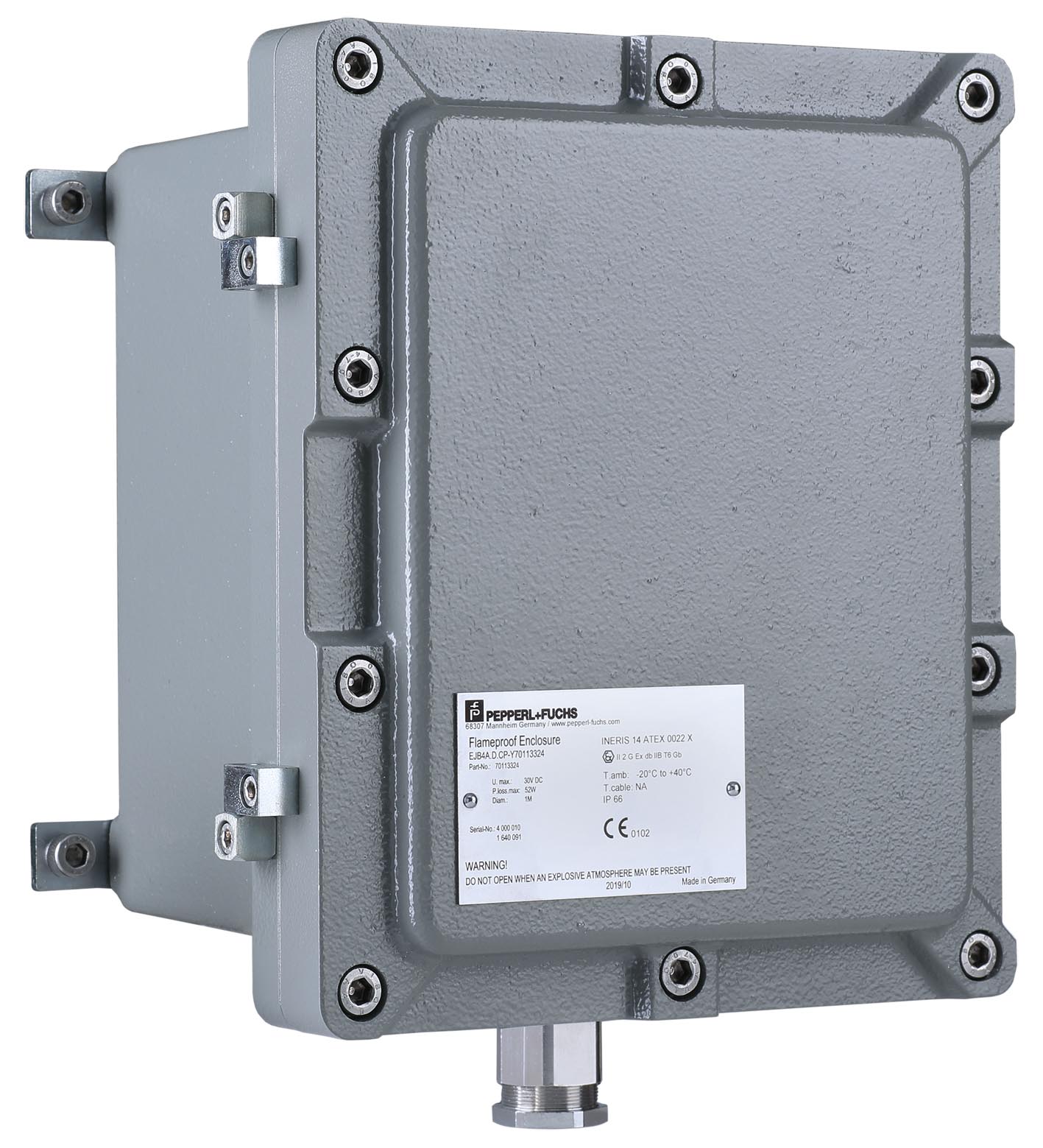

INX360D-F99-I2E2-V15-Ex
Inclination sensor. Explosion-proof housing, Installation in Zone 1 and Zone 21, E1-Type approval, Measuring range 0 ... 360°, Analog output 4 mA ... 20 mA, Evaluation limits can be taught-in, 2 progr...
Inclination sensor. Explosion-proof housing, Installation in Zone 1 and Zone 21, E1-Type approval, Measuring range 0 ... 360°, Analog output 4 mA ... 20 mA, Evaluation limits can be taught-in, 2 programmable switch outputs, High shock resistance, Increased noise immunity 100 V/m. Type: Inclination sensor, 1-axis. Measuring range: 0 ... 360 °. Absolute accuracy: ≤ ± 0.5 °. Response delay: ≤ 20 ms. Resolution: ≤ 0.1 °. Repeat accuracy: ≤ ± 0.1 °. Temperature influence: ≤ 0.027 °/K. MTTFd: 300 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED, green. Teach-in indicator: 2 LEDs yellow (switching status), flashing. Button: 2 push-buttons ( Switch points programming , Evaluation range programming ). Switching state: 2 yellow LEDs: Switching status (each output). Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 25 mA. Time delay before availability: ≤ 200 ms. Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected. Operating current: ≤ 100 mA. Voltage drop: ≤ 3 V. Output type: 1 current output 4 ... 20 mA. Load resistor: 0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V. Standard conformity: . Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Shock and impact resistance: 100 g according to DIN EN 60068-2-27. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. IECEx approval: IECEx INE 14.0029X. ATEX approval: INERIS 14 ATEX 0022X Device type: EJB4A.D.CP-INX360D-F99-I2E2. Marking II 2 GD Ex db IIB+H2 T6 Gb, II 2 GD Ex tb IIIC T85 °C Db: . Marking: II 2 GD Ex db IIB+H2 T6 Gb, II 2 GD Ex tb IIIC T85 °C Db. E1 Type approval: 10R-04. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Connection type: Connection terminals, max. conductor cross-section 2.5 mm2. Conductor cross section: 0.14 ... 2.5 mm2. Cable gland: for cable diameter 3 ... 8.5 mm. Cover fixing: stainless steel socket cap head screws. ScrewsM6: . Screws: M6. Housing material: Seawater-resistant aluminum. Finishepoxy coated RAL 7005 (grey)Flamepath greaseGreasil MS4 or NEVER SEEZ Marine Grade: . Finish: epoxy coated RAL 7005 (grey). Flamepath grease: Greasil MS4 or NEVER SEEZ Marine Grade. Degree of protection: IP66. Mass: 9 kg. Dimensions: . Height175 mmWidth226 mmLength303 mm: . Height: 175 mm. Width: 226 mm. Length: 303 mm. Switching output 1: -30 ° ... 30 °. Switching output 2: -30 ° ... 30 °. Analog output: -45 ° ... 45 °
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
