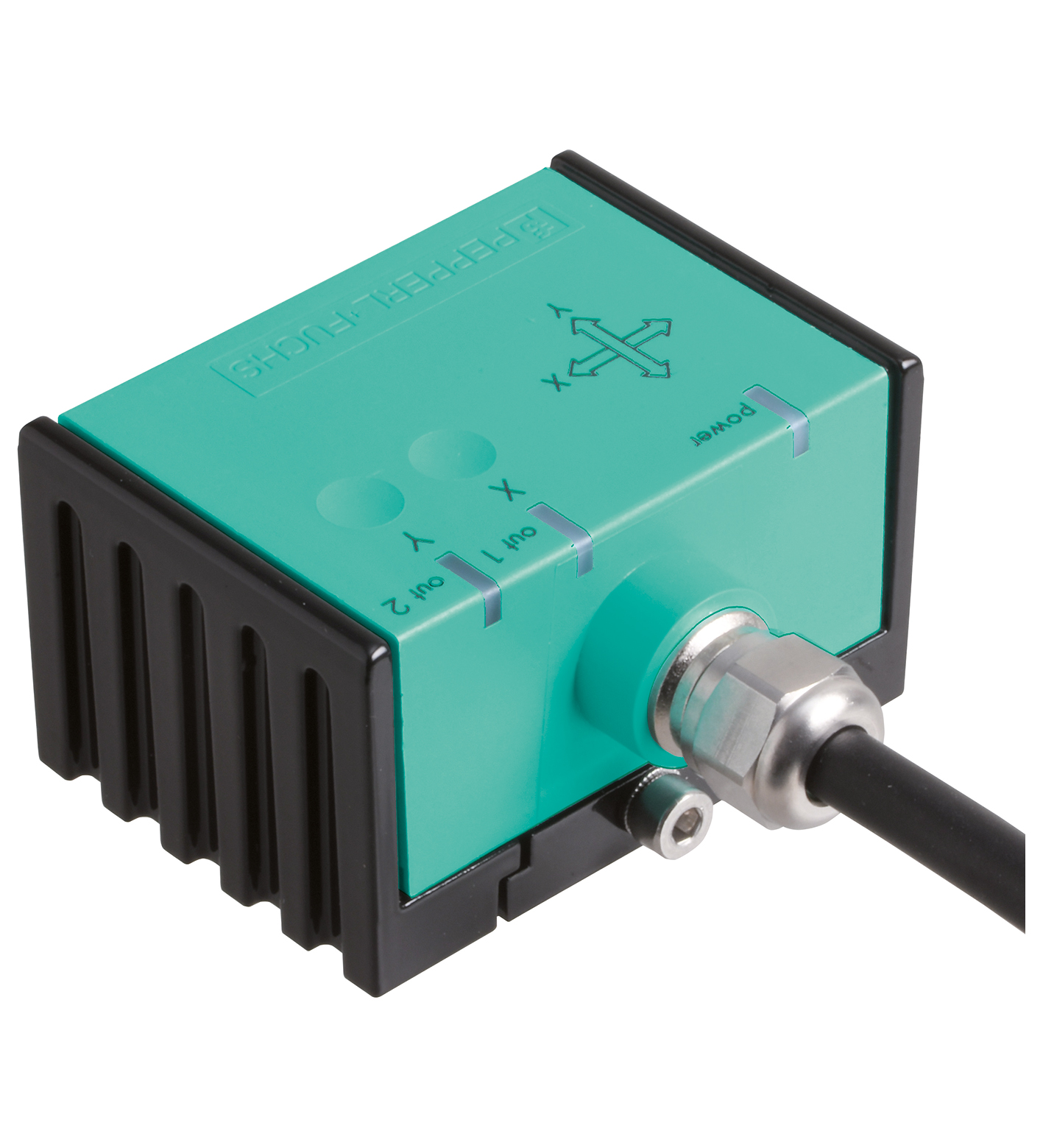

INY030D-F99-2I2E2-5M

Inclination sensor. E1-Type approval, Measuring range -15° ... +15°, Analog output 4 mA ... 20 mA, Fixed evaluation limits , High shock resistance, Increased noise immunity 100 V/m. Type: Inclination...

Inclination sensor. E1-Type approval, Measuring range -15° ... +15°, Analog output 4 mA ... 20 mA, Fixed evaluation limits , High shock resistance, Increased noise immunity 100 V/m. Type: Inclination sensor, 2-axis. Measuring range: -15 ... 15 °. Absolute accuracy: ≤ ± 0.2 °. Response delay: ≤ 25 ms. Resolution: ≤ 0.01 °. Repeat accuracy: ≤ ± 0.02 °. Temperature influence: ≤ 0.004 °/K. MTTFd: 304 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED, green. Switching state: 2 yellow LEDs: Switching status (each output). Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 25 mA. Time delay before availability: ≤ 200 ms. Output type: 2 switch outputs PNP, NO , reverse polarity protected , short-circuit protected. Operating current: ≤ 100 mA. Voltage drop: ≤ 3 V. Output type: 2 current outputs 4 ... 20 mA (one output for each axis). Load resistor: 0 ... 200 Ω at UB = 10 ... 18 V 0 ... 500 Ω at UB = 18 ... 30 V. Standard conformity: . Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Shock and impact resistance: 100 g according to DIN EN 60068-2-27. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed, Class 2 Power Source. E1 Type approval: 10R-04. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: 5 m, PUR cable 7 x 0.5 mm2. Housing material: PA. Degree of protection: IP68 / IP69K. Mass: 240 g. Dimensions: . Height37 mmWidth45 mmLength65 mm: . Height: 37 mm. Width: 45 mm. Length: 65 mm. Analog output (X): -15 ° ... 15 °. Analog output (Y): -15 ° ... 15 °. Switching output (X): -15 ° ... 15 °. Switching output (Y): -15 ° ... 15 °

Brand	Pepperl Fuchs
Lifecycle status	active
