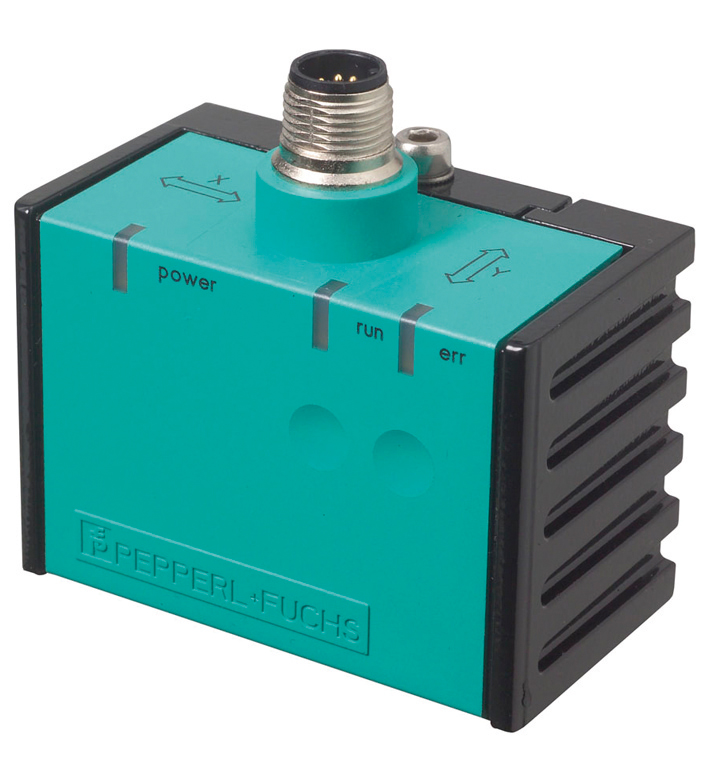

INY030D-F99-B16-V15

Inclination sensor. E1-Type approval, High shock resistance, Extended temperature range <br>-40 ... +85 °C, CANopen interface, Measuring range -15° ... +15°, Increased noise immunity 100 V/m. Type: In...

Inclination sensor. E1-Type approval, High shock resistance, Extended temperature range <br>-40 ... +85 °C, CANopen interface, Measuring range -15° ... +15°, Increased noise immunity 100 V/m. Type: Inclination sensor, 2-axis. Measuring range: -15 ... 15 °. Absolute accuracy: ≤ ± 0.2 °. Response delay: ≤ 25 ms. Resolution: ≤ 0.01 °. Repeat accuracy: ≤ ± 0.02 °. Temperature influence: ≤ 0.004 °/K. MTTFd: 300 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED, green. Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 50 mA. Time delay before availability: ≤ 2.5 s. Interface type: CANopen. Device profile: CiA410, Ver. 1.2. Data output code: binary code. Node ID: 1 ... 127 , programmable. Transfer rate: 10 ... 1000 kBit/s , programmable. Termination: external. Cycle time: ≥ 20 ms. Standard conformity: . Shock and impact resistance100 g according to DIN EN 60068-2-27StandardsEN 60947-5-2:2007 IEC 60947-5-2:2007: . Shock and impact resistance: 100 g according to DIN EN 60068-2-27. Standards: EN 60947-5-2:2007 IEC 60947-5-2:2007. UL approval: cULus Listed, Class 2 Power Source. E1 Type approval: 10R-04. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: 5-pin, M12 x 1 connector. Housing material: PA. Degree of protection: IP68 / IP69K. Mass: 240 g. Dimensions: . Height37 mmWidth45 mmLength65 mm: . Height: 37 mm. Width: 45 mm. Length: 65 mm. Node ID: 1. Transfer rate: 250 kBit/s

Brand	Pepperl Fuchs
Lifecycle status	active
