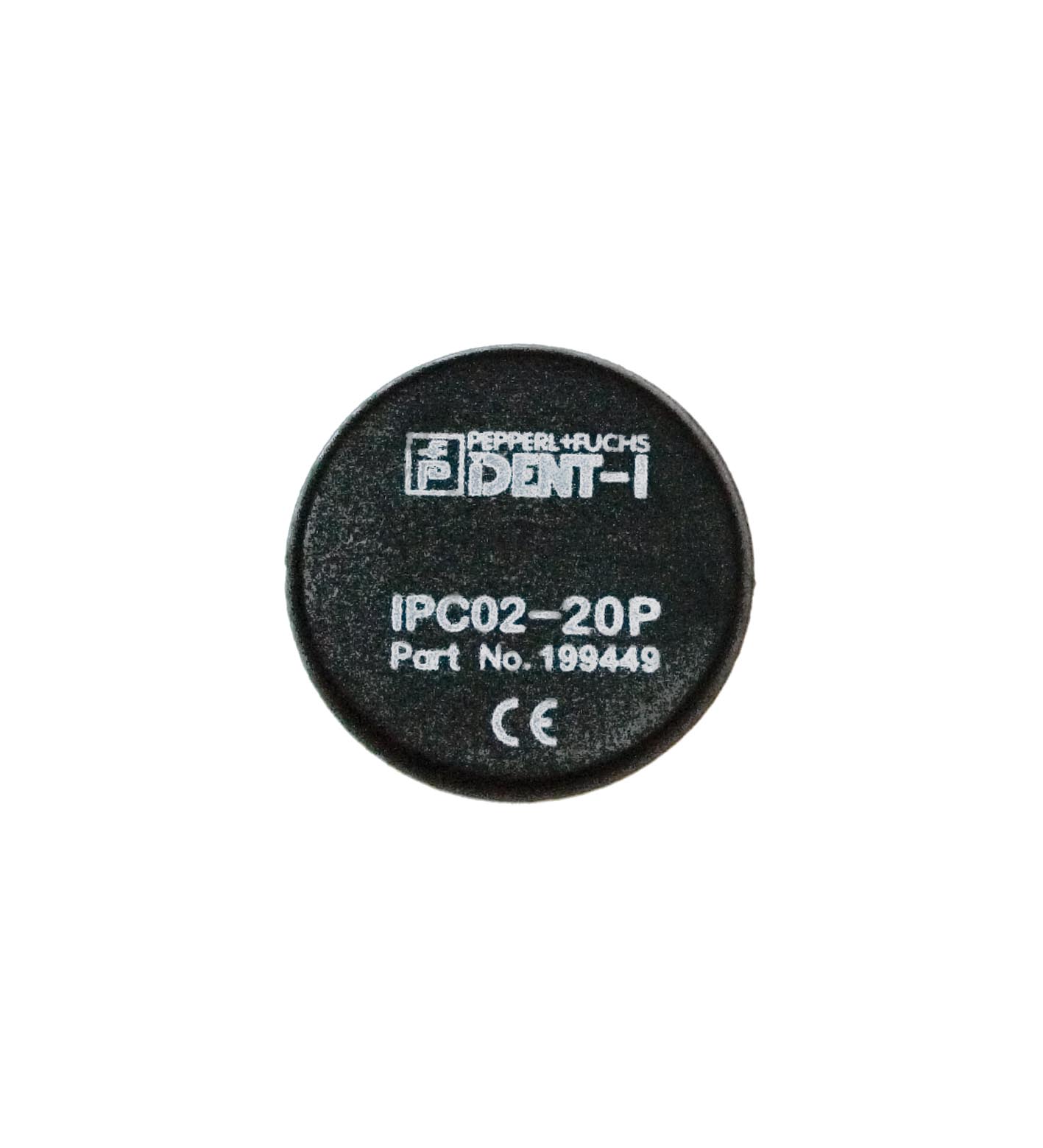

IPC02-20P

RFID Transponder. Code carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4200 Unique (EM Microelectronic). Read cycles: unlimited. Data retention period: > 10 years. Radio e...

RFID Transponder. Code carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4200 Unique (EM Microelectronic). Read cycles: unlimited. Data retention period: > 10 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F). Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Degree of protection: IP67 / IP68 / IP69k. Material: . HousingPC (Polycarbonate)Encapsulation compoundEpoxy: . Housing: PC (Polycarbonate). Encapsulation compound: Epoxy. Installation: . In airyes: . In air: yes. Dimensions: . Height2.8 mmHeight tolerance± 0.2 mmDiameter19.8 mmDiameter tolerance± 0.2 mm: . Height: 2.8 mm. Height tolerance: ± 0.2 mm. Diameter: 19.8 mm. Diameter tolerance: ± 0.2 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
