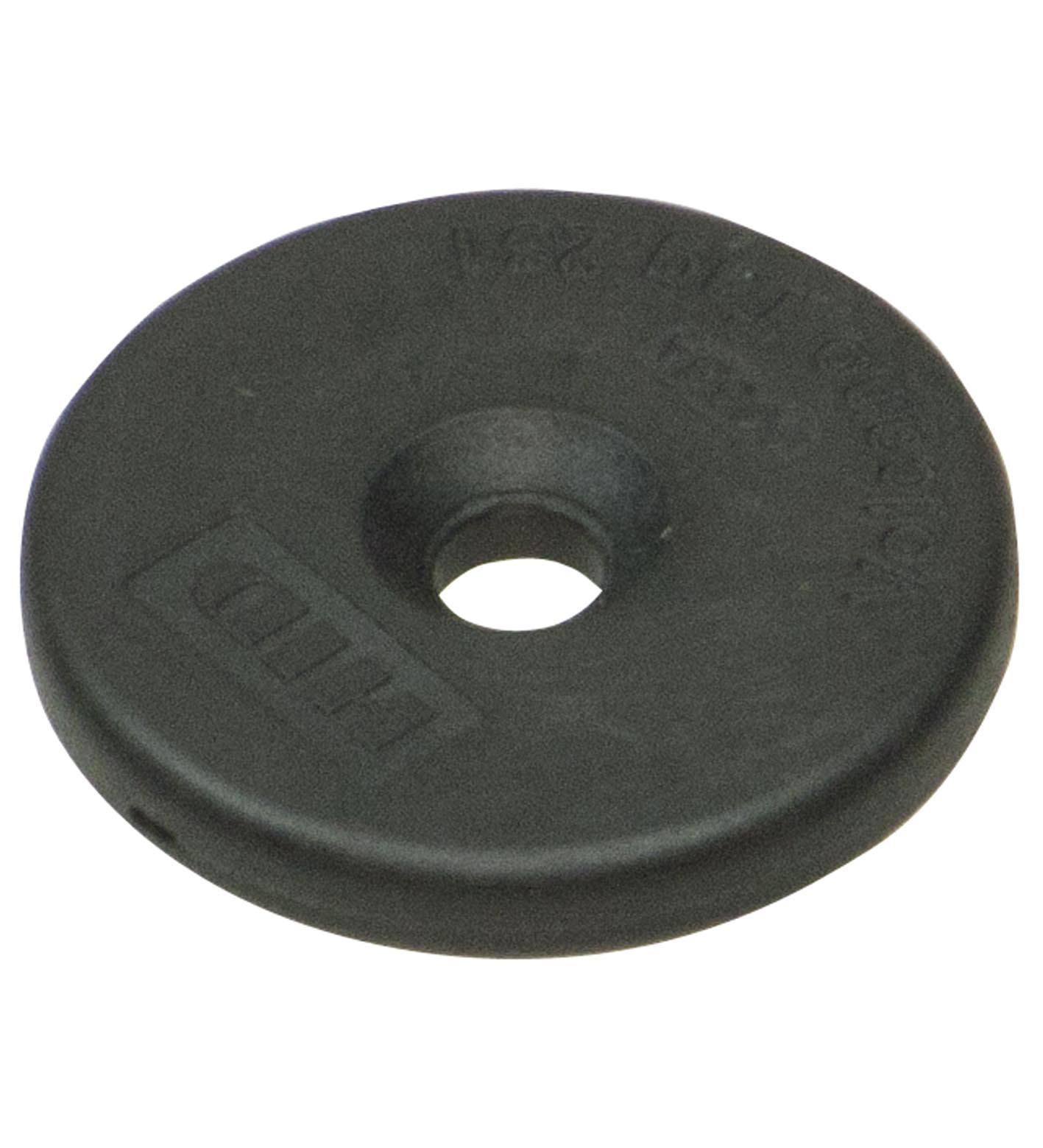

IPC02-26-T6

RFID Transponder. Code carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4102 Unique (EM Microelectronic). Read cycles: unlimited. Data retention period: > 10 years. Radio e...

RFID Transponder. Code carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4102 Unique (EM Microelectronic). Read cycles: unlimited. Data retention period: > 10 years. Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F) 20 ... 160 °C (68 ... 320 °F) for 100 x 5 minutes with transposition every 30 seconds. Storage temperature: -25 ... 140 °C (-13 ... 284 °F) for 1000 hours200 °C (392 °F) for 5 x 35 minutes. Shock and impact resistance: Shock: 40 g, 18 ms in 6 spatial axes 2000 x in accordance with IEC 68-2-29Vibration: 10 g, 10 ... 2000 Hz, 2.5 hours in 3 spatial axes in accordance with IEC 68-2-6. Degree of protection: IP68 (24 hours in water 1 m deep). Material: . HousingPA: . Housing: PA. Installation: . On metalyesIn airyes: . On metal: yes. In air: yes. Mass: 3.6 g. Dimensions: . Height4 mmDiameter26 mm: . Height: 4 mm. Diameter: 26 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
