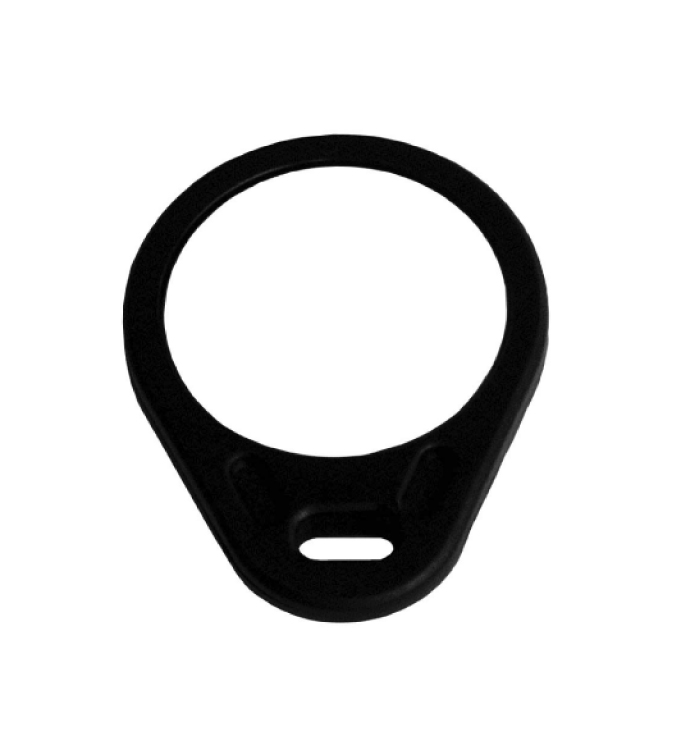

IPC03-20K1

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Da...

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 90 °C (-40 ... 194 °F). Degree of protection: IP67. Material: . HousingPC (Polycarbonate): . Housing: PC (Polycarbonate). Installation: . In airyes: . In air: yes. Dimensions: . Height4.5 mmWidth31 mmLength40 mmDiameter31 mm: . Height: 4.5 mm. Width: 31 mm. Length: 40 mm. Diameter: 31 mm. Construction type: Key fob

Brand	Pepperl Fuchs
Lifecycle status	active
