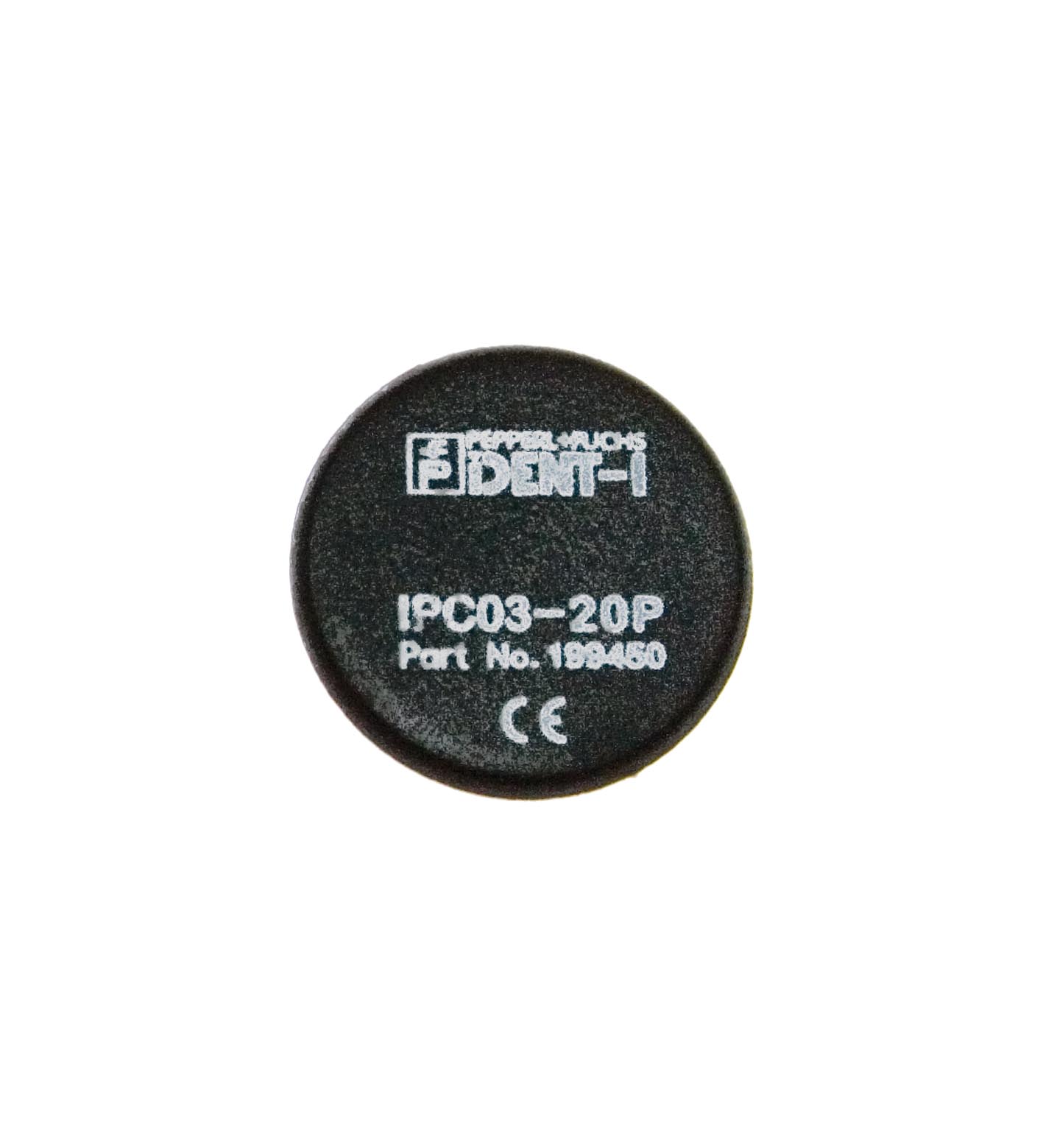

IPC03-20P

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Da...

RFID Transponder. Data carrier. Operating frequency: 125 kHz. Transfer rate: 2 kBit/s. Chip Type: EM4450 Titan (EM Microelectronic). EEPROM: 928 Bit. Read cycles: unlimited. Write cycles: > 100000. Data retention period: 10 years at 55 °C (131 °F). Radio equipment: . Directive 2014/53/EUEN 300330: . Directive 2014/53/EU: EN 300330. RoHS: . Directive 2011/65/EU (RoHS)IEC/EN 63000: . Directive 2011/65/EU (RoHS): IEC/EN 63000. Degree of protection: EN 60529. RFID: ISO/IEC 18000-2. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F). Storage temperature: -20 ... 85 °C (-4 ... 185 °F). Degree of protection: IP67 / IP68 / IP69k. Material: . HousingPC (Polycarbonate)Encapsulation compoundEpoxy: . Housing: PC (Polycarbonate). Encapsulation compound: Epoxy. Installation: . On metalyesIn airyes: . On metal: yes. In air: yes. Dimensions: . Height2.8 mmHeight tolerance± 0.2 mmDiameter19.8 mmDiameter tolerance± 0.2 mm: . Height: 2.8 mm. Height tolerance: ± 0.2 mm. Diameter: 19.8 mm. Diameter tolerance: ± 0.2 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
